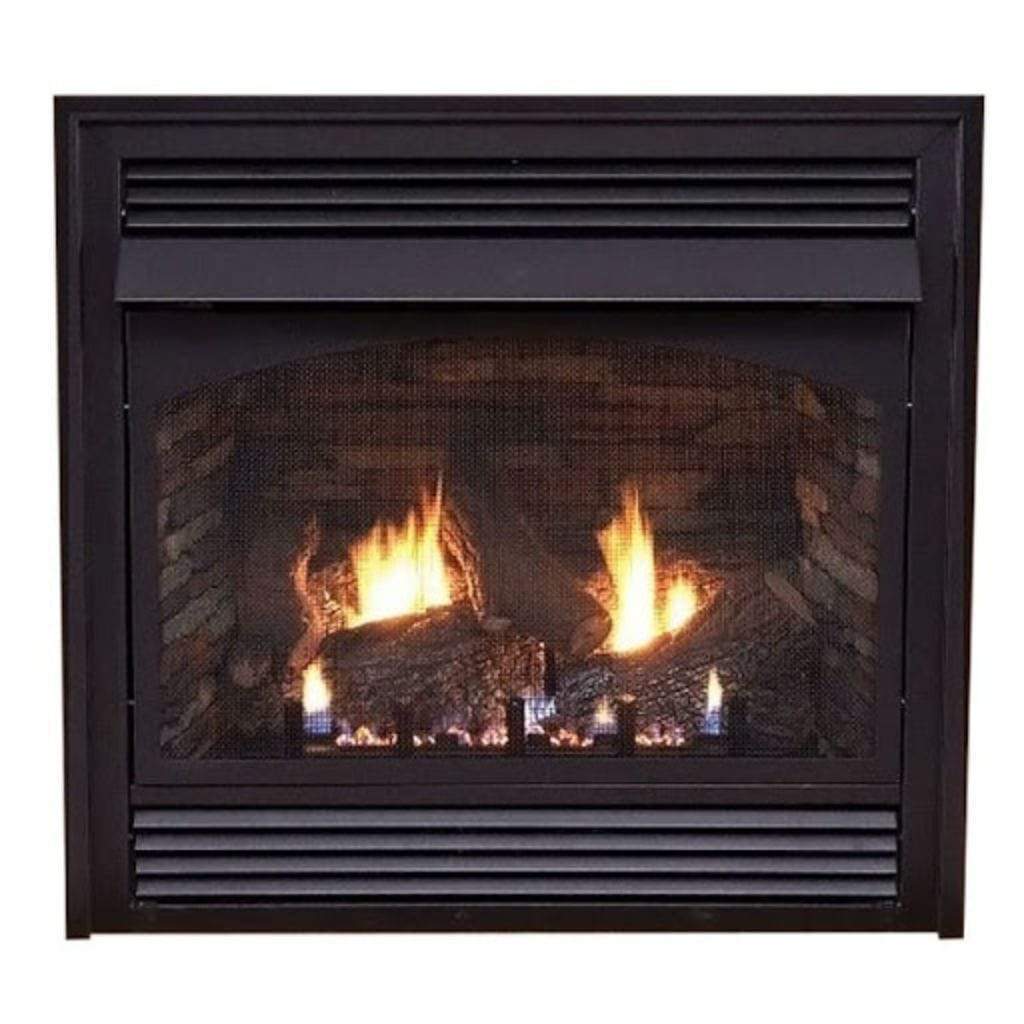

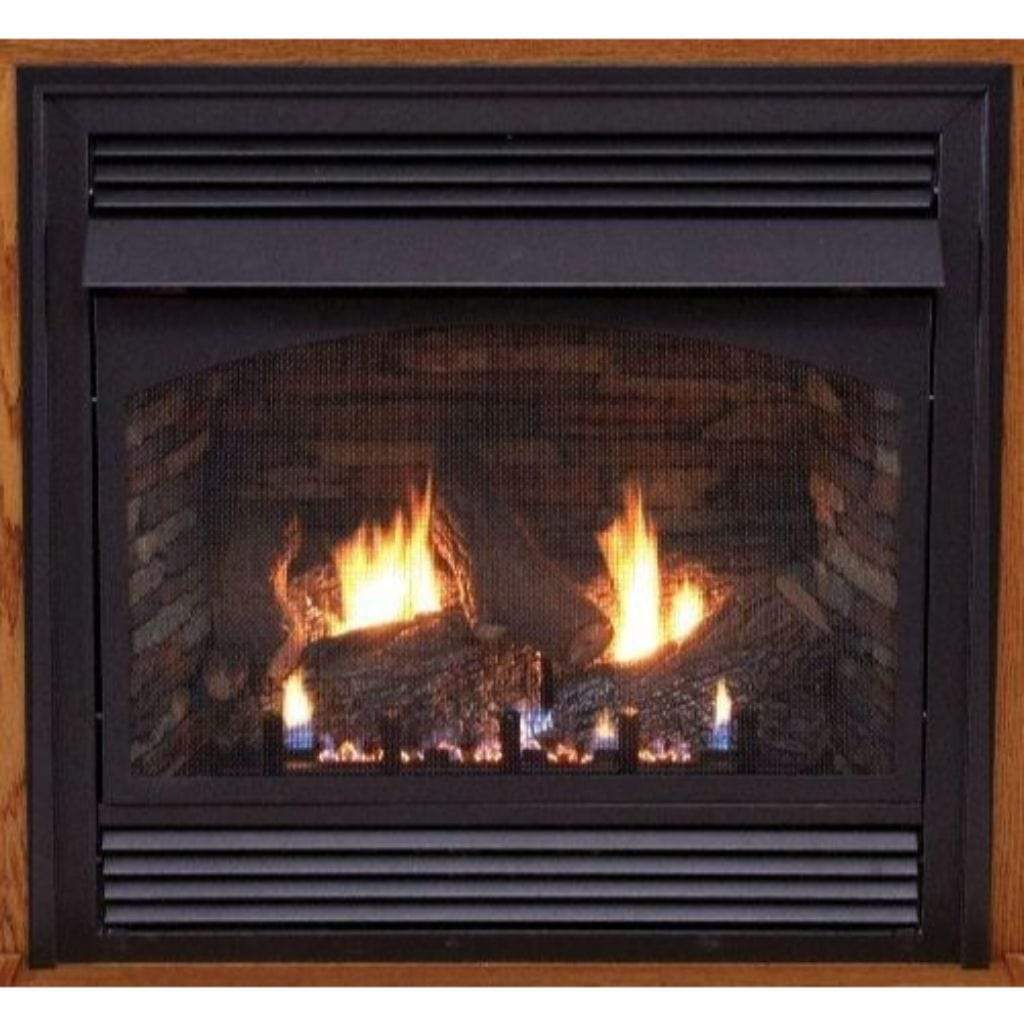

Empire 32" Vail Vent-Free Premium Fireplace with Slope Glaze Burner - IP Control

OVERVIEW

A Vent-Free system uses room air for combustion and delivers 99.9% of the available heat energy directly to the room. Vent-Free systems have an unmatched safety record, thanks in part to their clean-burning technology and their Oxygen Depletion Sensor, which instantly shuts of the valve if oxygen in the room drops to an unsafe level. Because no venting is required, Vent-Free systems offer more installation options.

Vent-Free systems are limited to 40,000 Btu and must be operated as supplemental heating sources in conjunction with a central furnace that circulates air.

Advantages:

• Unmatched efficiency – 99.9%
• Offers the most installation versatility
• Usually less expensive to buy and to install
• Can operate with a remote or thermostat
• Most systems can provide live-saving heat during a winter power outage

Vail Vent-Free Fireplaces

At 99.9 percent efficient, the Vent-Free Vail Fireplace delivers more heat for your energy dollars – 32,000 Btu for the Vail 32 and 36,000 Btu for the Vail 36. Ceramic glazed pellets in the burner tumble and swirl the gas to produce a natural flickering flame.

The Vail 24 delivers the beauty of hand-painted ceramic fiber logs and natural flickering flames to dens, halls, and even bedrooms.

The Vail 26 Special Edition is the American-made fireplace system that ships complete in one package, and is also offered as a separate fireplace – perfect for built-in and custom mantel applications.

Vail Premium 32 and 36

The Vail 32 and 36 Premium Vent-Free Fireplaces feature hem-bent seams that provide a better seal while elimi­­nating dozens of screws and fasteners. The result is a lighter, more rigid box that’s easier to install.

Choose one of two available log sets – Ceramic Fiber or Refractory. Both are hand painted for exceptional realism and exquisite detail.

Choose one of two liners – aged brick or stacked limestone to complement your decor.

The matte black arched screen front perfectly frames the logs and optional brick liner to create an exceptionally beautiful fireplace. All Vail fireplaces come with matte black slat louvers and hood.

FEATURES

• Opening: 22 7/8 H 31 W

• Framing: 36 1/4 H x 39 1/2 W x 17 7/8 D
• Pallet Quality: 4
• Includes: Outer Frame, Hood, and Louvers in Matte Black
• Requires: Log Set
• Max BTU Input: 32,000
• Min BTU Output: 22,000
• Intermittent Pilot with On/Off Switch Includes AC Power Adapter (120VAC) with battery backup (switches to battery during power outage)
• Vent free units do not require any venting products
• 5-year limited warranty

*Please Note: Brick Liner and Logs are shown in image, however not included in this product.

CA Residents: See Prop 65 WARNING.

OPTIONS AND ACCESSORIES

Click to see Log Set (Required)

	Ceramic Fiber Log Set 5 pieces 24 in
	Sassafras Refractory Log Set 6 pieces 24 in

Click to see Liner Kits

	Aged Brick Liner Ceramic fiber liner Realistic brown bricks with charcoal mortar Smoked accents
	Stacked Fieldstone Liner Gives your firebox the look of a traditional masonry fireplace Light-colored bricks with realistic smoke patterns
	Black Porcelain Gives your firebox a contemporary modern look Reflective black metal design enhances and amplifies the appearance of flames
	Traditional Brick Color: Tan Stacked Optional accessory Ceramic fiber liner Realistic stacked brick pattern
	Banded Brick Realistic dark bricks with charcoal mortar Accent band of diagonal bricks

Click to see Louvers Options

Decorative Mission Louvers Features Decorative mission louvers Available with matte black and hammered pewter finish

Decorative Arch Louvers Features Decorative arch louvers Available with matte black and hammered pewter finish

Click to see Decorative Door Options

Note: Arch Doors require Arch Hinge Door Frame VFY32SBL

	Mission Arch Door Set Matte Black Standard mission arch doors Finish: Matte Black These fireplace doors are made by the manufacturer of the fireplace for specific units They are not compatible with other units
	Mission Arch Door Set - Hammered Pewter Standard mission arch doors Finish: Hammered Pewter These fireplace doors are made by the manufacturer of the fireplace for specific units They are not compatible with other units
	Arch Door Set - Matte Black Standard arch doors Finish: Black These fireplace doors are made by the manufacturer of the fireplace for specific units They are not compatible with other units
	Arch Door Set - Hammered Pewter Standard arch doors Finish: Hammered Pewter These fireplace doors are made by the manufacturer of the fireplace for specific units They are not compatible with other units
	Arch Door Frame - Matte Black Model #: VFY32SBL Arched door Frame. with hinges Finish: Black These fireplace doors are made by the manufacturer of the fireplace for specific units They are not compatible with other units

Click to see Outer Frame & Bottom Trim

	Steel Frame, Hammered Pewter 3-piece outer frame Transitions appliance to adjoining surface
	Firebox and Fireplace Bottom Trim Kit Bottom trim kit for fireplaces and fireboxes Available in hammered pewter

Variable Remote for IP (Includes Stepper motor, Thermostat Remote, and Wiring) Remote Kit for Natural Gas / Propane Model #: RVKN - Natural Gas ; RVKP - Propane Type: Remote Kit Variable Flame Height Kit

	Traditional Log and Ember Bed Kit Includes: six (6) burnt log pieces, white ash, and lava rock *This kit is not for use atop a burner.
	Platinum Glowing Fireplace Embers Platinum glowing fireplace embers Can be placed directly on burner Includes approximately 1 gram of ember material
	Automatic Single-Speed Fireplace Blower Automatic single-speed blower Improves fireplace efficiency and hot air distribution
	Flexible Stainless Steel Gas Line Stainless steel flexible gas line 24" length Ideal for the connection of a variety of gas appliances
	Extended Black Hood Fireplace hoods protect your surround, hearth and mantel from the intense heat that a wood burning fireplace can generate. Type: Hood Finish: Matte black Use with 32" & 42" fireboxes and fireplaces Extended hoods are used for installations with extended empire mantels.
	Cabinet Mantels with Base Color: Oak, Dark Oak, Unfinished Hardwood, Cherry, White Product Dimensions: 37 3/4" W x 38 1/2" H x 12 1/2" D(EMF22DO, EMF22C) Built-in base Compact design Traditional styling Five finishes available Cabinet Mantels require 3-piece frame (a black frame is included with the fireplace)

DOWNLOADS

• Vail Vent-Free Fireplace Brochure
• Vail Vent-Free Premium Fireplace 32 & 36 Manual
• Vail Aged Brick Liner Manual
• Product Architecture
