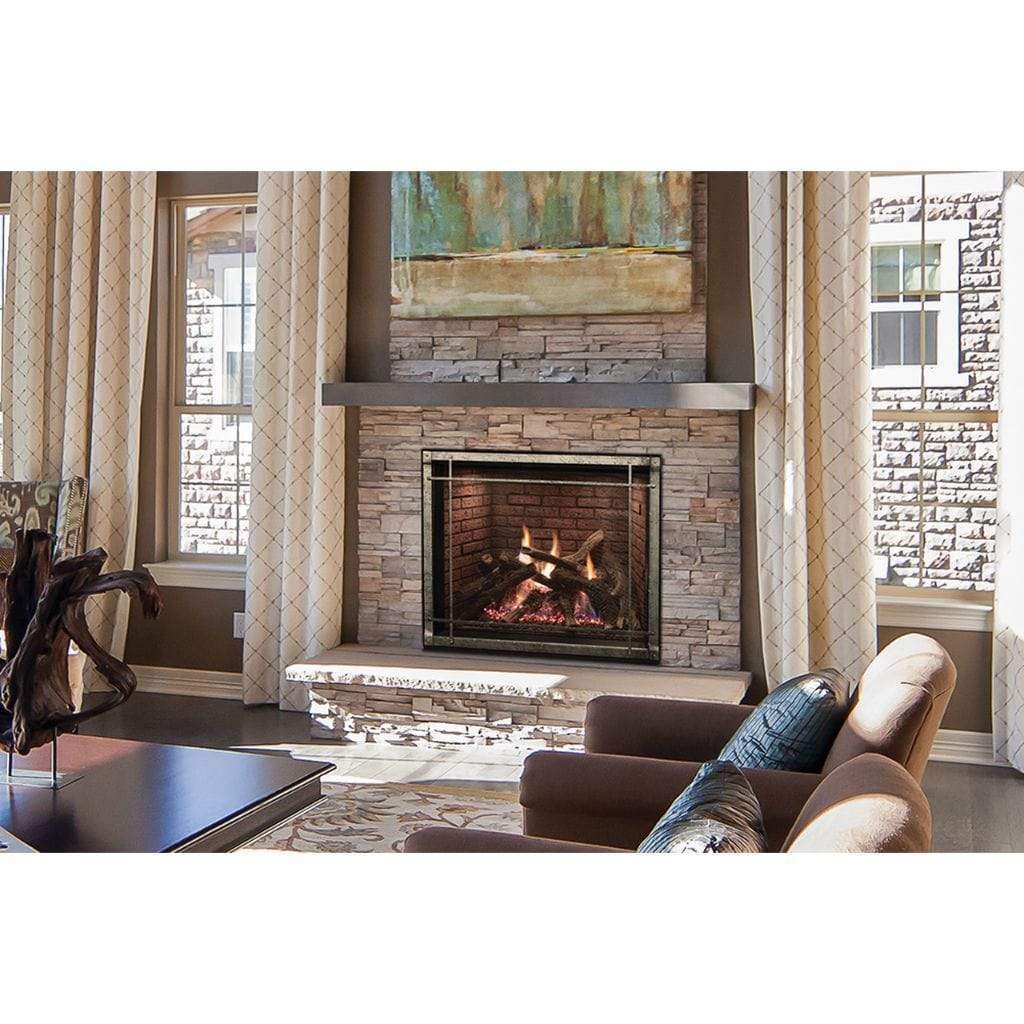

Empire 40" Rushmore Clean Face Direct Vent Fireplace

A Direct-Vent system uses two vent pipes. One draws air in from outdoors to support combustion. The other exhausts the by-products of combustion to the outside. The two vent pipes may be concentric (exhaust pipe within a larger diameter intake pipe) or co-linear (separate pipes of about the same size).

Combustion takes place inside a sealed chamber – with a glass front in the case of a fireplace. Room air circulates around the combustion chamber, often assisted by a blower, to heat the room.

A DV system is often installed along an outside wall to simplify the vent run,but can also be installed elsewhere in the home and vented through the roof.

TruFlame

With its massive log set, deep ember bed, dual burner and huge ceramic glass front, the Rushmore is one great-looking fireplace, but what you can’t see makes this fireplace even more impressive. Empire’s TruFlame Technology ensures maximum flames and ember glow with minimum emissions.

The Rushmore

With its massive log set, deep ember bed, dual burner and huge ceramic glass front, the Rushmore is one great-looking fireplace, but what you can’t see makes this fireplace even more impressive.

Empire’s TruFlame Technology ensures maximum flames and ember glow with minimum emissions. The system starts with independently controlled front and rear burners set in a large ember bed. The burners create a tall lively fire that dances and curls around the hand-painted ceramic fiber logs – generating a continuous tableau of flame shapes and light patterns.

The Rushmore's TruFlame Technology ensures maximum flames and ember glow with minimum emissions, and is offered in two sizes– 40-inch or 36-inch.

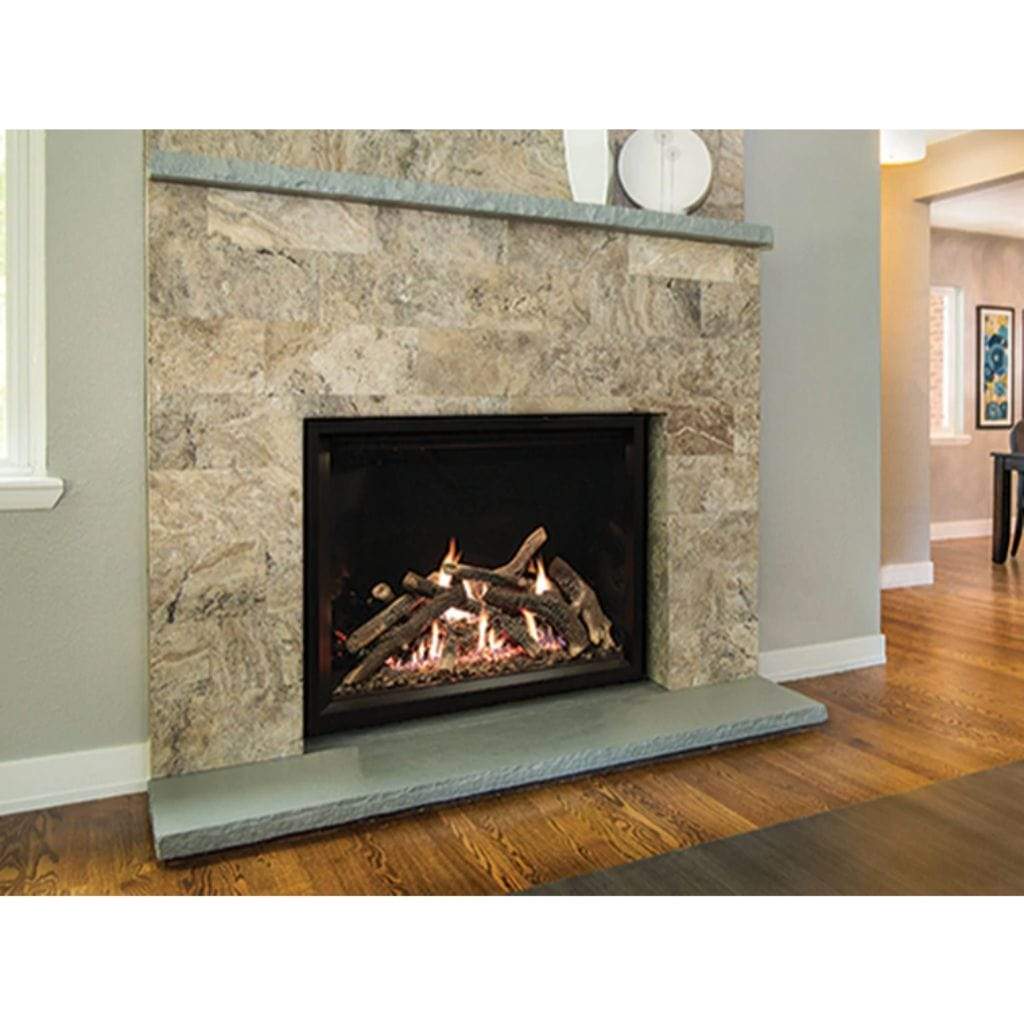

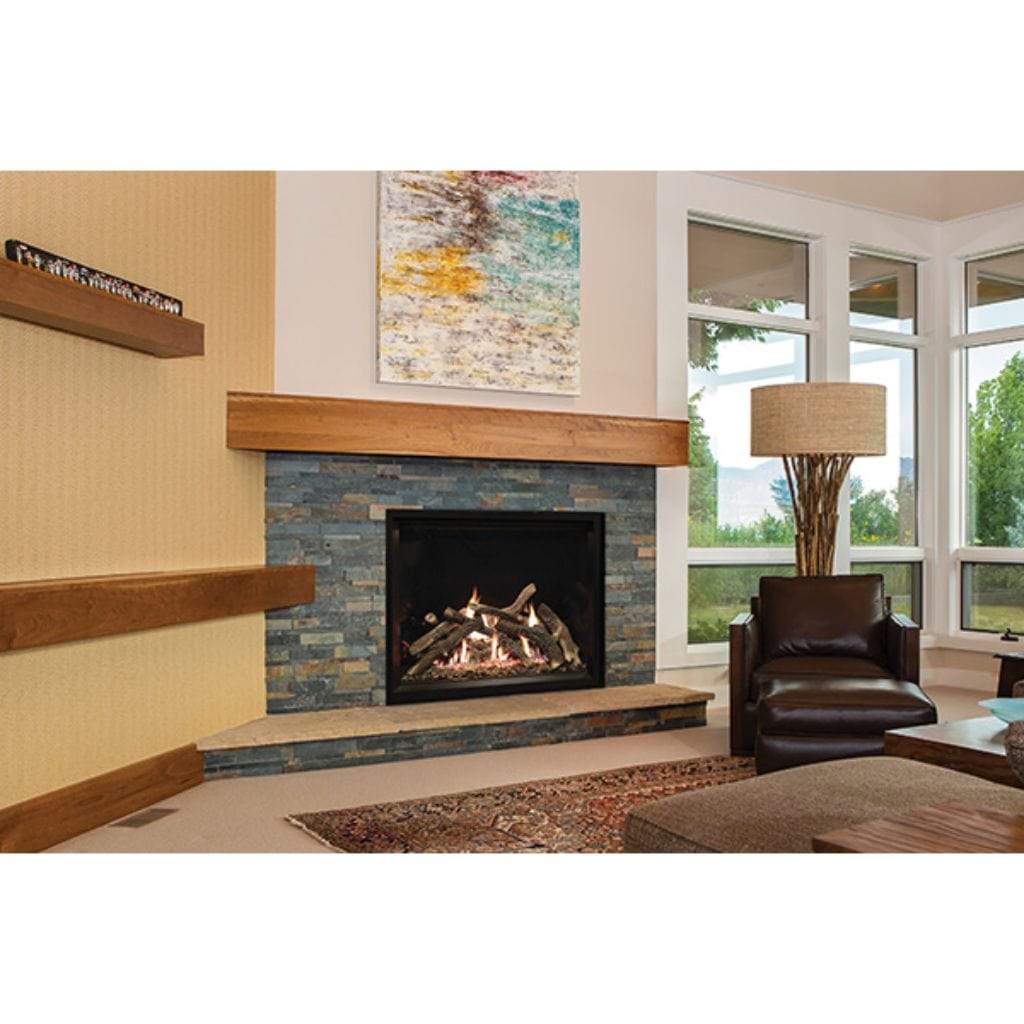

An attractive clean-face design integrates the barrier screen flush with the fireplace front – allowing you to install tile, brick, or other non-combustible materials right up to the fireplace opening for a clean, organic installation. Or choose one of the optional decorative fronts, doors, or frames to tailor your new fireplace with the look that suits your décor.

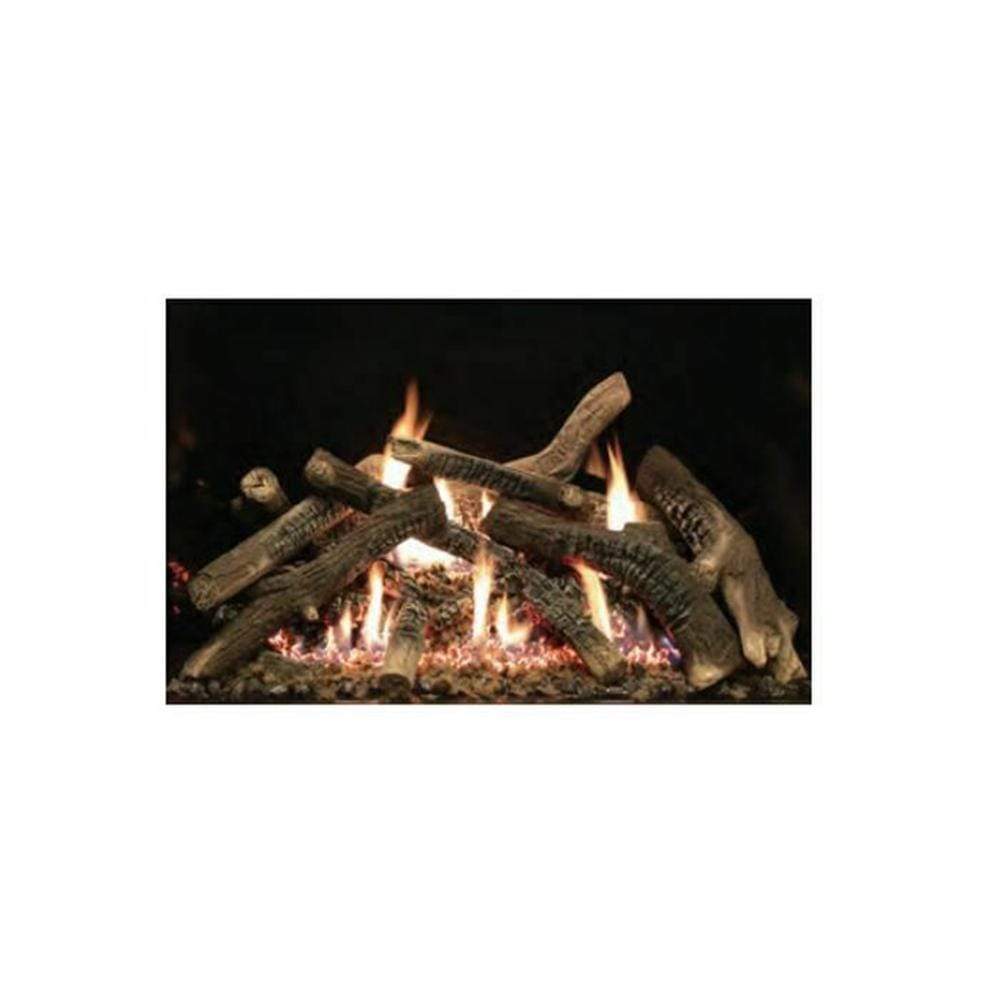

A variety of liners are available to further customize the Rushmore– including Old World Stone, Rustic Brick, or reflective Black Porcelain. Choose between the two logs sets– Traditional Charred or Driftwood. Add the available hand-forged andirons to complete the look.

Ceramic Glass: 36 x 30 3/8 inches,
Venting: 5 x 8 Top Vent Only, 12-in min. rise before horizontal
Framing: 53 1/2 H x 49 1/2 W x 24 D

Includes:

Features:

• Product Dimensions: 49 1/2" W x 53 1/2" H x 24" D
• 40" direct-vent fireplace with TruFlame technology
• Remote controls flame height, lighting, and variable-speed blower
• Maximum BTU Output: 40,000
• Min/Max Natural Gas Inlet Pressure: 4.5"/14" WC
• Min/Max Propane Gas Inlet Pressure: 10.8"/14" WC
• Actual Viewing Area: 40 7/8" W x 36 1/2" H
• Valve Type: IPI Valve

The Rushmore fireplace is available in two sizes– 40-inch or 36-inch.

CA Residents: See Prop 65 WARNING.

Options & Accessories

Liners

Logs

Forged Iron Front and Insets & Beveled Frames

Finish: Black / Distress Pewter / Oil-Rubbed Bronze

Forged Iron Frame

Forged Iron Inset - Arch / Rectangular

Beveled Frames - 1.5in, Textured Black / Brushed Nickel / Brushed Nickel

From left to right: Forged Iron in Oil-Rubbed Bronze, Forged Iron in Black, Beveled Window Frame in Nickel, Beveled Window Frame in Oil-Rubbed Bronze, Beveled Window Frame in Black.

Note: Decorative Front can be used alone, or with one of the available forged iron insets, as shown above.

Also Note: Inset Req Matching Forged Iron Frame. Above images shown Front with inset, both sold separately products.

Andirons

Double Blower

Power Vent Accessory

Empire Horizontal Power Vent Termination for use on Pro-Flame Direct Vent Fireplaces.

Model: DVKPM

Heat Management Kit

Click to see Heat Management Options

	Heat Management Kit Gravity heat management Part of the heat management system (Includes 36" Plenum and 10' Flex)
	External Forced Air Heat Management External forced air kit Part of the heat management system Requires the Empire Flex Vent Kit for Forced Air Kit
	Flex Vent Kit for Forced Air Kit Flex Vent Kit (25' Flex and Clamps) Part of the heat management system This flex vent kit is required for forced air kit

Downloads

• Download Installation Guide
• Download Brochure
• Download Architecture
• Download Home Owner's Manual
• Andirons for DVCT36, DVCT40, & DVCT50 (DCA1ABL)
• Rushmore Blower Installation (FBB21)
• Rushmore Decorative Frames (DF36CNB/DFF36FPD, DFF40CPD/DFF40RPD, DFF50FPD)
• Rushmore Glass Removal Manual
• Rushmore Black Porcelain Liner Kits
• Rushmore Ceramic Fiber Liner Kits (Rustic Brick/Old World Stone)
• Rushmore Ceramic Fiber Liner Kit (Whitewashed Herringbone Brick)
• Rushmore Decorative Doors
• Rushmore 40 Gas Conversion Instructions

• Power Vent (Horizontal Kit)
• Power Vent (Vertical Conversion Kit)
