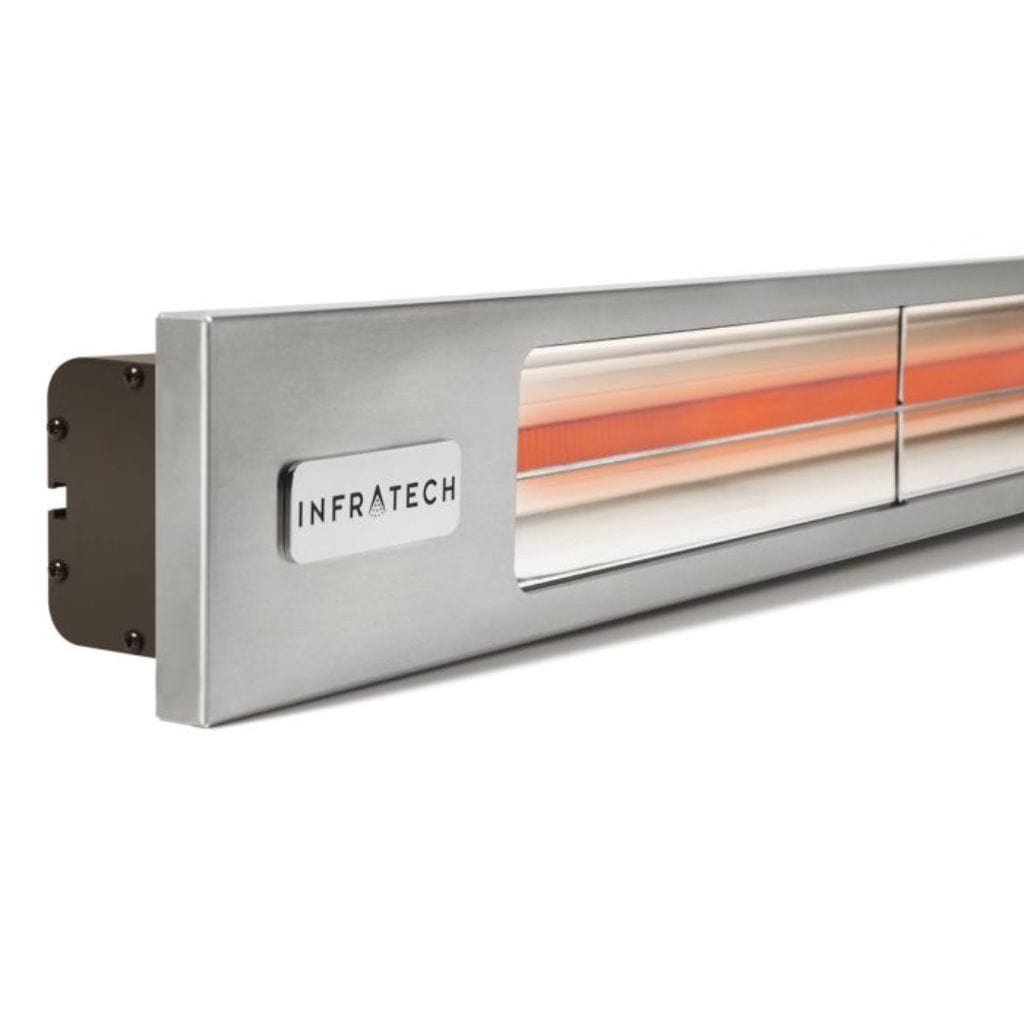

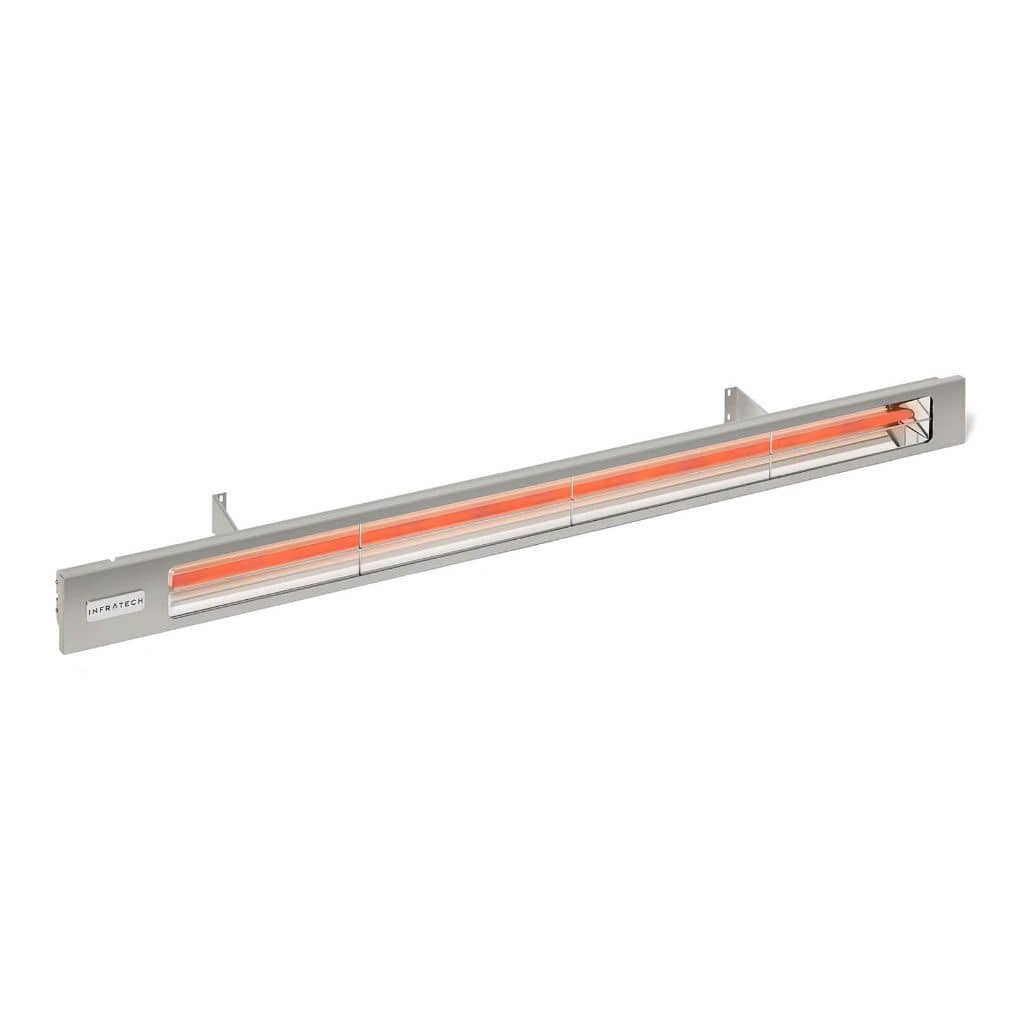

Infratech Comfort 63 1/2" 4000 Watt Slim Line Single Element Heater

With crisp, modern styling, an anodized aluminum housing, and narrow profiles, Slimline heaters virtually disappear into the surrounding décor. Our products are built to deliver comfort and convenience – which is why they’re compatible with the latest trends in home automation technology. SL-Series features include modern styling, brushed stainless steel trim with optional dark contrasting housing, narrow profile, and a T-slot for flexible mounting options with heights up to 11 feet.

General Features

• Sleek, streamline Slimline Single Element heaters are ideal for surface mount applications up to 11’.

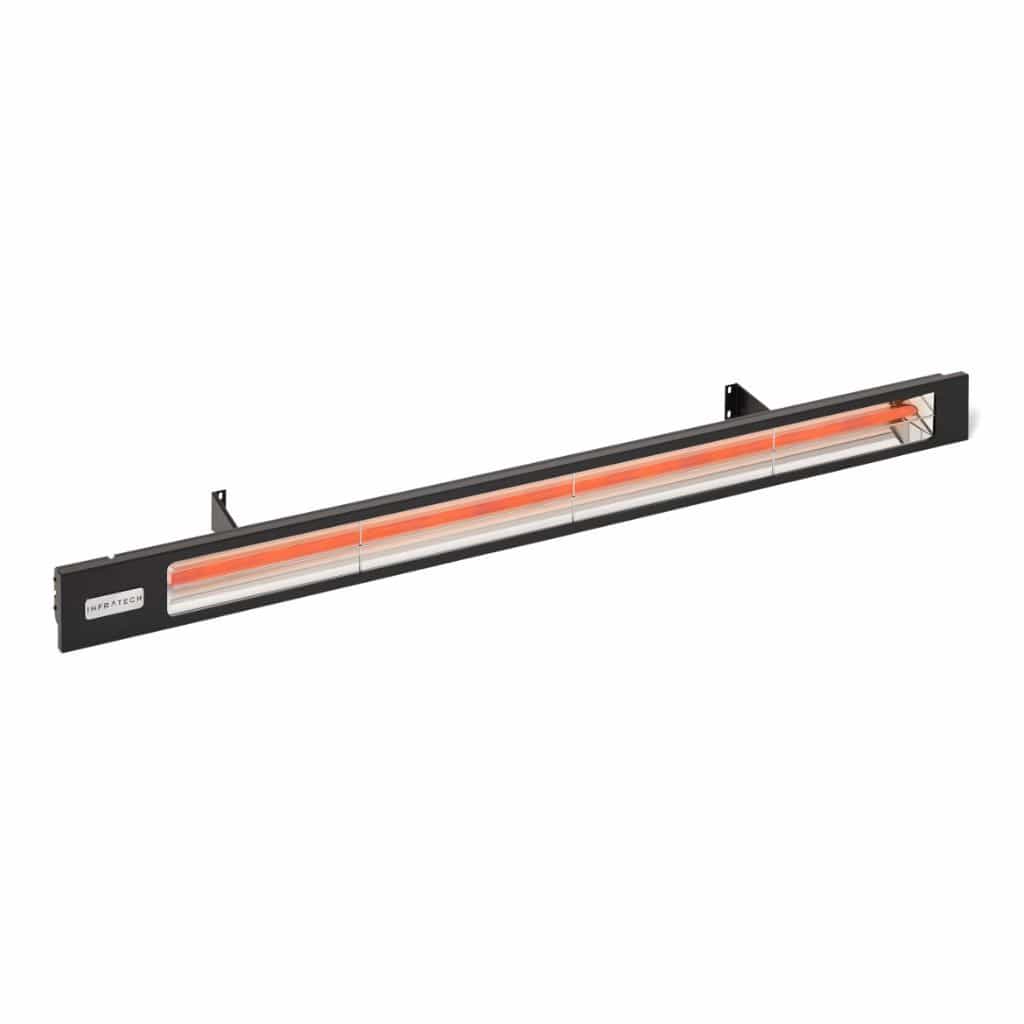

• Available in durable anodized aluminum housing finishes (Silver, Bronze, and our new all-Black Slimline Shadow) that are capable of withstanding years of outdoor use.
• Features Include: Modern Styling, Brushed Stainless Trim with Optional Dark
  Contrasting Housing, Narrow Profile, and a T-Slot for Flexible Mounting.
• Slimline Series Includes Standard Mounting Brackets that can be used for both wall and ceiling installation. (See page 141 for additional mounting options.)
• Additional Voltages Available: The Slimline Series, Single Element heaters are also available in 208V AND 277V

Specification

Required to complete the unit:

• Control System

Click here to see Control Options

Enjoy a wide range of control options – from our exclusive smart home integration offering to our new Universal Control Panel, which enables you to use the dimmers of your choice along with remote functionality via mobile device or smart home assistant.

Value Controls On/Off Single Switch Your Simple On/Off Switches may be used in conjunction with all heaters. An ideal low-cost option for your single element heaters 20 Amp max per switch Wire your heater to the switch, then the switch to your electrical service panel You may run more than 1 heater from a single switch if they do not exceed the 20 allowable Amps, but it is not recommended. On/Off Duplex Stack Switch Your Duplex Stack Switches may be used with all heaters. An ideal low-cost option for your dual element heaters allowing you to turn on both elements or just 1 element for ½ power. 40 Amp max per stack, 20 Amps per switch. Wire your heater to the switch, then the switch to your electrical service panel. You may run your single element heaters from each switch if they do not exceed the 20 allowable Amps per switch, but it is not recommended. Infinite Control (INF) Regulator This control allows you to turn up or down the intensity of the heater. Each dial has a max of 3,000 Watts allowed. Each dial has a max of 15 Amps allowed. Will work with all styles of heaters. Controlling each element separately using 2 INF Switches for a Dual Element unit is not recommended.

Custom Controls Solid State Relay Package Infratech’s Solid State Controls are engineered for your individual project and are suitable for commercial or residential installations of any size. Multiple zoning capabilities. Allows for the option to adjust the intensity of heat of one or more heaters in a specified target area. Available with optional timers. Controls are built to UL 508 listing, which is a higher safety standard than the National Electric Code (NEC). Heaters are hard-wired directly to the Solid State Relay Panel. Tested before leaving the factory, and provided wiring diagrams for each installation. Universal Control Panel 120V Leviton Universal Slide Dimmer provided for convenience (1 per Relay) The Universal Control is a complete solution that will work with almost any 120V lighting System Universal Control Panel is 508/UL-listed and made in the USA A WiFi/Bluetooth compatible device can be purchased to gain this function Home Management System Infratech’s Home Management Control is compatible with top-selling systems like Lutron™, Crestron™, Control 4™, and others. Infratech’s simple interface requires a 0-10V DC signal for streamlined installation and straightforward programming. This control option allows the user the ability to save preferred heat settings for off-site control via mobile device, control zones, heat intensity, timer functions, and more!

Click HERE to shop for more Custom Control options.

Why infrared heat?

A heated quartz element emits a safe, clean wavelength of light that is only absorbed by solid objects, transferring heat directly to a person, table, or floor rather than heating the air. For this reason, infrared heat can be distributed very evenly, and will not simply "blow away" in windy or drafty conditions. Infratech medium wave quartz element heaters are 93% efficient and emit a barely discernible, pleasing glow that will not affect the ambiance of your gathering – unlike competitive short-wave or halogen electric heaters that produce a very harsh glare or bright-colored light.

Cost of Operation and Maintenance

Operation:

It’s simple to determine the cost of operating an Infratech heater—multiply the rate charged by your local utility company by the wattage of your heater.

Your Utility Rate X Wattage of Your Heater = Cost of Operation

EXAMPLE: Your utility charges $0.15* / kilowatt hour (kW) X 3 (for a 3000 watt heater) = $0.45 / hour

***This is the National Average. Utility charges will vary.***

Maintenance:

Unlike traditional gas heaters, Infratech electric heaters are virtually maintenance-free. For long-lasting use, we recommend once a year to spray the heater with a hose and wipe it down. Our elements are rated to last 5,000 hours, plus they are simple and inexpensive to replace.

Downloads:

• Slimline Series Installation Use & Care Manual
• Slimline Series Dimensions
• Slimline Series Dimensions
