The Fiero Team is committed to delivering quality products and exceptional after-sales care. Each product has been carefully chosen and tested to prove its value and effectiveness in the most demanding commercial kitchens. When a Fiero product is purchased, attention to detail and excellent service are our promise, long past the purchase date.
Description
The DIY Kit Duo is a "do it yourself" kit that provides the unique components a mason needs to build an Italian hearth-style brick oven designed for residential use. Build the oven on top of a prepared foundation and finish the facade with any non-c
Interior/Exterior Use: Build the Masonry Oven into an exterior wall to place the oven mouth in the kitchen, or place it outside and finish it to match your backyard!
Model Size: Duo (35.4" ø baking floor) & Quattro (43.3" ø baking floor)
Features
The DIY Kit Duo is a “do it yourself” kit that provides the unique components a mason needs to build an Italian hearth-style brick oven designed for residential use. Build the oven on top of a prepared foundation and finish the facade with any non-combustible materials of your choosing. The oven hearth is designed & manufactured in Modena, Italy as a solid, single-piece refractory door diameter measuring 35.4”, with a refractory opening that allows access to the hearth at 21.6” wide by 8.3” tall while the DIY Kit Quattro is measuring 43.3”, with a refractory opening that allows access to the hearth at 21.6” wide by 8.3” tall. Wood fuel is combusted directly within the hearth which maximizes energy efficiency and power.
Build Your Own Oven!

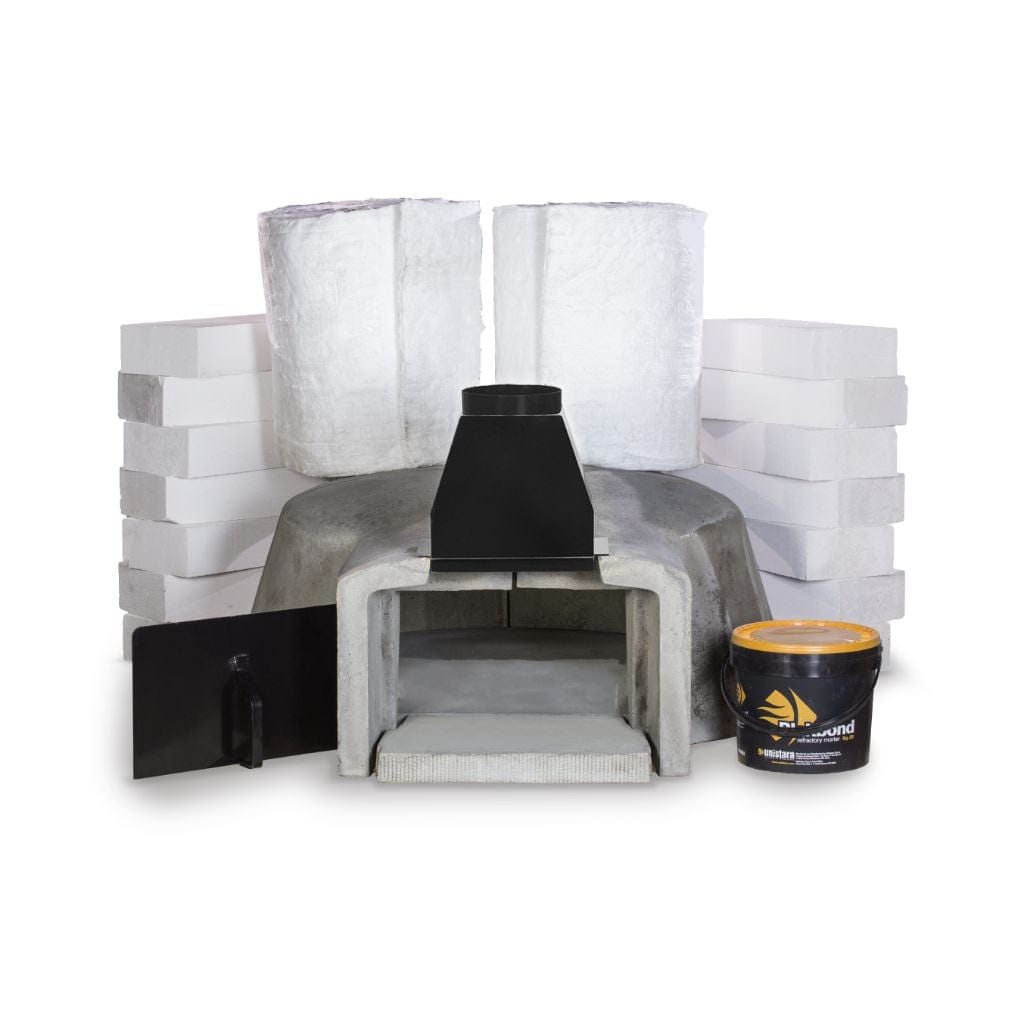

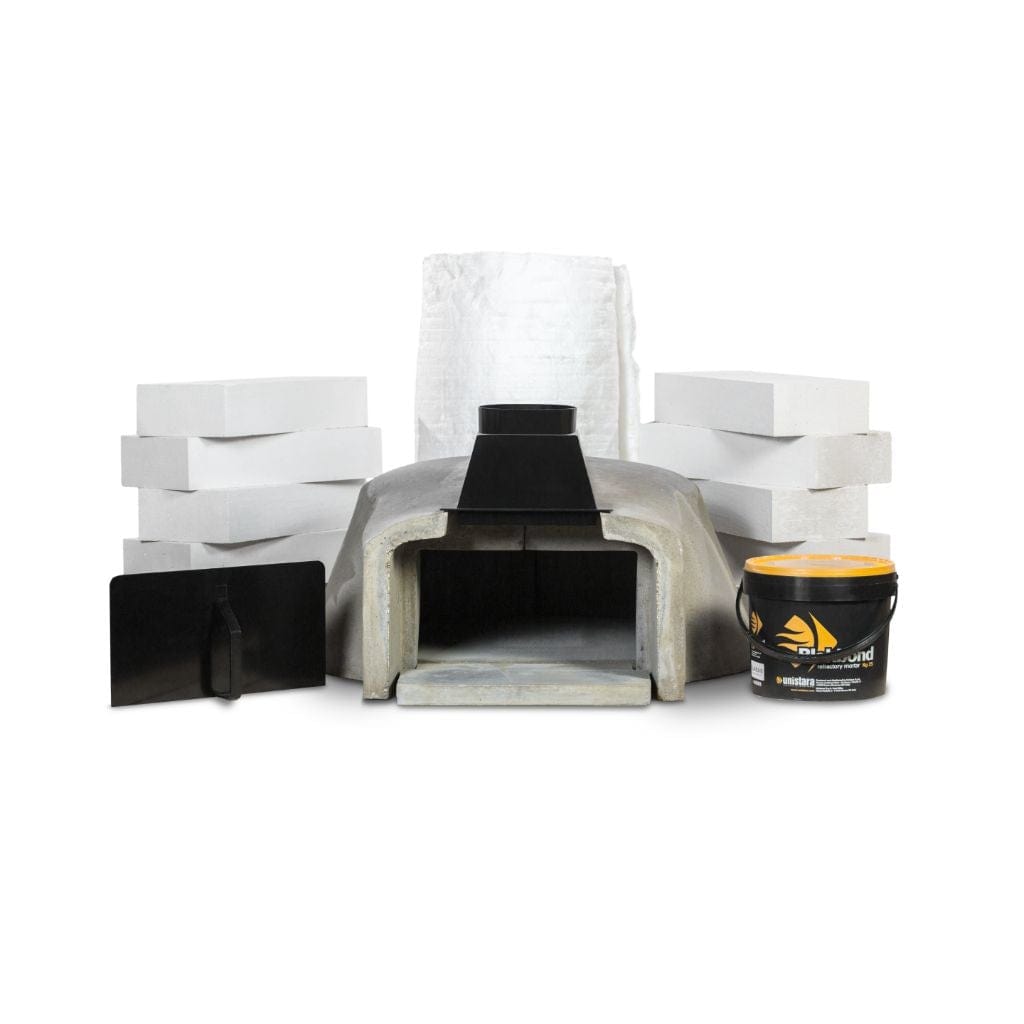

The DIY Oven Kit allows you to build your own authentic Italian oven, at home! The kit comes complete with specialty imported Italian construction materials, including refractory dome and floor pieces produced in Modena, Italy by the Pavesi family!
This is a unique chance to build your own high-performance Italian oven, in a unique design that fits your personal aesthetic!
Fiero Forni At Home
Crafted entirely by hand in Modena – Italy, using the highest quality refractory materials and the best performing insulation for a durable oven with consistent baking performance.
Adapted from our commercial line to be more compact, whilst maintaining the same power and capabilities as our professional ovens. Indoors or outdoors, this addition will be the focal point of your home.
Let The Oven Do The Work
The oven hearth is designed to be a solid, single-piece refractory floor providing an even distribution of heat across the baking surface, preventing hot and cold spots.
This oven gives you all the advantages of a professional pizzaiolo working with a premier oven.
Technical
Ventilation
Ventilation material is not included. The oven shall be directly connected to a UL 103 HT listed chimney or equivalent standard per NFPA 211 & local codes. The chimney must terminate to a chimney cap with a UL-listed spark arrester. Installation requirements may vary depending upon the desired chimney run.
Operational Airflow: 200 CFM
Static Pressure at Flue Collar: 0.05 in H2O
Clearances
Duo
Minimum clearance of the oven (built-in or standalone) to combustible materials is as follows:
Top: 14” (356 mm)
Back & Sides: 1” (25 mm)
Non-combustible flooring must extend out at least 36” (914 mm) from the oven opening and at least 30” (762 mm) to each side of the opening. Do not fill the required air space with insulation or other materials.
Quattro
Minimum clearance of the oven (built-in or standalone) to combustible materials is as follows:
Top: 14” (356 mm)
Back & Sides: 1” (25 mm)
Non-combustible flooring must extend out at least 36” (914 mm) from the oven opening and at least 30” (762 mm) to each side of the opening. Do not fill the required air space with insulation or other materials.
