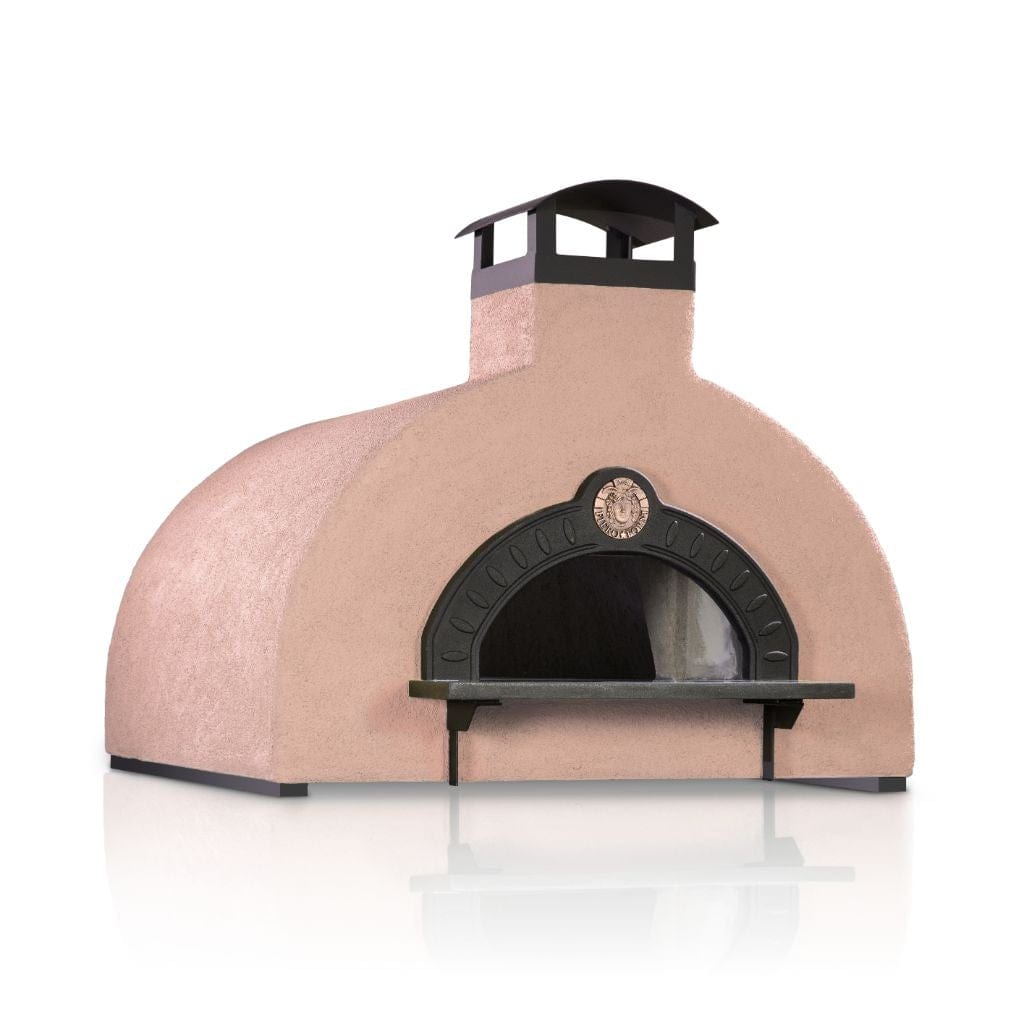

This oven is supplied with an internal chimney system with a UL-listed spark arrester. The oven shall be installed per local & national codes. The chimney must terminate to a chimney cap with a UL-listed spark arrester. Installation requirements may vary depending upon the desired chimney run.
Operational Airflow: 200 CFM
Static Pressure at Flue Collar: 0.05 in H2O
Clearances
Duo
Minimum clearance of the oven (built-in or standalone) to combustible materials are as follows:
Top: 14” (356 mm)
Back & Sides: 1” (25 mm)
Non-combustible flooring must extend out at least 36” (914 mm) from the oven opening and at least 30” (762 mm) to each side of the opening. Do not fill the required air space with insulation or other materials.
Quattro
Minimum clearance of the oven (built-in or standalone) to combustible materials are as follows:
Top: 14” (356 mm)
Back & Sides: 1” (25 mm)
Non-combustible flooring must extend out at least 36” (914 mm) from the oven opening and at least 30” (762 mm) to each side of the opening. Do not fill the required air space with insulation or other materials.
