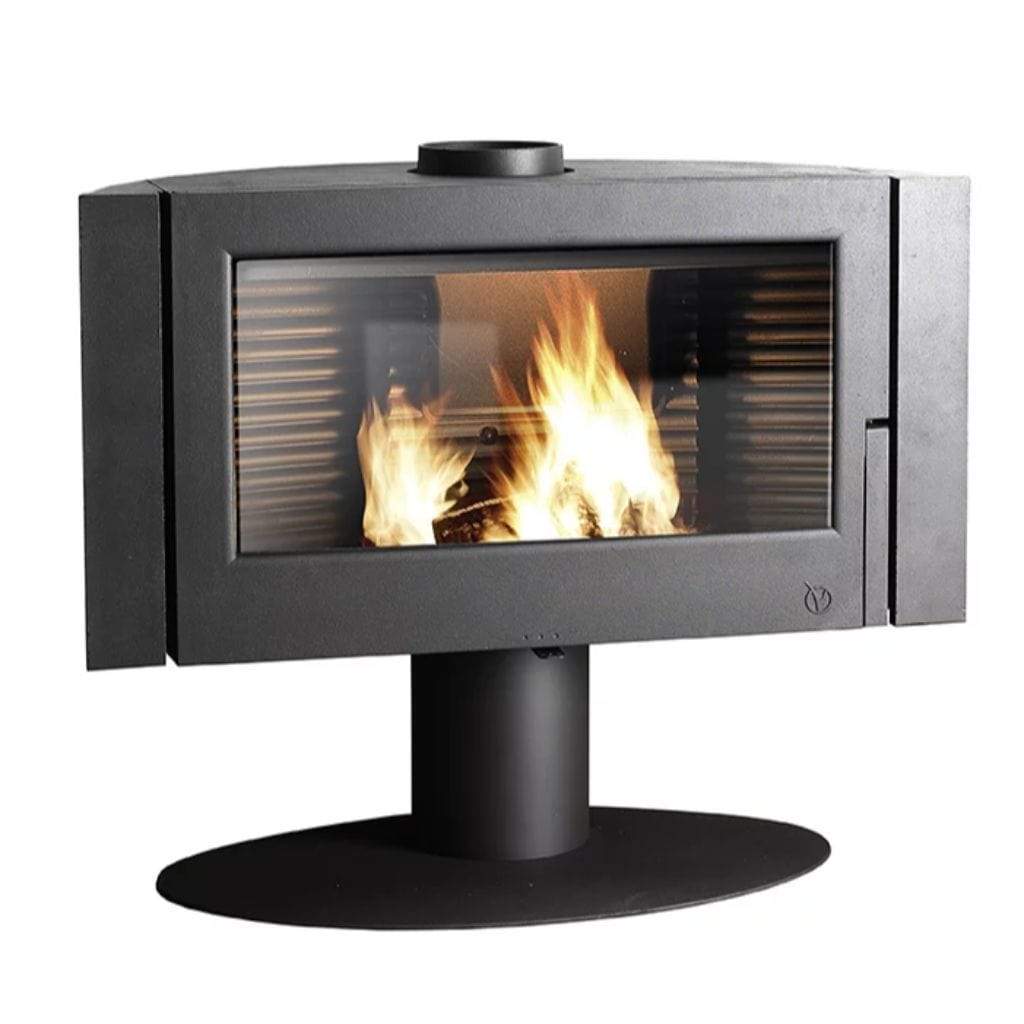

Invicta Antaya 41" Cast Iron Wood Burning Stove

Why this product?

8 hour extended burning

The unit can operate in slow combustion mode for 8 hours without adding more fuel or other external intervention. There will be a bed of embers after this period. This is enough to reload the unit with fuel to relight it.

Adjustable secondary air

Secondary air protects the glass against smoke and soot deposits. It ensures combustion of volatile materials. The adjustable secondary air flow can adapt the unit’s operation to high draft conditions.

Clean glass

The clean glass system slows deposit buildup on the glass. An air supply above the glass creates a protective curtain. The preheated air is propelled along the glass. It triggers combustion of gas and volatile materials, thereby protecting the glass against smoke and soot deposits.

Origine France Garantie (Made in France Guarantee)

The Origine France Garantie is the only certification that certifies a product was manufactured in France. This labeling is validated by an independent organization, after an audit. (Bureau Veritas No.7208672). OFG products are manufactured in France at Invicta Group manufacturing sites.

Post-combustion system

Injection of pre-heated air into the combustion chamber The supplementary air intake in the back enables hydrocarbons to be destroyed at a high temperature. Complete combustion reduces pollution.

Technical Elevations

Optional Accessories

Stove Shields

Cold rolled steel panel. High temperature anthracite epoxy paint coating. Sometimes you just can't make it work with the clearances required of your wood stove. That's where this Invicta rear heat shield comes in. This shield provides and extra layer to safety during the use of your appliance.

Please Note: Do not connect the stove to any hot air distribution system

Also Note: This appliance must be installed on a non-combustible protector that extends to the front, sides, and back of the appliance.

Click to see venting products

venting products

4" Length DuraBlack Stovetop Adapter - 7DBK-AD
	Use to adapt DuraBlack stovepipe to appliance flue outlets.
12" Length DuraBlack Single-Wall Black Pipe - 7DBK-12
	Use for a single-wall connector pipe. Requires 18” clearance to combustibles. Subtract 1 1⁄4” from length to calculate the installed length.
24" Length DuraBlack Single-Wall Black Pipe - 7DBK-24
	Use for a single-wall connector pipe. Requires 18” clearance to combustibles. Subtract 1 1⁄4” from length to calculate the installed length.
48" Length DuraBlack Single-Wall Black Pipe - 7DBK-48
	Use for a single-wall connector pipe. Requires 18” clearance to combustibles. Subtract 1 1⁄4” from length to calculate the installed length.
DuraBlack Slip Connector With Trim - 7DBK-SC
	Used to adapt DuraBlack pipe to 6” - 8” Ceiling Support Box, including DuraTech, and DuraPlus. The Slip connector can also be added to 6” - 8” DuraTech finishing collar.
45-Degree DuraBlack Elbow - 7DBK-E45
	Offsets obstructions as needed. Elbows angles are now adjustable. Adjustable elbows are manufactured drip-free so creosote travels back to the stove as intended.
90-Degree DuraBlack Elbow - 7DBK-E90
	Offset obstructions as needed or to orient the stovepipe horizontally through the wall installation. Adjustable elbows are manufactured drip-free so creosote travels back to the stove as intended.
DVL Double-Wall Black Stovepipe Adapter - 7DVL-AD
	Connects DVL pipe to the appliance flue outlet. Use as a stove adapter.
6" DVL Double-Wall Adjustable Black Stovepipe - 7DVL-6ADJ
	8” clearance to ceilings, including cathedral ceilings. Use to add length to DVL pipe. 6” pipe adds 2”-5” of length.
29"-46" DVL Double-Wall Black Stovepipe Telescoping Length - 7DVL-46TA
	Use for a two-piece installation from stove to ceiling support box or finishing collar. No cutting is required.
40"-68" DVL Double-Wall Black Stovepipe Telescoping Length - 7DVL-68TA
	Use for a two-piece installation from stove to ceiling support box or finishing collar. No cutting is required.
6" DVL Double-Wall Black Stovepipe - 7DVL-06
	Designed for installation with minimum clearance to combustibles (6” to walls, 8” from top of horizontal run to ceiling). Subtract ¾” for installed length. Constructed with a stainless steel inner wall.
12" DVL Double-Wall Black Stovepipe - 7DVL-12
	Designed for installation with minimum clearance to combustibles (6” to walls, 8” from top of horizontal run to ceiling). Subtract ¾” for installed length. Constructed with a stainless steel inner wall.
18" DVL Double-Wall Black Stovepipe - 7DVL-18
	Designed for installation with minimum clearance to combustibles (6” to walls, 8” from top of horizontal run to ceiling). Subtract ¾” for installed length. Constructed with a stainless steel inner wall.
24" DVL Double-Wall Black Stovepipe - 7DVL-24
	Designed for installation with minimum clearance to combustibles (6” to walls, 8” from top of horizontal run to ceiling). Subtract ¾” for installed length. Constructed with a stainless steel inner wall.
48" DVL Double-Wall Black Stovepipe - 7DVL-48
	Designed for installation with minimum clearance to combustibles (6” to walls, 8” from top of horizontal run to ceiling). Subtract ¾” for installed length. Constructed with a stainless steel inner wall.
45-Degree DVL Double-Wall Black Elbow - 7DVL-E45
	8” clearance to ceilings, including cathedral ceilings. Offsets obstructions as needed. Elbows angles are adjustable.
90-Degree DVL Double-Wall Black Elbow - 7DVL-E90
	Offsets obstructions as needed. Elbows angles are adjustable. Not recommended for rear exit appliances.
DVL/DuraBlack Chimney Adapter With Trim - 7DVL-ADT
	Use to connect from double-wall DVL to DuraTech, DuraPlus, and DuraLiner for a through-the-wall or ceiling support installation. Provides a strong mechanical connection.
DBK-DS DuraBlack Damper Section - 7DBK-DS
	Install at, or close to, the stove outlet in-line. 5” pipe section with the damper pre-installed.
DVL Double-Wall Black Adapter/Damper Section - 7DVL-ADWD
	8” clearance to ceilings, including cathedral ceilings. Connects DVL pipe to the appliance flue outlet. Use as a stove adapter.
12" DVL Double-Wall Adjustable Black Stovepipe - 7DVL-12ADJ
	Use to add length to DVL pipe. 12” pipe adds 2”-11” of length when used with rigid sections of pipe.
DBK-TC DuraBlack Trim Collar - 7DBK-TC
	Use as a decorative Trim Collar for DuraBlack connection to the chimney.
DVL/DuraBlack Chimney Adapter - 7DVL-ADC
	Use to connect from double-wall DVL and/or single-wall DuraBlack to DuraTech, DuraPlus, and DuraLiner for a through-the-wall or ceiling support installation.

Downloads

Invicta Antaya Stove Catalog

Invicta Antaya Stove Owners Manual

Invicta Antaya Stove Installation Guide

Invicta Antaya Stove Technical Specification

Invicta Antaya Stove Brochure

Invicta Antaya Stove Comparison Chart
