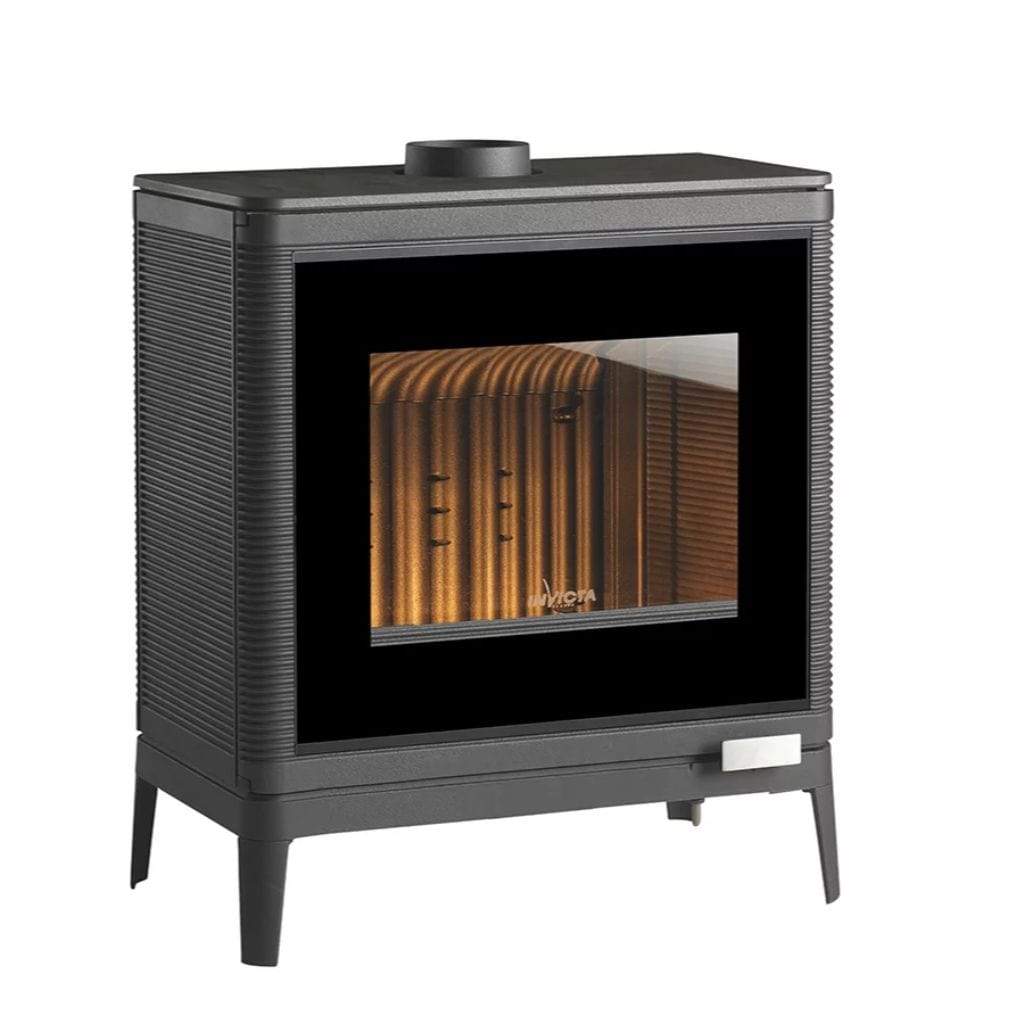

Invicta Kazan GA 30" Cast Iron Wood Burning Stove

SKU: 6104-43

Great reasons to buy from us:

  • Image of FREE Shipping on Orders over $199

    Free Shipping

    FREE Shipping on Orders over $199
  • Image of 110% Price Match Guarantee

    We will beat any price

    110% Price Match Guarantee
  • Image of In Stock Orders Ship in 24-48 hours

    Fast Shipping

    In Stock Orders Ship in 24-48 hours
  • Image of Up To 20% Off! Don't miss out on this limited time offer!

    Huge Discounts

    Up To 20% Off! Don't miss out on this limited time offer!

Kazan GA 30" Cast Iron Stoves

Featuring a screen-printed “grand angle” (GA) pane, our Kazan stove is both powerful and chic. Its fins are designed with an extended heat transfer surface for improved energy efficiency.

Directly inspired by the thermal efficiency of cast iron radiators, Kazan Grand Angle (GA) combines design and performance. The fins give it a unique and elegant streamlined style, while enhancing energy performance through increased heat exchange surface.

The Kazan GA (Grand Angle), manufactured in France by Invicta, is inspired by the thermal efficiency of cast iron radiators. The elegant and innovative design of the fins is where composition and production meet while also providing enhanced energy performance through its increased heat exchange surface.

Features

OPTIMAL POWER
9 kW
POWER MODULATION
6 to 13.5 kW
HEAT VOLUME
125 to 275 m³
HEATING SURFACE
50 to 110 m²
GREEN FLAME
7 stars
EFFICIENCY
76%
CO RATE
0,08 %
CONCENTRATION OF POWDERS
28 mg/Nm³
PERFORMANCE INDEX
0.5
COMBUSTILE
Logs 25, Logs 33, Logs 50 cm
MAXIMUM LENGTH OF THE LOGS (HORIZONTALLY)
58 cm
LOAD
Front
SMOKE EXHAUST
Top or Back
DIAMETER OF NOZZLE
150 mm
DIMENSIONS
H 768 x W 652 x D 372 mm
WEIGHT
162 kg
DESIGN
Contemporain
MATTER
Cast Iron
COMPLETION
Anthracite
CERTIFICATION
EN 13240 – BImSchV2
GUARANTEE
5 years

Why this product?

8 hour extended burning

The unit can operate in slow combustion mode for 8 hours without adding more fuel or other external intervention. There will be a bed of embers after this period. This is enough to reload the unit with fuel to relight it.

Adjustable secondary air

    Secondary air protects the glass against smoke and soot deposits. It ensures combustion of volatile materials. The adjustable secondary air flow can adapt the unit’s operation to high draft conditions.

    Clean glass

      The clean glass system slows deposit buildup on the glass. An air supply above the glass creates a protective curtain. The preheated air is propelled along the glass. It triggers combustion of gas and volatile materials, thereby protecting the glass against smoke and soot deposits.

      Origine France Garantie (Made in France Guarantee)

      The Origine France Garantie is the only certification that certifies a product was manufactured in France. This labeling is validated by an independent organization, after an audit. (Bureau Veritas No.7208672). OFG products are manufactured in France at Invicta Group manufacturing sites.

      Post-combustion system

        Injection of pre-heated air into the combustion chamber The supplementary air intake in the back enables hydrocarbons to be destroyed at a high temperature. Complete combustion reduces pollution.

        Spring loaded door

        Technical Elevations

        Optional Accessories

        Rear Heat Shield

          • Color: Charcoal
          • Optional accessory
          • Manufactured from heat-resistant material
          • For use with the Invicta Kazan cast iron wood stove
          • Protects against excessive heat produced by wood stoves
          • Supplies an additional layer of safety during the operation of hearth appliances


          Please Note: Do not connect the stove to any hot air distribution system

          Also Note: This appliance must be installed on a non-combustible protector that extends to the front, sides, and back of the appliance.

          Click to see venting products


          venting products

          4" Length DuraBlack Stovetop Adapter - 6DBK-AD
          Use to adapt DuraBlack stovepipe to appliance flue outlets.
          DuraBlack 6" Diameter Telescoping Length With Trim - 6DBK-TL
          Use for a two-piece installation. Connects directly from stove to ceiling support box or finishing collar.
          12" Length DuraBlack Single-Wall Black Pipe - 6DBK-12
          Use for a single-wall connector pipe. Requires 18” clearance to combustibles. Subtract 1 1⁄4” from length to calculate the installed length.
          24" Length DuraBlack Single-Wall Black Pipe - 6DBK-24
          Use for a single-wall connector pipe. Requires 18” clearance to combustibles. Subtract 1 1⁄4” from length to calculate the installed length.
          48" Length DuraBlack Single-Wall Black Pipe - 6DBK-48
          Use for a single-wall connector pipe. Requires 18” clearance to combustibles. Subtract 1 1⁄4” from length to calculate the installed length.
          DuraBlack Slip Connector With Trim - 6DBK-SC
          Used to adapt DuraBlack pipe to 6” - 8” Ceiling Support Box, including DuraTech, and DuraPlus. The Slip connector can also be added to 6” - 8” DuraTech finishing collar.
          45-Degree DuraBlack Elbow - 6DBK-E45
          Offsets obstructions as needed. Elbows angles are now adjustable. Adjustable elbows are manufactured drip-free so creosote travels back to the stove as intended.
          90-Degree DuraBlack Elbow - 6DBK-E90
          Offset obstructions as needed or to orient the stovepipe horizontally through the wall installation. Adjustable elbows are manufactured drip-free so creosote travels back to the stove as intended.
          DVL Double-Wall Black Stovepipe Adapter - 6DVL-AD
          Connects DVL pipe to the appliance flue outlet. Use as a stove adapter.
          6" DVL Double-Wall Adjustable Black Stovepipe - 6DVL-6ADJ
          8” clearance to ceilings, including cathedral ceilings. Use to add length to DVL pipe. 6” pipe adds 2”-5” of length.
          29"-46" DVL Double-Wall Black Stovepipe Telescoping Length - 6DVL-46TA
          Use for a two-piece installation from stove to ceiling support box or finishing collar. No cutting is required.
          40"-68" DVL Double-Wall Black Stovepipe Telescoping Length - 6DVL-68TA
          Use for a two-piece installation from stove to ceiling support box or finishing collar. No cutting is required.
          6" DVL Double-Wall Black Stovepipe - 6DVL-06
          Designed for installation with minimum clearance to combustibles (6” to walls, 8” from top of horizontal run to ceiling). Subtract ¾” for installed length. Constructed with a stainless steel inner wall.
          12" DVL Double-Wall Black Stovepipe - 6DVL-12
          Designed for installation with minimum clearance to combustibles (6” to walls, 8” from top of horizontal run to ceiling). Subtract ¾” for installed length. Constructed with a stainless steel inner wall.
          18" DVL Double-Wall Black Stovepipe - 6DVL-18
          Designed for installation with minimum clearance to combustibles (6” to walls, 8” from top of horizontal run to ceiling). Subtract ¾” for installed length. Constructed with a stainless steel inner wall.
          24" DVL Double-Wall Black Stovepipe - 6DVL-24
          Designed for installation with minimum clearance to combustibles (6” to walls, 8” from top of horizontal run to ceiling). Subtract ¾” for installed length. Constructed with a stainless steel inner wall.
          48" DVL Double-Wall Black Stovepipe - 6DVL-48
          Designed for installation with minimum clearance to combustibles (6” to walls, 8” from top of horizontal run to ceiling). Subtract ¾” for installed length. Constructed with a stainless steel inner wall.
          45-Degree DVL Double-Wall Black Elbow - 6DVL-E45
          8” clearance to ceilings, including cathedral ceilings. Offsets obstructions as needed. Elbows angles are adjustable.
          90-Degree DVL Double-Wall Black Elbow - 6DVL-E90
          Offsets obstructions as needed. Elbows angles are adjustable. Not recommended for rear exit appliances.
          DVL/DuraBlack Chimney Adapter With Trim - 6DVL-ADT
          Use to connect from double-wall DVL to DuraTech, DuraPlus, and DuraLiner for a through-the-wall or ceiling support installation. Provides a strong mechanical connection.
          DBK-DS DuraBlack Damper Section - 6DBK-DS
          Install at, or close to, the stove outlet in-line. 5” pipe section with the damper pre-installed.
          6"-8" DuraBlack Slip Increaser With Trim - 6DBK-XS8
          Use to adapt from 6” DuraBlack to 8” DuraTech, DuraPlus, or DuraLiner at the ceiling support box or finishing collar. Adds 5" - 15" of length.
          DBK-TC DuraBlack Trim Collar - 6DBK-TC
          Use as a decorative Trim Collar for DuraBlack connection to the chimney.
          DVL Double-Wall Black Adapter/Damper Section - 6DVL-ADWD
          8” clearance to ceilings, including cathedral ceilings. Connects DVL pipe to the appliance flue outlet. Use as a stove adapter.
          DVL Double-Wall Black Stovepipe Increaser - 6DVL-X8
          Use to increase from a smaller appliance flue outlet to a larger diameter chimney or stovepipe.

          Downloads

          Invicta Kazan GA Stove Catalog

          Invicta Kazan GA Stove Installation

          Invicta Kazan GA Stove Owners Manual

          Invicta Kazan GA Stove Technical Specification

          Invicta Kazan GA Stove Brochure

          Invicta Kazan GA Stove Comparison Chart
