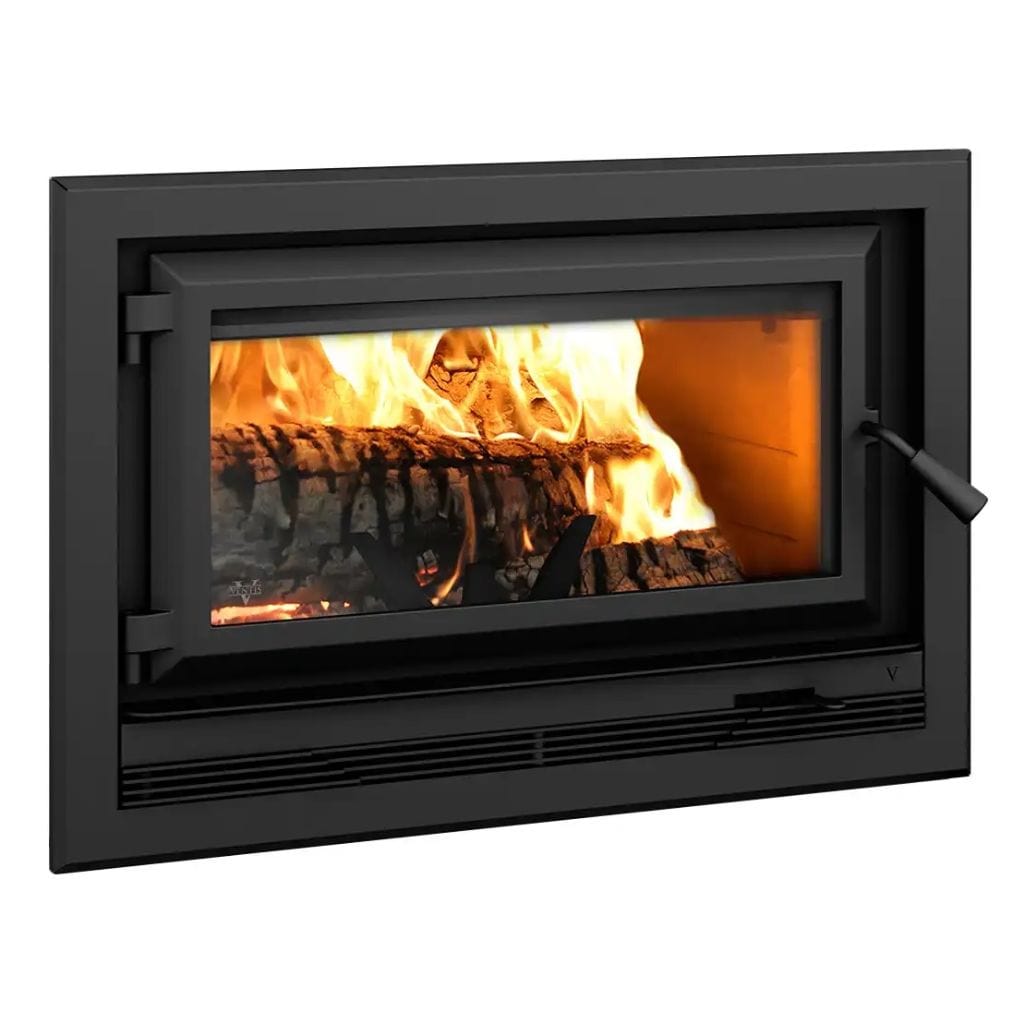

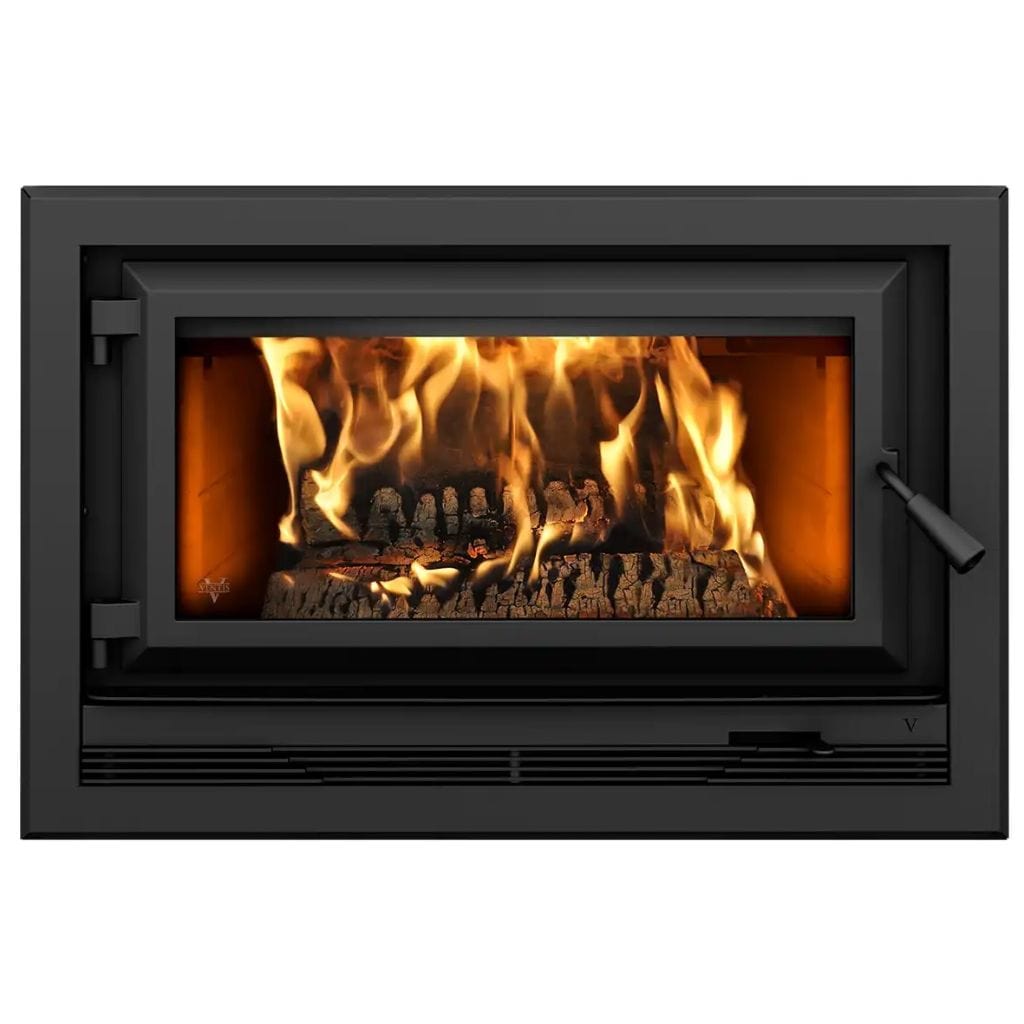

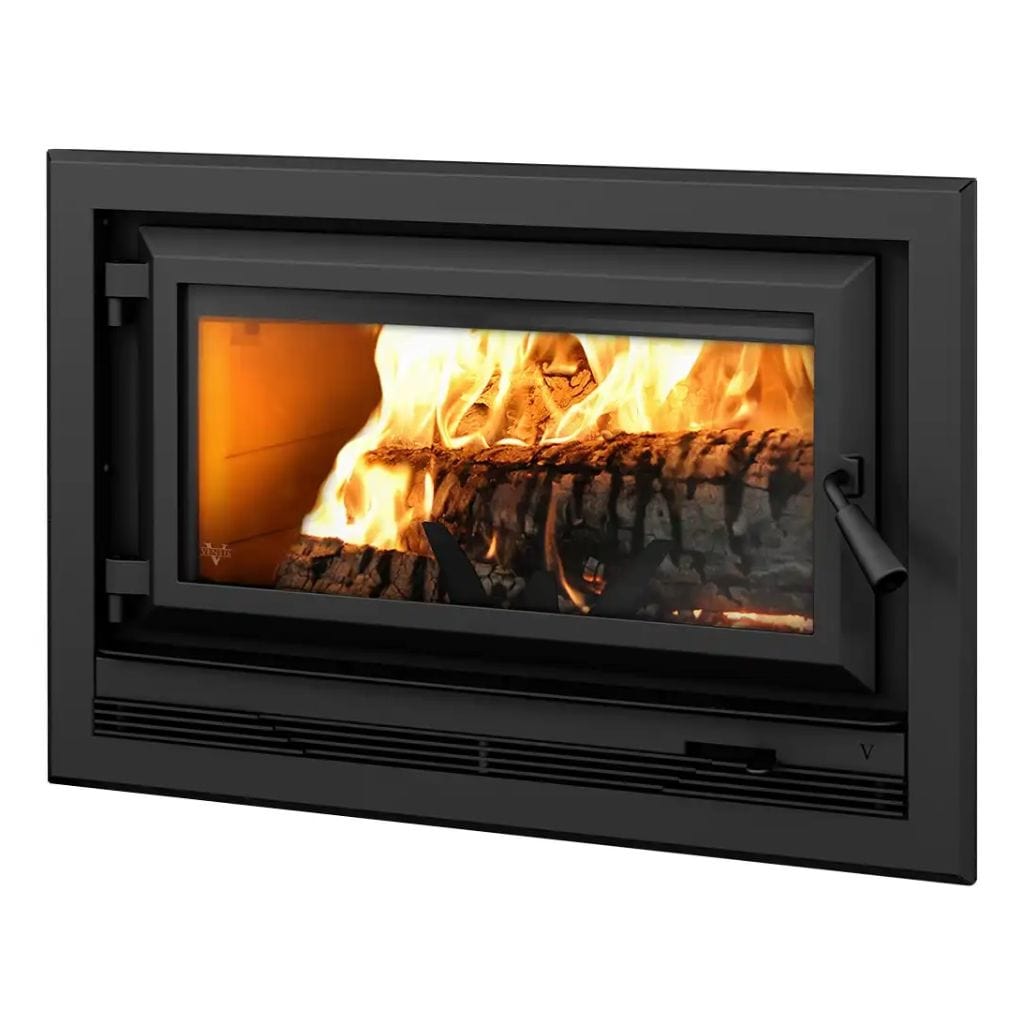

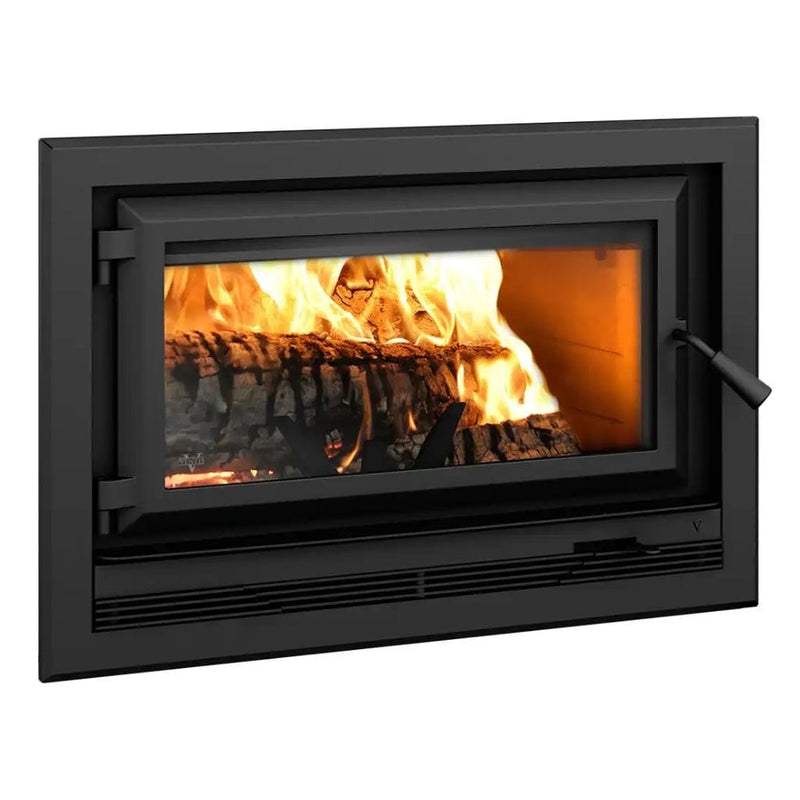

Ventis HE275CF 37" Zero Clearance Wood Burning Fireplace

Ventis HE275CF Zero Clearance Wood Burning Fireplace is built for heating and EPA certified. It has a 2.5 cubic ft firebox that can handle up to a 20-Inch log and has a maximum burn time of up to 8 hours for one load of wood. It produces 80,000 BTUs to heat up to 2,200 square feet. The Ventis HE275CF fireplace requires 6" chimney venting and includes a 6" Rock-Vent Anchor Plate to start the chimney pipe off the top of the fireplace.

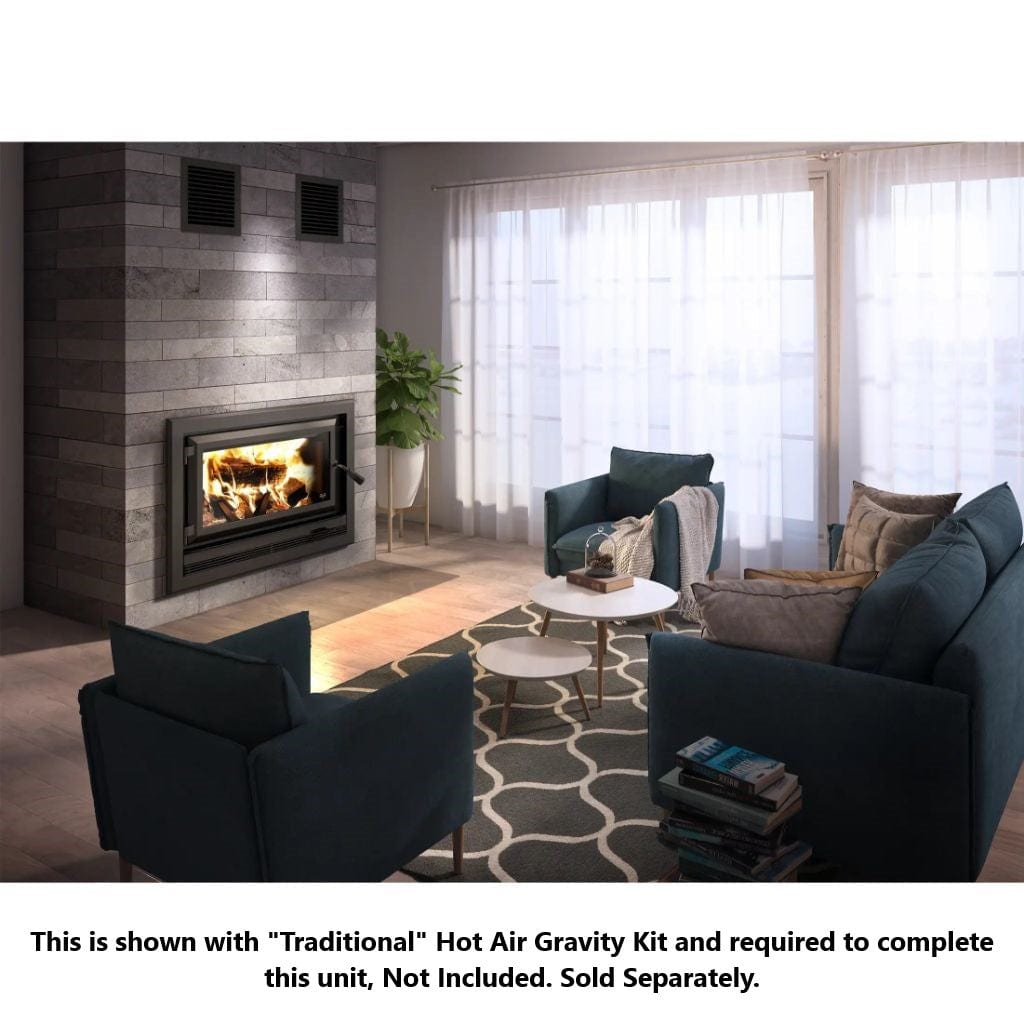

It uses a hot air gravity kit to maximize the heating output of the fireplace. The heat from the top of the fireplace rises up two pipes attached to the fireplace and is released through a grill on the wall above the fireplace. This hot air gravity kit is available in traditional and modern styles.

• Designed mainly for heating

• Large contemporary fireplace with single door

• EPA 2020 certified

• Non-catalytic combustion technology

• Installation authorized on the Island of Montreal

• Firestop made of high density insulation board

• Minimalist Ventis distinctive louver

• Molded refractory stones

• 6" Ventis stainless steel anchor plate included

• Fresh air intake adapter and andiron included

Required Option:

• Choose one Hot Air Kit to complete this unit. Not Included, Sold Separately.
• Hot Air Gravity Kit Traditional (AC01375K) or Modern (AC01389K)

CA Residents: See Prop 65 WARNING.

Appliance Performance

• Performances based on a fuel load prescribed by the standard at 7 lb/ft³ and with a moisture content between 19% and 25%.
• Optimum overall efficiency at a specific burn rate (LHV).
• This appliance is officially tested and certified by an independent agency.
• The maximum heat output (dry cordwood) is based on a loading density varying between 15 lb/ft³ and 20 lb/ft³. Other performances are based on a fuel load prescribed by the standard. The specified loading density varies between 7 lb/ft³ and 12 lb/ft³. The moisture content is between 19% and 25%.
• As measured per CSA B415.1-10 stack loss method.
• Higher Heating Value of the fuel.
• Lower Heating Value of the fuel.
• The optimum heat transfer efficiency is for the low burn rate (using HHV) and represents the appliance’s ability to convert the energy contained in the solid fuels into energy transferred to the room in the form of heat and does not take into account the chemical losses during combustion.
• Recommended heating area and maximum burn time may vary subject to location in home, chimney draft,heat loss factors, climate, fuel type and other variables. The recommended heated area for a given appliance is defined by the manufacturer as its capacity to maintain a minimum acceptable temperature in the designated area in case of a power failure.
• Carbon monoxyde.

General Features

OPTIONS & ACCESSORIES

	Traditional Hot Air Gravity Kit (AC01375K) Traditional hot air gravity kit allows you to heat other parts of the home directly above the Ventis HE275CF fireplace. Required to complete this unit.
	Modern Hot Air Gravity Kit with adjustable pipes (AC01389K) Modern hot air gravity kit allows you to heat other parts of the home directly above the Ventis HE275CF fireplace. Required to complete this unit.
	Firescreen Door Optional accessory Designed for use with HE275CF wood fireplace
	4-Inch Fresh Air Intake Adapter 4-Inch fresh air intake adapter Allows outside combustion air to feed the appliance Airtight damper prevents air drafts when not in use Fully adjustable wall control included
	Fireplace Carrying Handle Kit Fireplace carrying handle kit makes transporting the fireplace to the install location much easier. The Handle Kit enables you to attach handles to the sides of the fireplace and gives you a better grip when lifting the fireplace.
	Forced Air Kit Forced air kit allows you to heat other rooms of the home adding to the heating capacity of the Ventis HE275CF fireplace. Designed for use with HE275CF wood fireplace.
	6" x 25' Insulated Flex Pipe 6-Inch x 25ft Insulated flex pipe for forced air kit Designed for use with HE275CF wood fireplace.

Warranty

• Limited lifetime warranty.

Downloads

• Download Product Catalogue
• Download Appliance Dimensions
• Download Installation and Operation Manual
• Fresh Air Intake Adapter Installation Instructions
