Empire 36" Tahoe Peninsula Direct Vent Gas Fireplace

OVERVIEW

A Direct-Vent system uses two vent pipes. One draws air in from outdoors to support combustion. The other exhausts the by-products of combustion to the outside. The two vent pipes may be concentric (exhaust pipe within a larger diameter intake pipe) or co-linear (separate pipes of about the same size).

Combustion takes place inside a sealed chamber – with a glass front in the
case of a fireplace. Room air circulates around the combustion chamber, often assisted by a blower, to heat the room.

A DV system is often installed along an outside wall to simplify the vent run,
but can also be installed elsewhere in the home and vented through the roof.

Advantages

• Good efficiency – 60 to 80%
• Good heat output with thermal transfer through the glass and air circulation
• Separates room air from combustion air
• May be used as primary heat source
• Can operate with a remote or thermostat
• Most systems can provide life-saving heat during a winter power outage

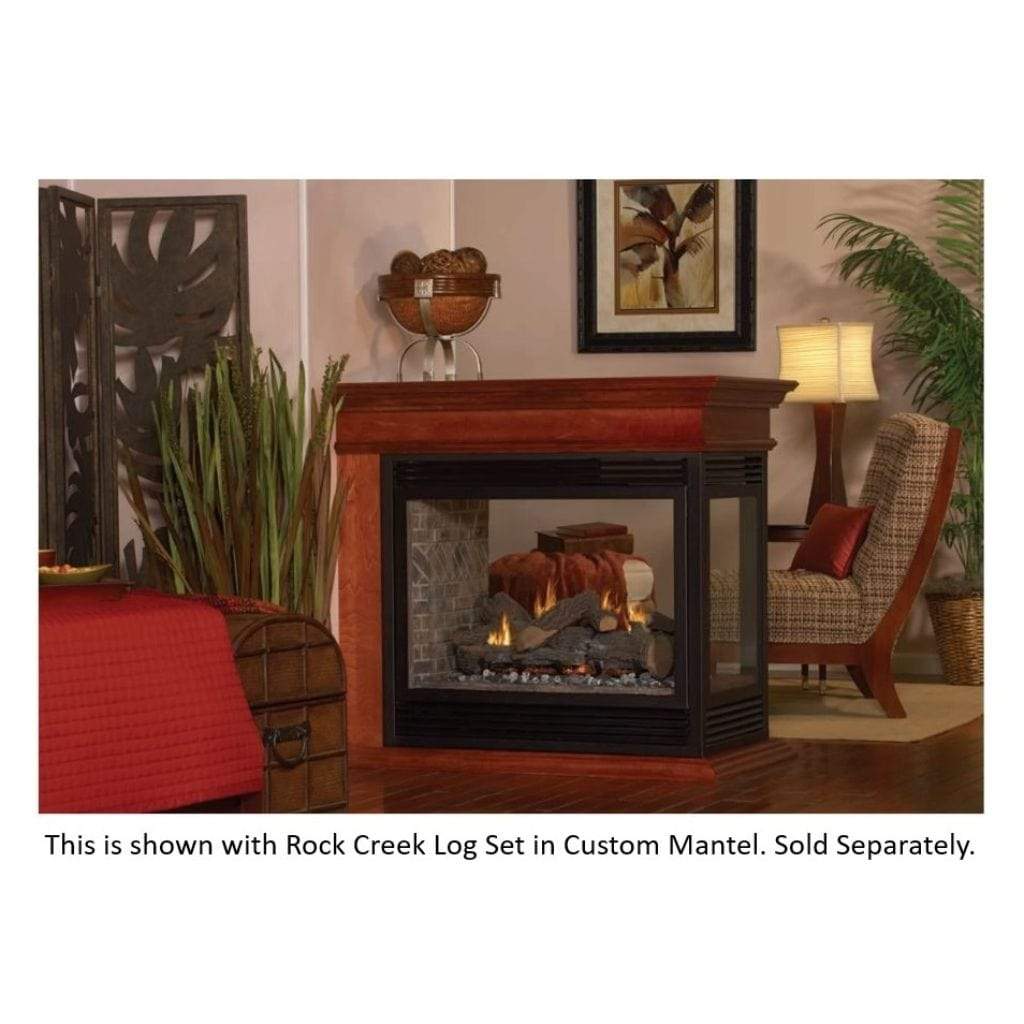

Tahoe Multi-Sided (DVP36PP)

Heater Rated at 35,000 Btu input, the Tahoe Multi-Sided system draws in outdoor air to support combustion and sends its exhaust directly outdoors, and must be located in a position that allows venting through an exterior wall or through the roof. Tahoe Multi-Sided fireplaces install using readily available 4 x 6 5/8 direct-vent pipe.

Tahoe Multi-Sided systems include a built-in 24-inch Slope Glaze Vista Burner, large tempered-glass viewing windows, Banded Brick Liner, ceramic fiber floor liner, dimmer controlled lighting, and glowing embers. The 24-inch Rock Creek Log Set and barrier screens must be ordered to complete the fireplace. (Doors are not available for multi-sided fireplaces.)

FEATURES

• Up to 35,000 BTUs
• Banded brick ceramic fiber liner
• Large tempered glass view windows
• Built-in 24" Slope Glaze Vista Burner
• Standing pilot with remote-ready millivolt controls
• Three open sides provide an excellent view of flames
• Slope Glaze Vista Burner use with Rock Creek refractory log set only

• Dimmer Controlled Accent Light
• Banded Brick Liner

• Three Barriers (one 22-inch and two 36-inch)
• Rock Creek Log Set

Specifications

CA Residents: See Prop 65 WARNING.

OPTIONS & ACCESSORIES

*Please Note:

• Log set required to complete this unit
• One 22in and Two 36in Barriers Required to Complete this unit.
• 22-inch louvers for End of Peninsula and 36-inch louvers for Face of Peninsula

Log Set 24" Rock Creek refractory log set Includes eleven hand-painted and detailed logs Realistic split-wood design

Mantel Tops and Matching Bases

Peninsula Mantel Top and Base Standard Peninsula Mantel Top and base Available in five attractive finish Cherry, Oak, Dark Oak, Unfinished Hardwood, and White Traditional Styling and Compact Design

	Automatic Single-speed Blower
	24 Inch Flexible Stainless Steel Gas Line Stainless steel flexible gas line 24" length Ideal for the connection of a variety of gas appliances
	Platinum Embers Platinum glowing fireplace embers Can be placed directly on the burner Includes approximately 1 gram of ember material
	Variable Speed Control for FBB5 Blower Type: Speed Control Allows you to adjust fan speed of FBB5 firebox blower For use with FBB5 Blower
	Conversion Kit Natural Gas to Propane Propane to Natural Gas For use with Millivolt Control For Tahoe Direct Vent Peninsula & See-Through Fireplaces

Click to see Barrier Options

	Black Barrier 22-Inch Finish: Matte Black
	Black Barrier 36-Inch Finish: Matte Black
