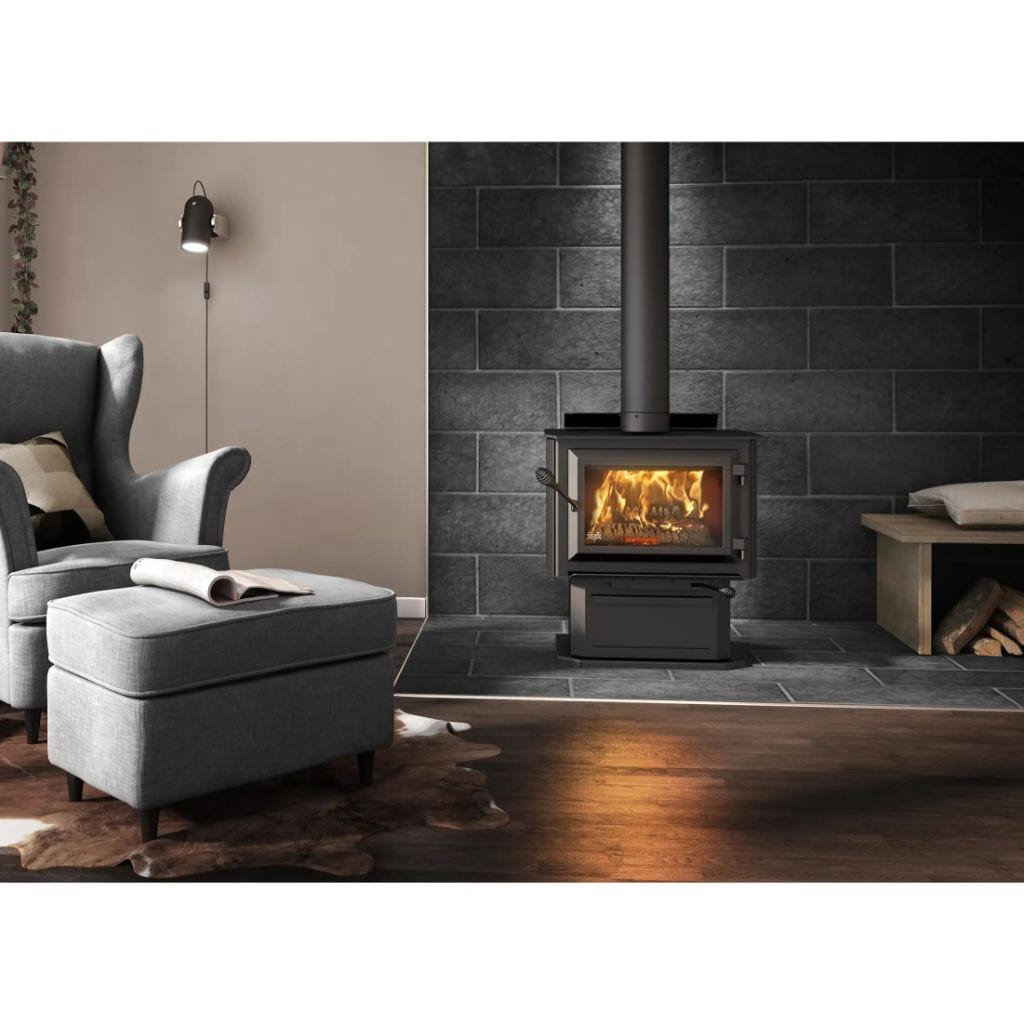

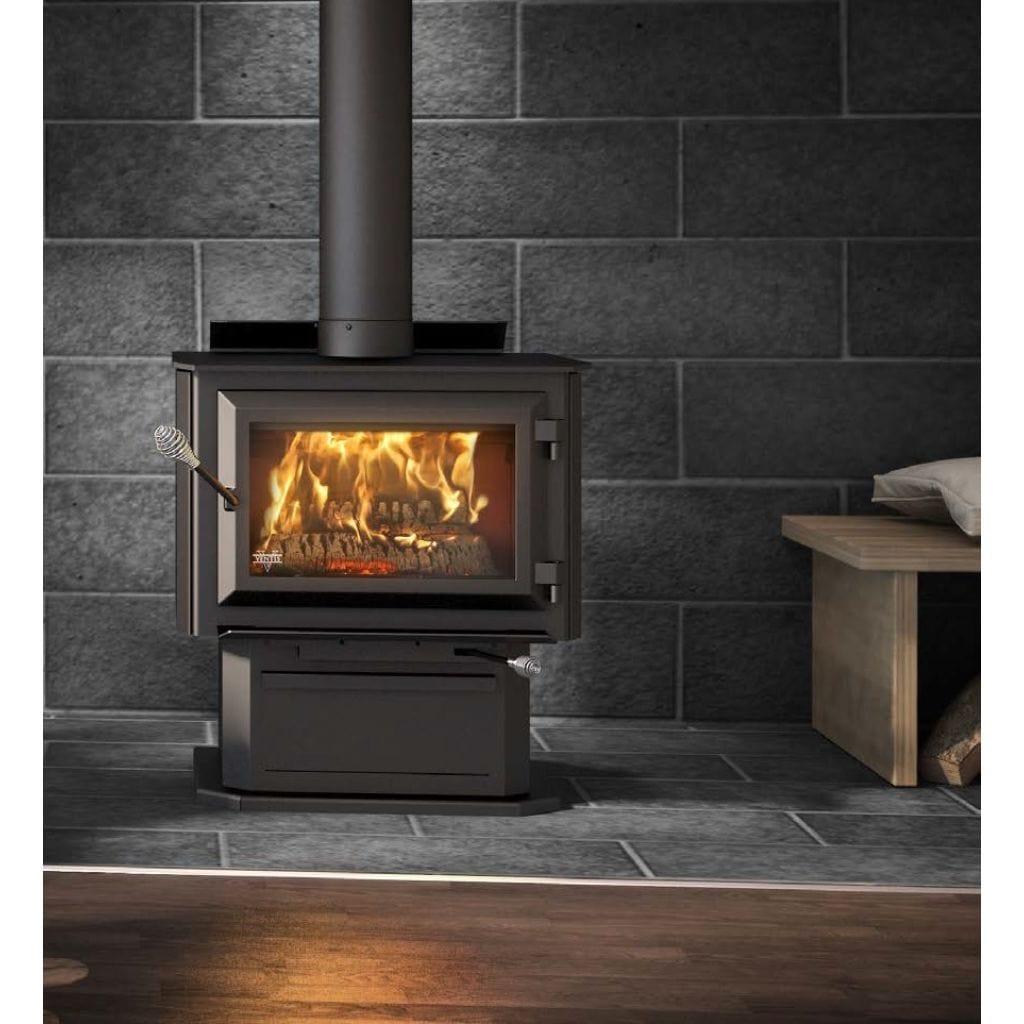

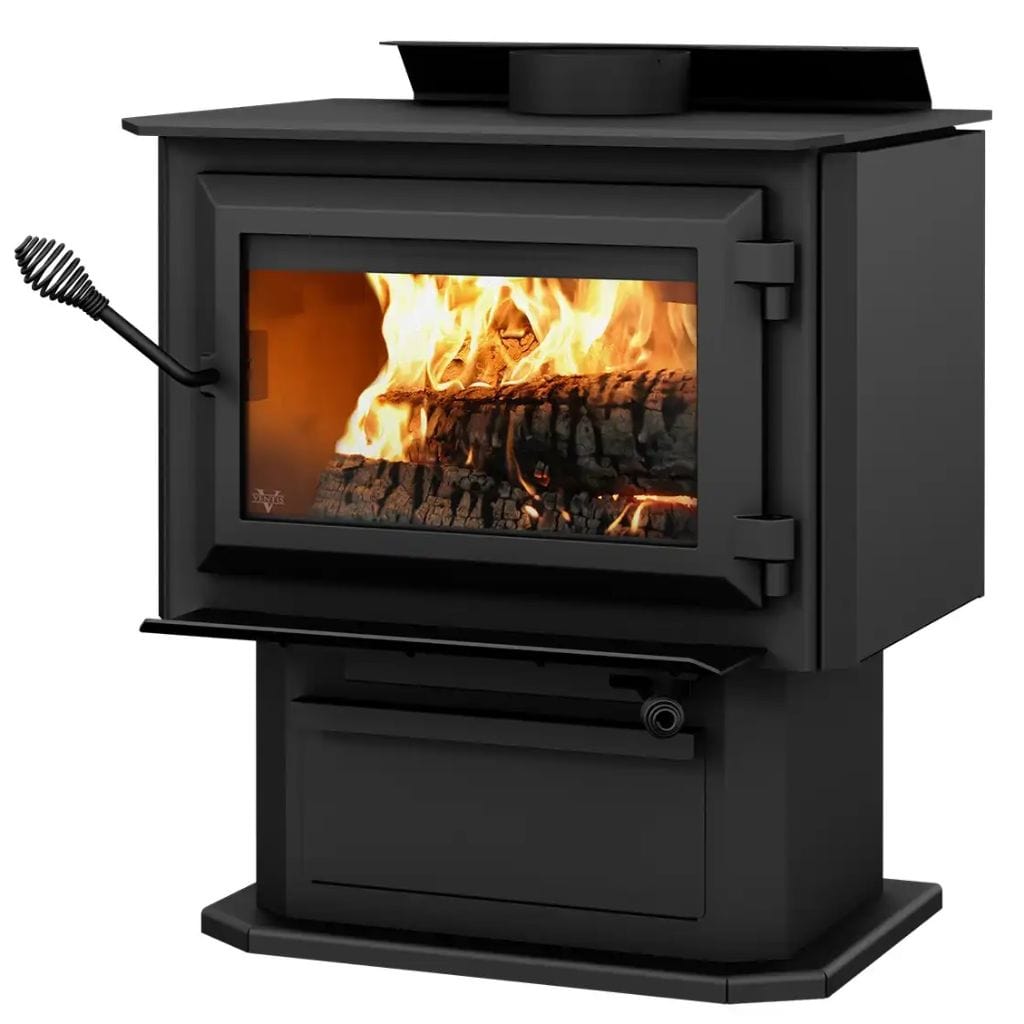

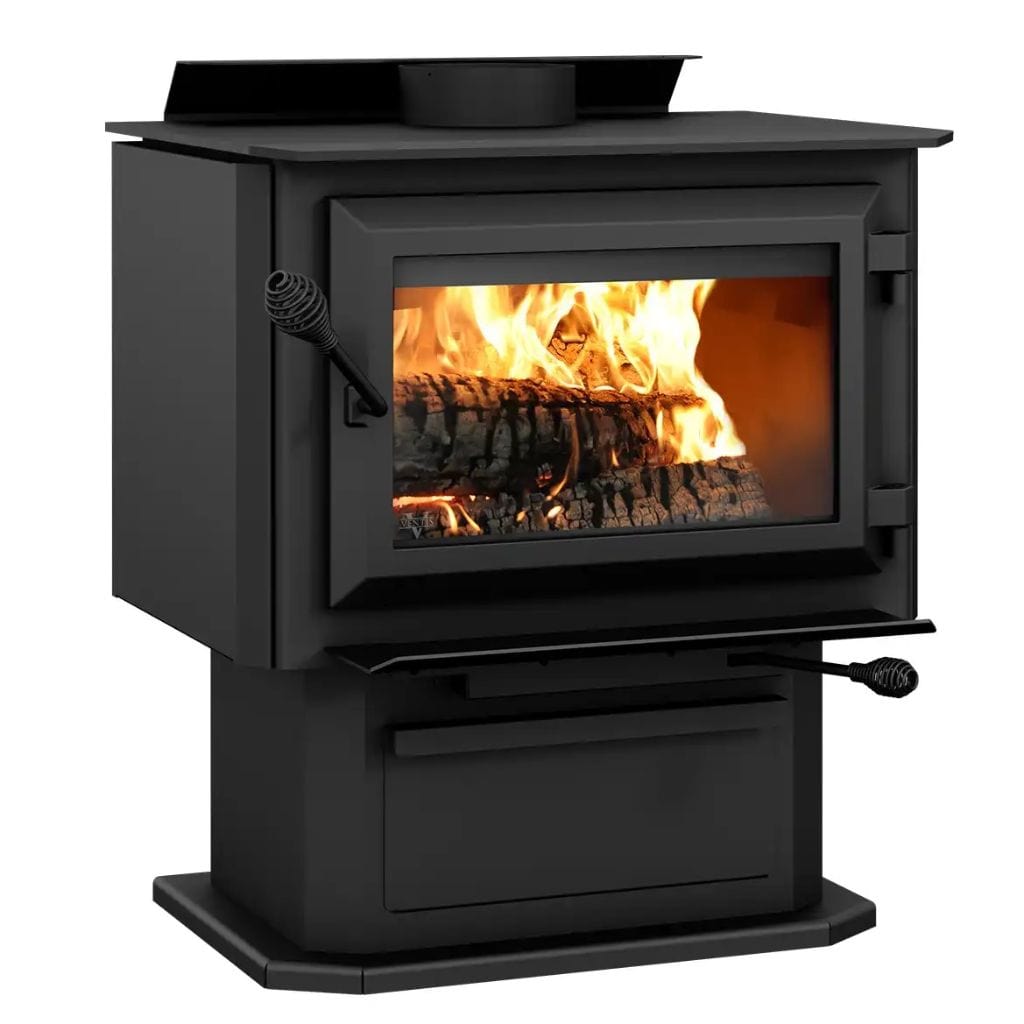

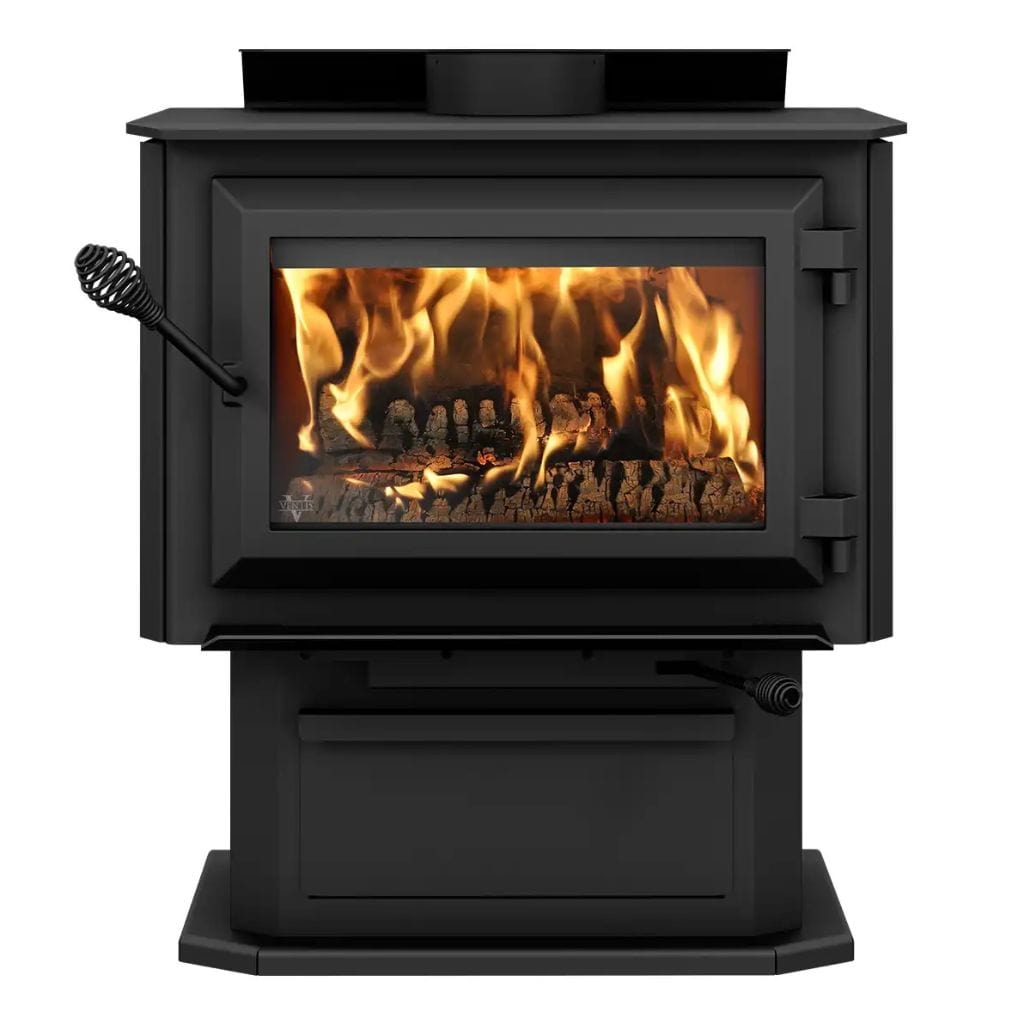

Ventis HES170 25" Wood Stove

SKU: VB00013

Great reasons to buy from us:

  • Image of FREE Shipping on Orders over $199

    Free Shipping

    FREE Shipping on Orders over $199
  • Image of 110% Price Match Guarantee

    We will beat any price

    110% Price Match Guarantee
  • Image of In Stock Orders Ship in 24-48 hours

    Fast Shipping

    In Stock Orders Ship in 24-48 hours
  • Image of Up To 20% Off! Don't miss out on this limited time offer!

    Huge Discounts

    Up To 20% Off! Don't miss out on this limited time offer!

Ventis HES170 is a medium size wood burning stove on pedestal. It heats from 500 to 1,800 sq.ft. and can be used in mobile homes and alcoves. This stove has non-catalytic combustion technology and top heat deflector and side panels. It has a 6 hours maximum burn time and can hold 18in. logs, High-efficiency certified (EPA 2020).

  • Medium size wood stove on pedestal
  • Suitable for smaller spaces
  • EPA certified at only 1.26 g/h
  • Solidity and manufacturing quality
  • Non-catalytic combustion technology
  • Installation authorized on the Island of Montreal
  • Cast iron door
  • Top heat deflector and side panels
  • Stainless steel heat shield added to the firestop

CA Residents: See Prop 65 WARNING.

Appliance Performance

Fuel type Dry cordwood (16" recommended)
Recommended heating area 500 - 1,800 ft²
Overall firebox volume 1.9 ft³
EPA loading volume 1.44 ft³
Maximum burn time 6 hours
Maximum heat output-dry cordwood 65,000 BTU/h
Minimum overall heat output rate 15,650 BTU/h (4.6 kW)
Maximum overall heat output rate 23,300 BTU/h (6.83 kW)
Average efficiency-dry cordwood (HHV) 70 %
Average efficiency-dry cordwood (LHV) 75 %
Optimum efficiency 78 %
Optimum heat transfer efficiency 74 %
Average particulate emission rate 1.26 g/h
Average CO 58 g/h
  • Performances based on a fuel load prescribed by the standard at 7 lb/ft³ and with a moisture content between 19% and 25%.
  • Optimum overall efficiency at a specific burn rate (LHV).
  • This appliance is officially tested and certified by an independent agency.
  • The maximum heat output (dry cordwood) is based on a loading density varying between 15 lb/ft³ and 20 lb/ft³. Other performances are based on a fuel load prescribed by the standard. The specified loading density varies between 7 lb/ft³ and 12 lb/ft³. The moisture content is between 19% and 25%.
  • As measured per CSA B415.1-10 stack loss method.
  • Higher Heating Value of the fuel.
  • Lower Heating Value of the fuel.
  • The optimum heat transfer efficiency is for the low burn rate (using HHV) and represents the appliance’s ability to convert the energy contained in the solid fuels into energy transferred to the room in the form of heat and does not take into account the chemical losses during combustion.
  • Recommended heating area and maximum burn time may vary subject to location in home, chimney draft,heat loss factors, climate, fuel type and other variables. The recommended heated area for a given appliance is defined by the manufacturer as its capacity to maintain a minimum acceptable temperature in the designated area in case of a power failure.
  • Carbon monoxyde.

General Features

Maximum log length 18"
Shipping weight 328 lb (149 kg)
Overall dimension (Width) 24 7/8"
Overall dimension (Height) 29 1/2"
Overall dimension (Depth) 22 3/4"
Alcove installation approved Yes
Mobile home approved Yes, with fresh air intake
Premium quality blower included (CFM) Optional
Certified according to applicable standards CAN/USA accredited laboratory
Combustion technology Non-catalytic
Stainless-steel secondary-air system Yes
Flue outlet diameter 6"
Recommended chimney diameter 6"
Type of chimney CAN/ULC S629, UL 103 HT (2100 °F)
Minimum chimney height 12'
Door type Single, glass with cast iron frame
Door opening size (Width) 17 1/4"
Door opening size (Height) 8"
Glass type Single, glass with cast iron frame
Glass surface - W x H 15 5/8" x 9 1/4"
Firebox size (Width) 19 5/8"
Firebox size (Height) 11 7/8"
Firebox size (Depth) 13 1/2"
Log positioning Loading over width
Firebox lined with refractory bricks Yes
Baffle type High quality vermiculite
High-efficiency certified appliance Yes, EPA 2020 certified
Canadian Standard (emissions) CSA B415.1-10
USA Standard (emissions) EPA
Canadian Standard (safety) ULC S627
USA Standard (safety) UL 1482, UL 737
Steel thickness-body 3/16"
Steel thickness-top 5/16"

OPTIONS & ACCESSORIES


5" Fresh Air Intake Kit

  • Material: Steel
  • Product Type: Outside air kit
  • Allows outside combustion air to be supplied to the stove
  • Facilitates a clean transition to the air intake port
  • Include air intake manifold, gear clamps, and wall register

Rigid Fire Screen

  • Finish: Black
  • Enhances crackle of your fire
  • Removable screen prevents flying sparks
  • Incomparable atmosphere of a good fire
  • Use with HES170 stove


Blower with Variable Speed Control

  • 130 CFM of quiet air output
  • Allows heater to work more efficiently
  • Mounting hardware and brackets included
  • Provides even distribution of heat to the room
  • Thermal switch controls automatic on/off operation


Click to see Venting Components


Ventis 6" to 48" Pipe Length (Single-Wall Black Stove Pipe)

  • Inner Diameter: 6-Inch
  • Length: 6", 12", 18", 24", 36", 48"
  • Heavy-duty 22-gauge, cold-rolled steel
  • These pipes are perfectly round and perfect-fit pipe-to-pipe with the use of butt-welding and precision-end forming technology

Ventis 6" Diameter Small/Large Telescoping Pipe (Single-Wall Black Stove Pipe)

  • Inner Diameter: 6-Inch
  • Small Length: 18" - 30"
  • Large Length: 38" - 70"
  • Heavy-duty 22-gauge, cold-rolled steel
  • These small and large telescoping section is used for two-piece installations

Ventis 2" to 16" Slip Section with Gap Collar (Single-Wall Black Stove Pipe)

  • Heavy-duty 22-gauge, cold-rolled steel
  • This 2" to 16" slip section with gap collar allows for adjustment for an easy, drip-free installation without cutting the pipe


Ventis 6" 45/90-Degree Adjustable Elbow (Single-Wall Black Stove Pipe)

  • Type: Adjustable
  • Inner Diameter: 6-Inch
  • Angle: 45-Degree and 90-Degree
  • Heavy-duty 22-gauge, cold-rolled steel
  • These adjustable elbow allows for pipe adjustments on a 45 and 90-degree angle

Ventis 6" 45/90-Degree Fixed Elbow (Single-Wall Black Stove Pipe)

  • Type: Fixed
  • Inner Diameter: 6-Inch
  • Angle: 45-Degree and 90-Degree
  • Heavy-duty 22-gauge, cold-rolled steel
  • These fixed elbow allows for pipe adjustments on a 45 and 90-degree angle

Ventis 6" Wall Trim Collar (Single-Wall Black Stove Pipe)

  • Inner Diameter: 6-Inch
  • Heavy-duty 22-gauge, cold-rolled steel
  • This wall trim collar helps protect debris from getting into your chimney liner


Ventis 6" Tee with Fixed Snout (Single-Wall Black Stove Pipe)

  • Inner Diameter: 6-Inch
  • Heavy-duty 22-gauge, cold-rolled steel
  • This tee with fixed snout is specifically designed for use with venting pipe with an inner diameter of 6" and it allows for a smooth, seamless connection in your venting system


Ventis 6" Tee Cap (Single-Wall Black Stove Pipe)

  • Inner Diameter: 6-Inch
  • Heavy-duty 22-gauge, cold-rolled steel
  • Removable cap makes cleanings and inspections easy

Ventis 6" Adaptor (Double-Wall Black Stove Pipe)

  • Size: 6-Inch
  • Heavy-duty 24-gauge satin coat outer wall
  • 430-alloy 0.16" thickness stainless steel inner
  • Solid, sturdy construction to last a long time
  • This stove adaptor makes for a solid connection between your stove and your venting system

Ventis 6" to 48" Pipe Length (Double-Wall Black Stove Pipe)

  • 6-Inch Diameter
  • Length: 6", 12", 18", 24", 36", 48"
  • Fume-free finish
  • 6" clearance to wall
  • 8" clearance to ceiling
  • Listed to ULC-S641
  • Lifetime warranty
  • Heavy-duty 24-gauge satin coat outer wall
  • 430-alloy 0.16" thickness stainless steel inner
  • Solid, sturdy construction to last a long time

Ventis 6" Diameter Small/Medium/Large Telescoping Section (Double-Wall Black Stove Pipe)

  • Small telescoping pipe section can extend from 18" to 30".
  • Medium telescoping pipe section can extend from 28" to 50".
  • Large telescoping pipe section can extend from 40" to 68"

Ventis 6" Diameter Slip Section (Double-Wall Black Stove Pipe)

  • Size: 6"x6", 6"x12" and 6"x18"
  • Heavy-duty 24-gauge satin coat outer wall
  • 430-alloy 0.16" thickness stainless steel inner
  • Solid, sturdy construction to last a long time
  • Slip section allows for more secure fit

Ventis 6" 30/45/90-Degree Fixed Elbow (Double-Wall Black Stove Pipe)

  • 6-Inch Diameter
  • Angle: 30°, 45°, 90°
  • Heavy-duty 24-gauge satin coat outer wall
  • 430-alloy 0.16" thickness stainless steel inner
  • Solid, sturdy construction to last a long time
  • Fixed elbow helps your venting system offset obstructions


Ventis 6" Tee with Cap (Double-Wall Black Stove Pipe)

  • 6-Inch Diameter
  • Heavy-duty 24-gauge satin coat outer wall
  • 430-alloy 0.16" thickness stainless steel inner
  • Solid, sturdy construction to last a long time
  • This tee is used to provide a connection from your stove to your venting system


Ventis 6" Finishing Band (Double-Wall Black Stove Pipe)

  • 6-Inch Diameter
  • Heavy-duty 24-gauge satin coat outer wall
  • 430-alloy 0.16" thickness stainless steel inner
  • Solid, sturdy construction to last a long time
  • This finishing band is used to conceal the crimped end on the last length of the venting system

Ventis 6" Ceiling Hanger (Double-Wall Black Stove Pipe)

  • Size: 6-Inch
  • Ceiling Hanger for 6" Double-Wall Black Stove Pipe


Warranty

  • Limited lifetime warranty.
