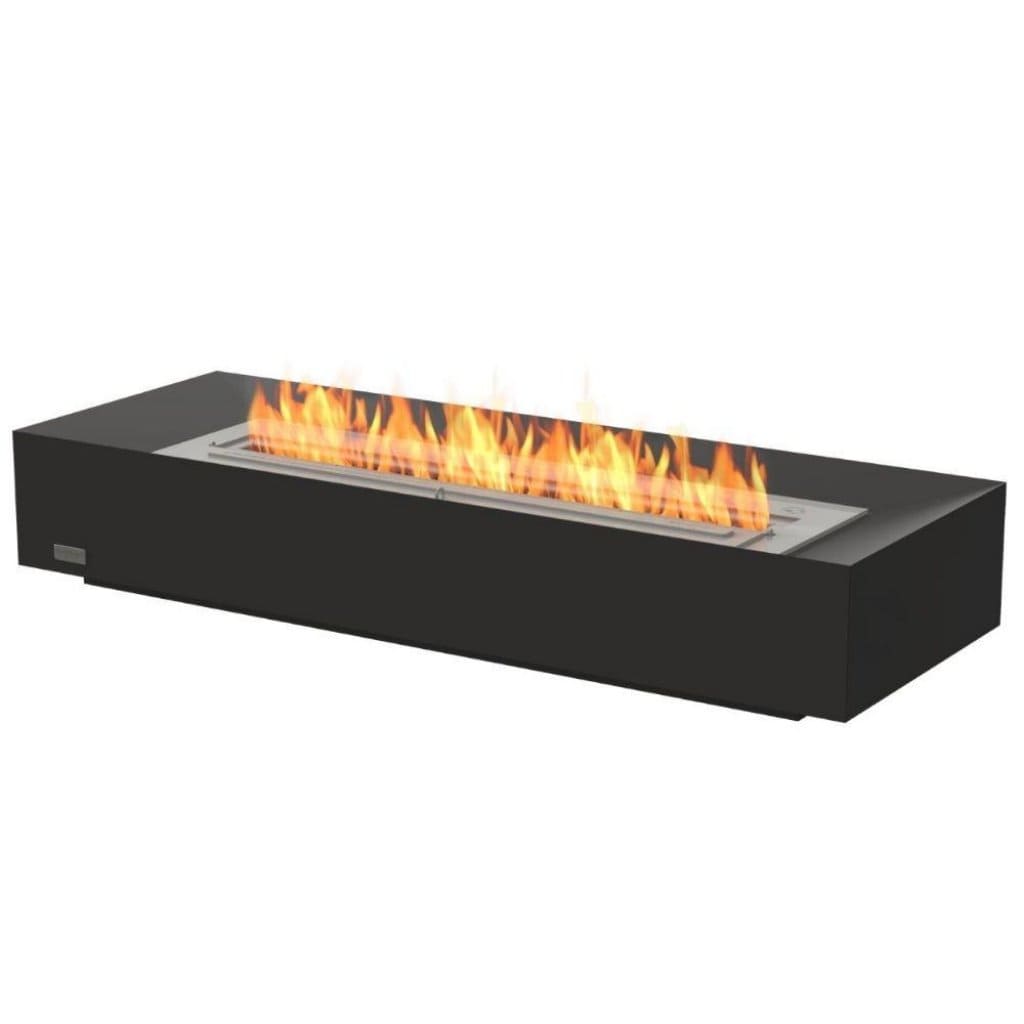

EcoSmart Fire Grate 36" Ethanol Fireplace Insert by MAD Design Group

Fireplace Grate 36, a modern take on the traditional

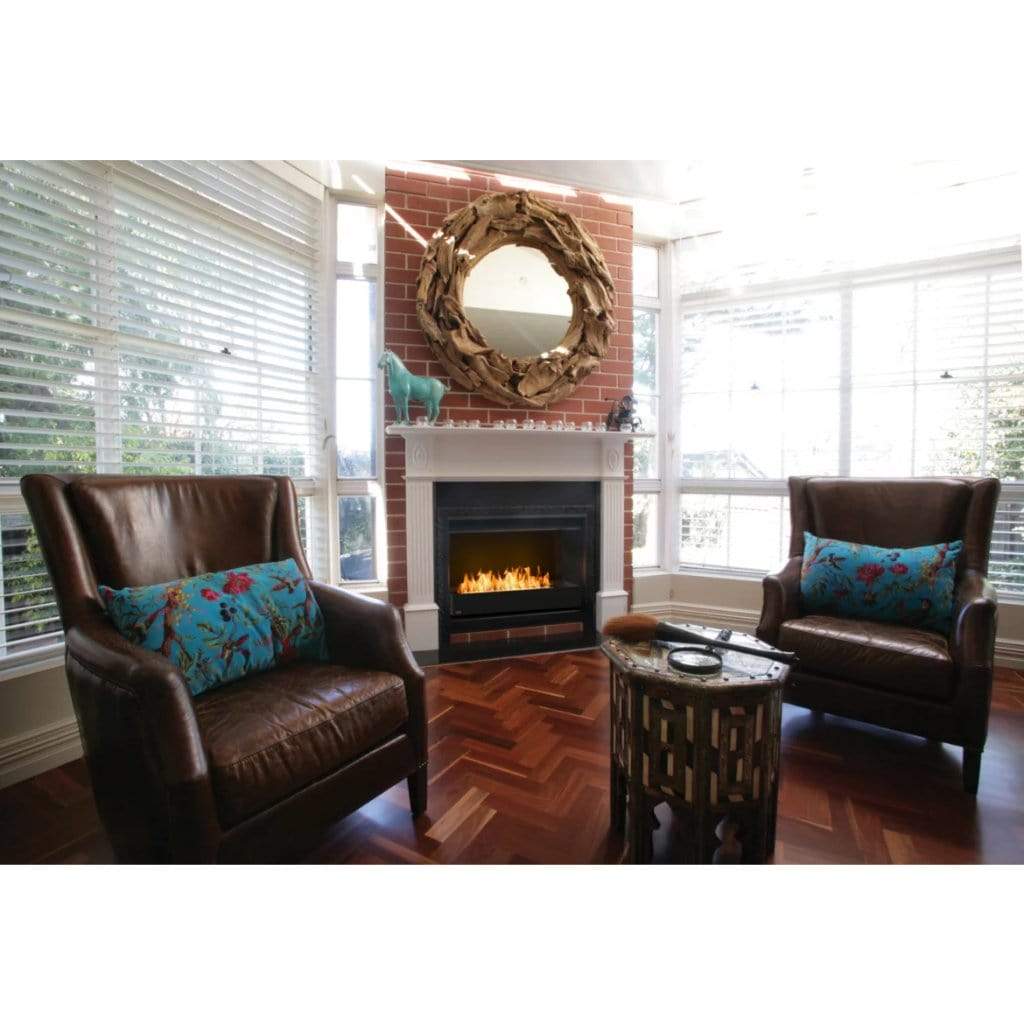

Grate 36’s bold appearance and long elegant flame make it the ideal choice for bringing life back to an old unused fireplace.

Designed for those looking to make an impact when designing a fireplace, Grate 36 is sturdily constructed from Fluid Concrete Technology in a modern graphite concrete colour, and holds the XL700 Burner.

EcoSmart Fire Grate 36 is the modern and eco-friendly way to fire up your fireplace. Enjoy a clean-burning ethanol fireplace within minutes. Just set the grate on a level surface with the help of the easy-fitting system, fill it with bioethanol fuel and you're good to go.

FUEL EFFICIENCY:

*Please Note: "These values are indicative only and may vary depending on the model purchased, installation environment, and the composition of the e-NRG bioethanol sourced in each country."

What's Included:

• Fire Lighter
• Lighting Rod
• Jerry Can 1.25 Gal
• Bottle Adapter
• Butane

*Note: "e-NRG Bioethanol Fuel for the grate is sold separately."

Click to see Included Accessories

	LIGHTINING ROD This operational accessory enables you to safely adjust the slider position of the Burner at any time. It is also used for the ignition and extinguishing procedures.
	JERRY CAN 1.25 GAL Safety features include automatic stop flow, fast flow rate, locking thumb button control, and self-venting system.
	BOTTLE ADAPTOR The adaptor connects the safety spout from the Jerry Can straight onto the e-NRG bottle making fuelling the fire quicker and easier.
	BUTANE Use this high quality butane gas to refill your EcoSmart Fire Lighter.
	FIRE LIGHTER This refillable butane lighter supports the safe ignition of the lighting rod. The length of the lighter further enhances the management of the lighting process.

KEY FEATURES:

Minimum Fuss

Delivering the ambience of an open fire – but minus the mess, odour, sparks and soot due to the clean-burning, eco-friendly e-NRG bioethanol.

Fluid™ Concrete Technology

EcoSmart Fire proprietary technology offers a streamlined yet sophisticated system that delivers exceptionally robust, handcrafted products.

Convert an existing fireplace in minutes

Transforming an existing wood burning fire into a clean burning ethanol fireplace is easy. Simply attach the grate to a level platform with our easy fitting system and fill it with liquid bioethanol. Then sit back and relax.

Optional Sizes

The Grate Series is available in three sizes – the smallest, Grate 18 (with AB8 Burner), the Grate 30 (with XL500 Burner) and largest Grate 36 (XL700 Burner).

No Gas or Electricity

All the fuel is housed within the self-contained burner so you don’t have to run pipes or cables though your walls

Tested World Wide

EcoSmart Fire collection has been thoroughly tested against a number of global standards and are UL Listed in the USA, Certified for EU and UK in accordance with EN16647, and satisfy the ACCC Safety Mandate for Australia.

STANDARD FEATURES:

• Ethanol grate insert for an existing or new fireplace
• Easy to install
• Hassle-free maintenance
• Fluid Concrete Technology ensures consistent graphite color and durable finish
• 304 Stainless Steel burner
• XL700 burner uses clean-burning bioethanol fuel
• For Indoor use
• ISO Certified
• ICC Certified

• UL Listed

TECHNICAL DRAWINGS:

Front View
Side View
Top View

CA Residents: See Prop 65 WARNING.

DOWNLOADS:

• Download Installation and Operation Manual
• Download Specs Sheet
• Download Product Brochure

OPTIONS & ACCESSORIES:

Click to see e-NRG Bioethanol

e-NRG is the highest quality bioethanol fuel available Formulated for use in ventless bioethanol fireplaces, e-NRG is the cleanest, most efficient liquid ethanol fuel on the market and produces the best flame each and every time.

Click to see Plasma Fire Screen

EcoSmart Fire Plasma Fire Screen is a flat panel of glass provides stability to the flame. The Plasma Fire Screen features two handles positioned either side. The Plasma is supported by simple stainless steel feet that are clamped to the base of the at pane of glass, elevating the screen as if oating while providing enhanced stability. In addition to adding style to your fireplace, it also serves as a safety barrier for the flames and protects the flames from being blown by the wind.

Click to see Twin Feet Fixings

The Twin Feet Fixings system was created to improve safety around open fireplaces. Designed to lock a glass fire screen into position, these stainless steel feet provide permanent stability, and at the same time allow for easy removal for refueling and maintenance. This optional accessory is compatible with 8mm thick toughened glass. Its design ensures safety, the glass it locks in place will not be easily knocked down by children and pets.
