Empire 48" Boulevard Direct Vent See-Through Linear Gas Fireplace

OVERVIEW

A Direct-Vent system uses two vent pipes. One draws air in from outdoors to support combustion. The other exhausts the by-products of combustion to the outside. The two vent pipes may be concentric (exhaust pipe within a larger diameter intake pipe) or co-linear (separate pipes of about the same size).

Combustion takes place inside a sealed chamber – with a glass front in the case of a fireplace. Room air circulates around the combustion chamber, often assisted by a blower, to heat the room.

A DV system is often installed along an outside wall to simplify the vent run, but can also be installed elsewhere in the home and vented through the roof.

Advantages:

• Good efficiency – 60 to 80%
• Good heat output with thermal transfer through the glass and air circulation
• Separates room air from the combustion air
• May be used as a primary heat source
• Can operate with a remote or thermostat
• Most systems can provide live-saving heat during a winter power outage

Boulevard See-Through Linear Direct-Vent Fireplaces

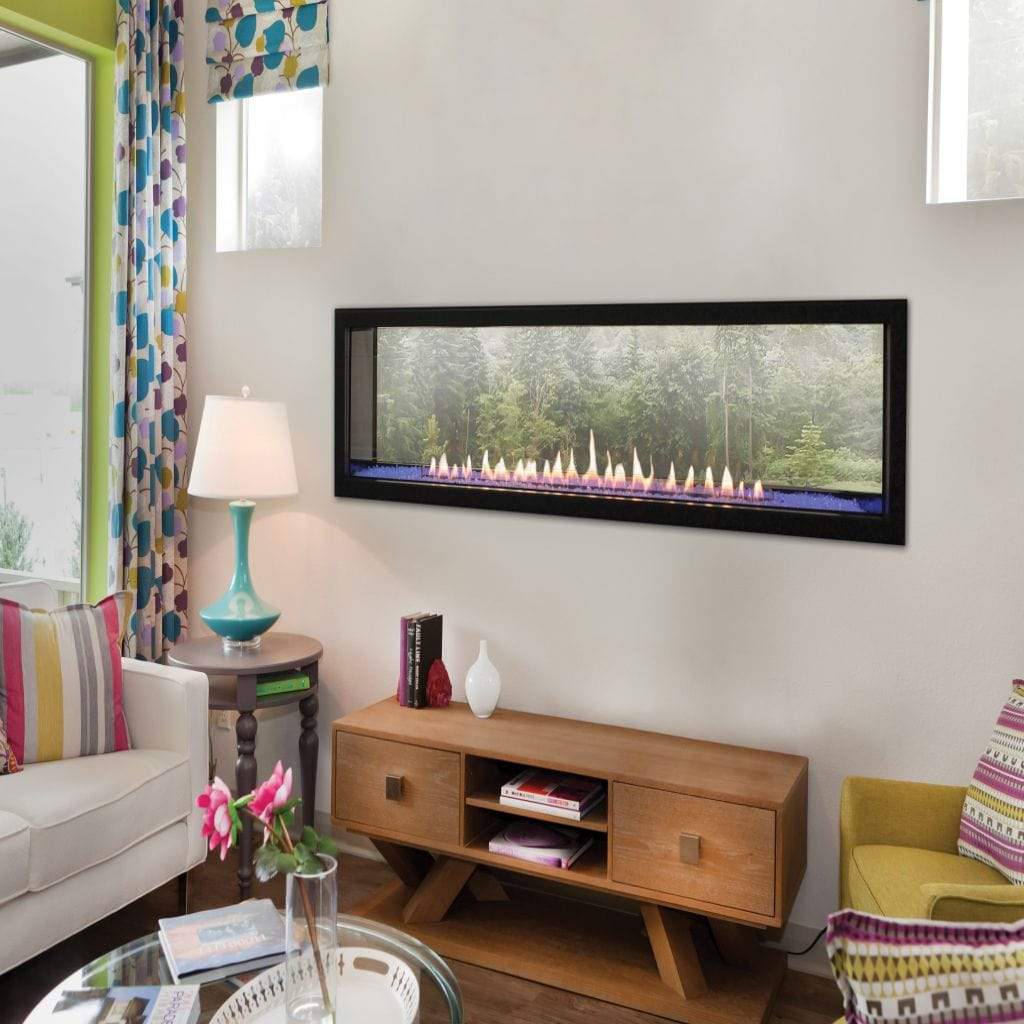

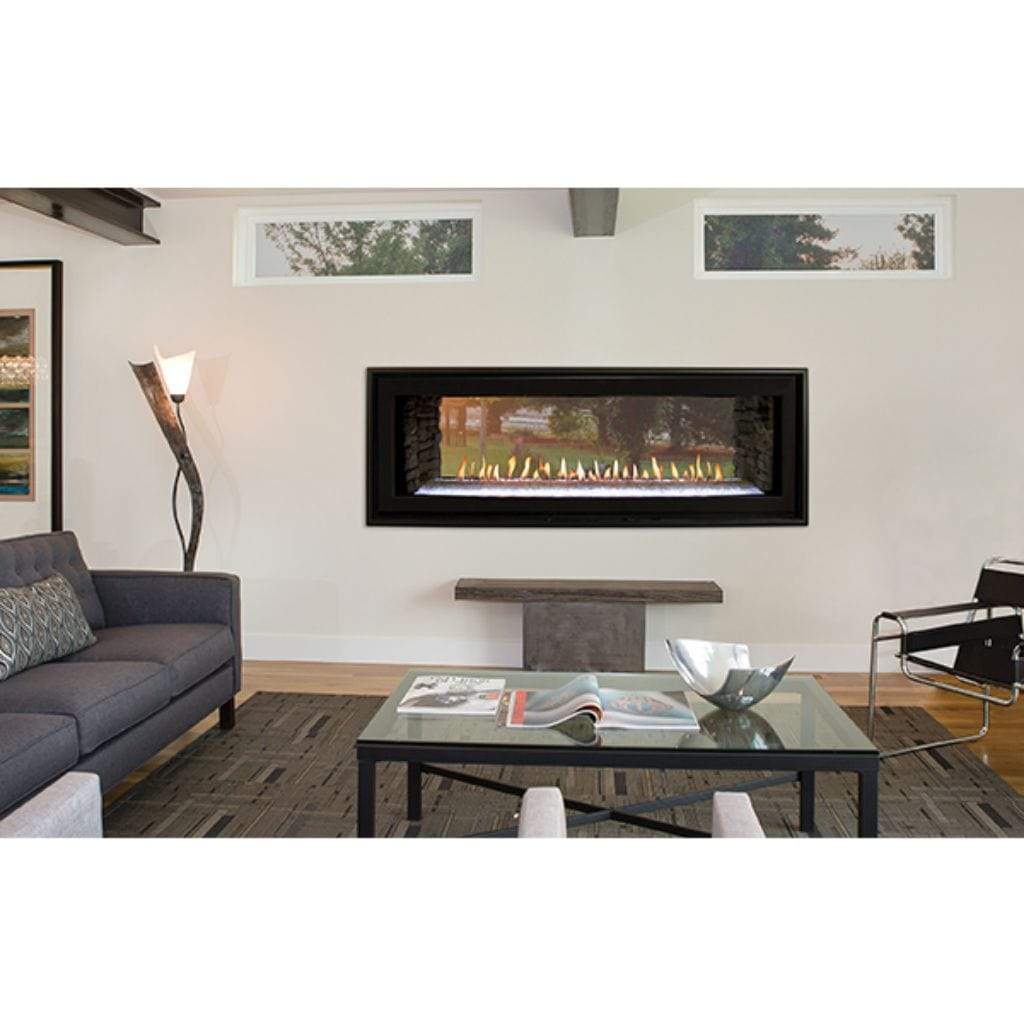

The new Boulevard 48 Direct-Vent See-Through fireplace features a true 48-inch viewing area, fully recessed burner, and white LED underfloor lighting. This system installs in an interior wall to brighten adjoining rooms – or in an exterior wall with the optional stainless steel outdoor kit for a beautiful view, indoors and out. Customize the look with liners, logs, fronts, and decorative glass.

Ceramic Glass: 13 x 48
Venting: 5 x 8 Top Vent Only//Requires 12-inch min. vent rise
Framing 51-3/4 H x 68 W x 19-1/2 D (indoor wall)
Framing 51-3/4 H x 68 W x 21-1/4 D (outdoor wall)

Includes:

• Multi-Function Remote to control burner and white LED accent lighting
• Ceramic Glass
• Barrier Screen
• Noncombustible Board for top (x2)

Requires:

• Liner
• Decorative Crushed Glass (8 sq.ft. required, additional decorative media may be added as accent)

This fireplace installs as -

Conventional See-Through on an interior wall. Requires finishing to the fireplace opening on both sides with plaster/tile/stone/brick - with or without decorative frames.

Indoor/Outdoor See-Through on an exterior wall. Requires finishing to the fireplace opening on
the interior side with plaster/tile/stone/brick - with or without a decorative frame.
Exterior wall requires special framing and the Exterior Decorative Front (DFED489SS)

FEATURES

• Includes Multi-Function Remote
• Barrier Screen
• Requires Purchase of Liner
• Ceramic Glass
• Requires + 24-lbs of media, sold separately
• Interior or Interior/Exterior Application
• Direct Vent Multi-Function Remote Control with Variable Thermostat Remote Control
• 13 x 48 Viewing on both sides, 5x8 Venting (top only)

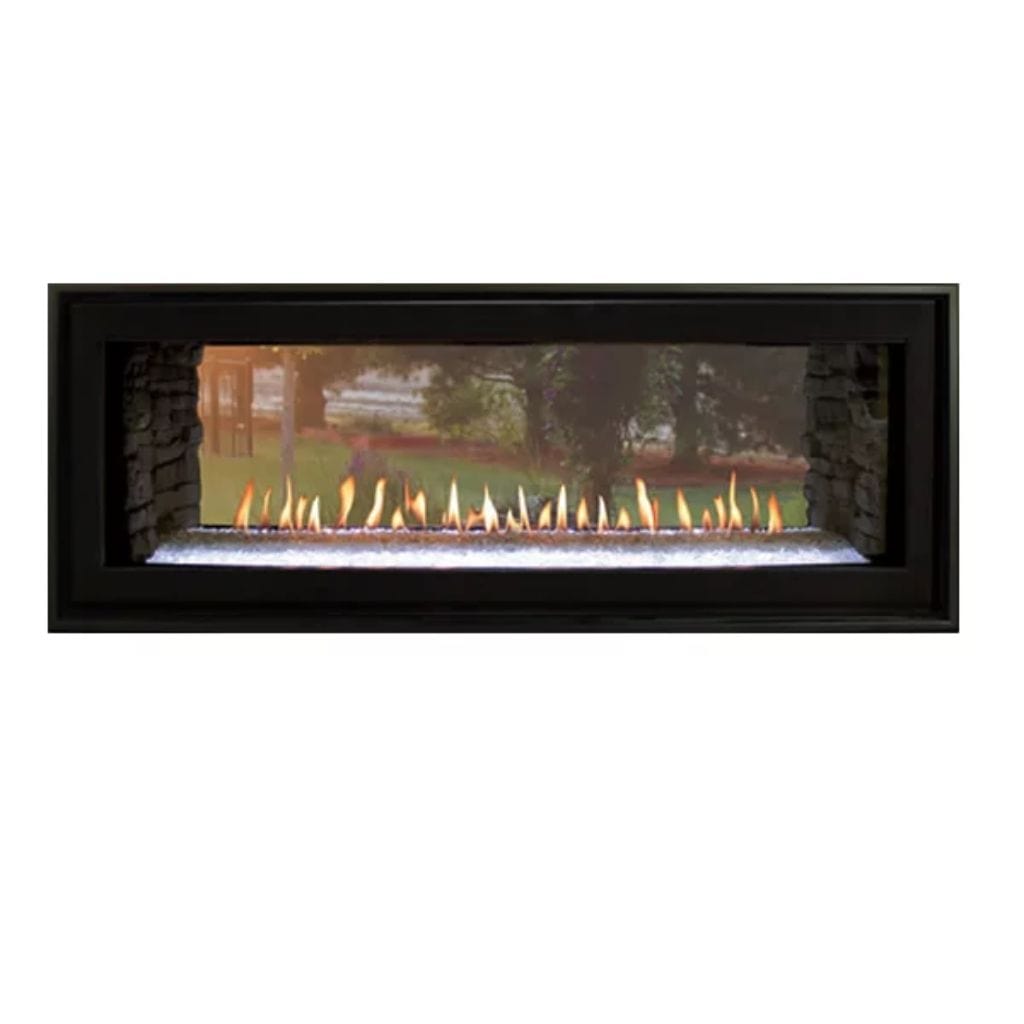

*Please Note: Shown with Ledgestone Liner, Matte Black Trim Kit, and Clear Frost Crushed Glass (all purchased separately). Check all these accessories in OPTIONS & ACCESSORIES section.

*Please Note: Upgrade your fireplace burning display with given optional media options. Clear, Copper, or Bronze are required to allow the lighting to show through. Other Colors as accent only

CA Residents: See Prop 65 WARNING.

OPTIONS & ACCESSORIES

Click to see Liner Kits

	Ledge Stone Liner Type: Liner Finish: Ledge Stone
	Black Porcelain Liner Color: Black Reflective quality amplifies the flames, making the fire appear larger Simple assembly can be completed after fireplace installation Durable ceramic coating over steel will not chip or fade

Exterior Frame

Stainless Steel Frame for Exterior Installation Size: 48 Inches Color: Stainless Steel Optional accessory Exterior decorative front Stainless steel construction For indoor/outdoor installations

Accessories

7-piece Ceramic Fiber Log Set, Rocks and 5 Stainless Steel Coils Size: 48 Inches Fireplace Type: Standard Vent Type: Vented Includes a unique assortment of ceramic fiber logs and stones, plus coiled slivers of stainless steel that react to the light and flames to bring your fireplace to life Accompanied with 5 stainless steel coils

Click to see Decorative Media

	Glacier Ice Decorative Glass Droplets Model: DG1GC Designed for use with contemporary gas burner systems For use in a single layer on glass burner trays Install only to manufacturer specifications Reflective nature amplifies burner flames
	Sangria Luster Decorative Glass Droplets Model: DG1SL Designed for use with contemporary gas burner systems For use in a single layer on glass burner trays Install only to manufacturer specifications Reflective nature amplifies burner flames
	Black Polished Crushed Glass Model: DG1BKP Covers burner ports and provides a unique appearance Install only to manufacturer specifications Reflective nature amplifies burner flames
	Blue Clear Crushed Glass Model: DG1BUC Covers burner ports and provides a unique appearance Install only to manufacturer specifications Reflective nature amplifies burner flames
	Clear Frost Crushed Glass Model: DG1CLF Covers burner ports and provides a unique appearance Install only to manufacturer specifications Reflective nature amplifies burner flame
	Copper Reflective Crushed Glass Model: DG1BCR Covers burner ports and provides a unique appearance Install only to manufacturer specifications Reflective nature amplifies burner flames
	Bronze Reflective Crushed Glass Model: DG1BZR Covers burner ports and provides a unique appearance Install only to manufacturer specifications Reflective nature amplifies burner flames
	Decorative Stone Assortment Model: DR1FMA Designed for use with contemporary gas burner systems Can be used on conjunction with fire glass for a unique presentation Install only to manufacturer specifications Varied colors and textures Durable heat resistant ceramic construction and dyes
	Decorative Pebble Assortment Model: DRFPA Designed for use with contemporary gas burner systems Can be used on conjunction with fire glass for a unique presentation Install only to manufacturer specifications Varied colors and textures Durable heat resistant ceramic construction and dyes

Click to see Decorative Fronts Options

	Forged Iron Front, 3 inch Color: Black / Distressed Pewter / Oil-Rubbed Bronze 3-inch wide perimeter frame width Handsome and rustic distressed iron construction Capable of adjusting from 1/4 inch to 1 1/2 inches in depth Conceals unfinished edges of the fireplace finish material
	Matte Black Trim Kit, 1 inch Color: Black Trim kit features a beveled design that is adjustable Provided in an attractive black finish Hides the edges of the finishing material Adjusts from 1/4 inch to 1 1/2 inch depth
	Pewter Trim Kit, 1 inch Color: Hammered Pewter Decorative adjustable front in a hammered pewter finish Capable of adjusting from 1/4 inch to 1 1/2 inches in depth Conceals the edges of the finishing material 1-inch frame width
	Beveled Frame Color: Black / Nickel / Bronze 1 1/2 inches thick Adds a decorative frame to the front of your fireplace For Boulevard direct-vent fireplaces Comes in textured black, brushed nickel, or oil-rubbed bronze finish

DOWNLOADS

• Boulevard Direct-Vent Linear See-Through DVLL48SP - Brochure
• Boulevard Direct-Vent Linear See-Through DVLL48SP - Installation Manual
• Boulevard Direct-Vent Linear See-Through DVLL48SP - Owner's Manual
• Boulevard Direct-Vent Linear Forged Iron Frame
• Boulevard Direct-Vent Linear Beveled_Frame
• Accent Light for DVLL48 & DVLL36 (LK9-1)
• Outdoor Kit (DFED489SS) for DVLL48SP
