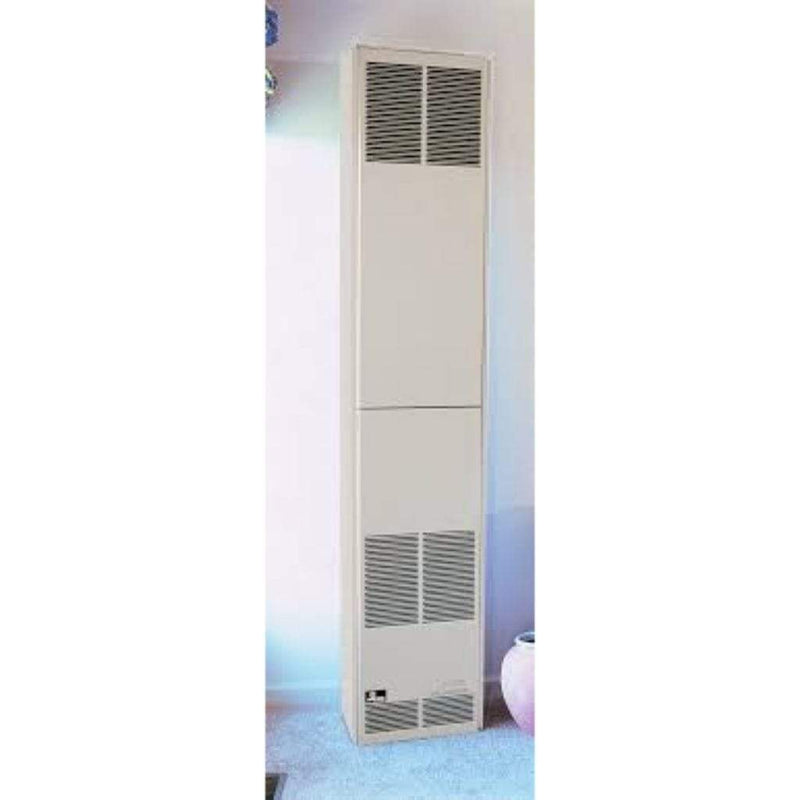

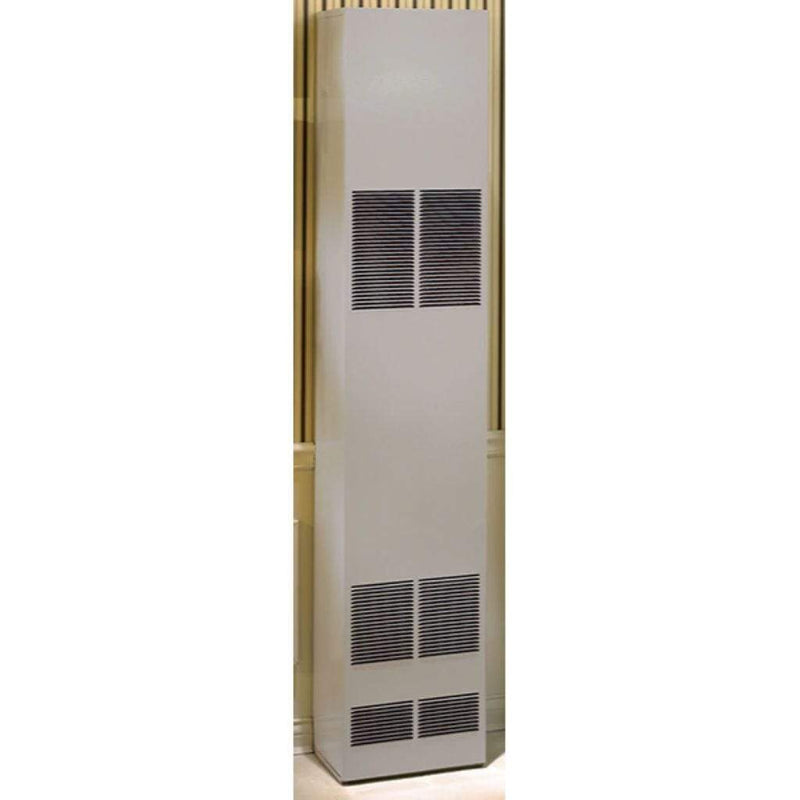

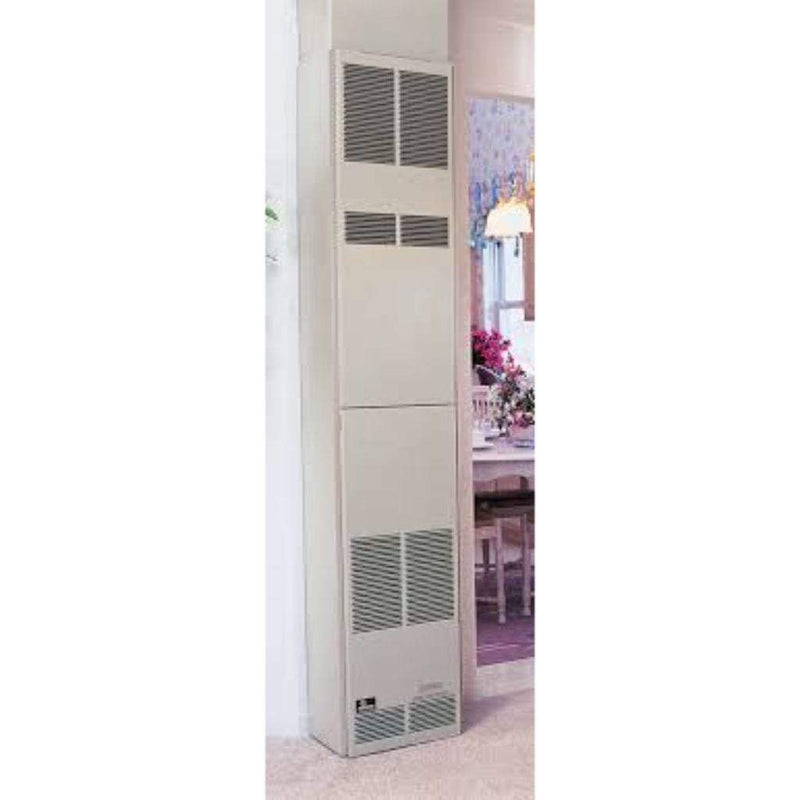

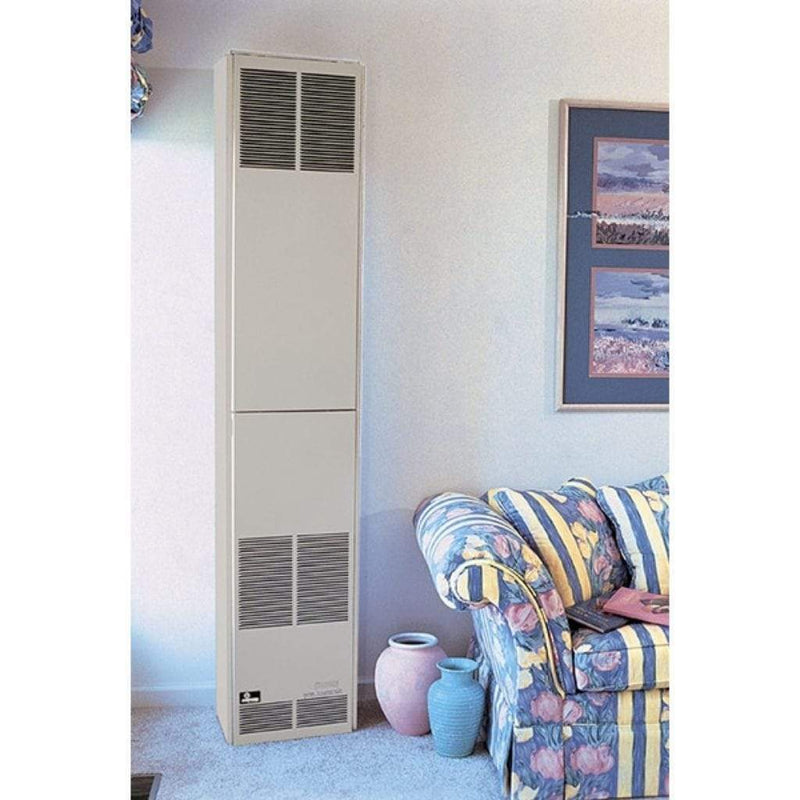

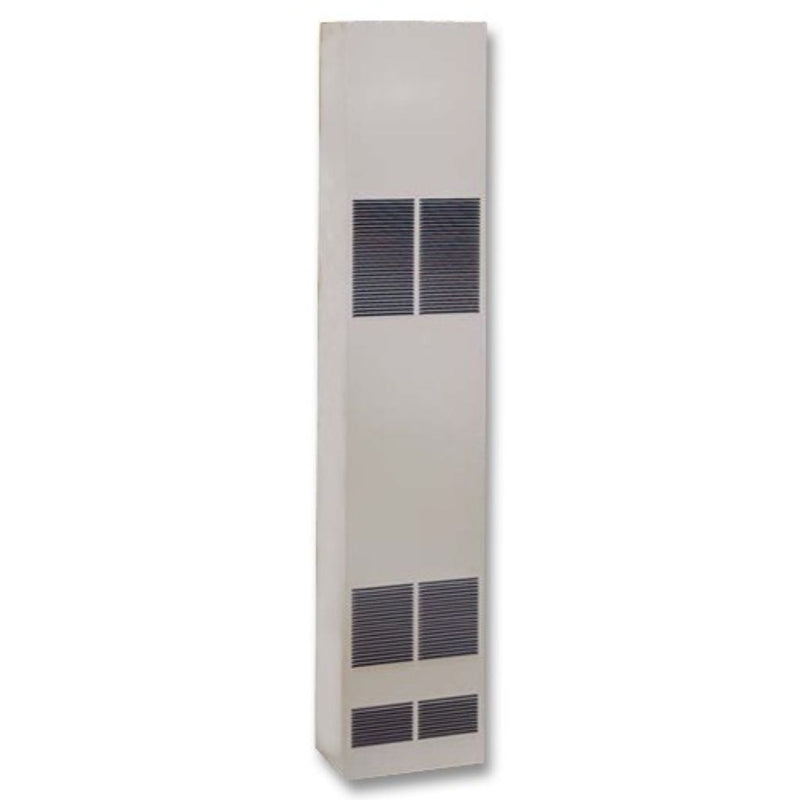

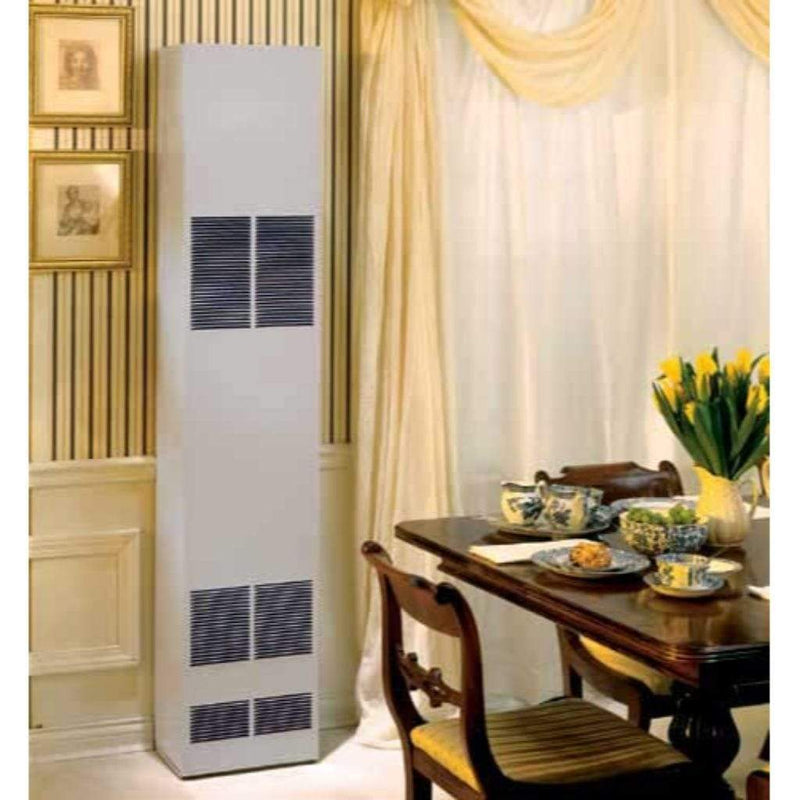

Empire 72" DVC35IPX Intermittent Pilot Direct-Vent Counterflow Wall Furnace

Empire 24V Wall Thermostat Direct-Vent Counterflow Wall Furnace with Intermittent Pilot is available in DVC35IPX (35,000 BTU'S) and DVC55IPX(55,000 BTU'S) models.

Direct-Vent systems mount on an outside wall and have a vent-within-a-vent system to draw in outdoor air to support combustion and exhaust flue products to the outdoors. The vent cap installs on the outside wall of the home. Because they do not draw your already-heated room air to support combustion, Direct-Vent systems are among the most efficient of the vented heaters. A Direct-Vent system may be installed as your home’s primary heating system.

These Direct-Vent Counterflow Wall Furnaces may be recessed between standard wall studs and can be installed on an outside wall. Provides total comfort for a fraction of the cost of electric heat. Matchless pushbutton piezo ignition for manual operation; also works with optional thermostats or other remote controls. Front panels remove for cleaning and servicing. Counterflow design circulates warm air at floor level.

Include: DV1273 Vent Kit

Thermostat is not included.

*Please Note: This unit includes vent components required for complete installation. Factory supplied vent components must be used. Locally sourced or separately purchased vent components should not be used and may negatively impact the performance of this appliance.

Specifications:

• Dimensions: 14.12" (W) x 10.37" (D) x 72.5" (H)
• Weight: 107.00 lbs

Features:

• BTU's: 35,000
• Fuel Type: Liquid Propane or Natural Gas
• Ignition Type: Intermittent Pilot
• Color: Beige
• Thermostat not included
• Choose Standing Pilot or Electronic Intermittent Pilot (saves even more energy)
• Front Panels Remove for Cleaning and Servicing
• Counterflow Blower Circulates Warm Air at Floor Level
• Multi-Room Heating Capacity with Optional Outlet Kits
• Up to 76% A.F.U.E. efficient
• Made in USA

CA Residents: See Prop 65 WARNING.

Options & Accessories

• Empire Heating Systems TRW Wireless Remote Wall Thermostat
• Empire Heating Systems TDV1 Digital Wall Thermostat Wired
• Empire Heating Systems T24V Wall Thermostat - Wireless
• Empire Heating Systems VSK2 Slim-Line Vinyl Siding Kit
• Empire DV822 Vinyl Siding Vent Kit for Empire Round Vent Kit
• Empire SOK1 10-in Side Outlet Kit
• Empire SOR1 Side Outlet Register
• Empire DV1348 Natural Gas to Liquid Propane Conversion Kit
• Empire DV1350 Liquid Propane to Natural Gas Conversion Kit

Downloads:

• Product Brochure
• Owner's Manual & Installation Instructions
