Stainless steel construction, an integrated LED lighting system, and a 55,000 Btu burner ensure that Empire’s 48-inch Outdoor Linear See-Through Fireplace will light up your patio party for any occasion. Or choose the 60-inch model with 65,000 Btu burner.

These see-through models conceal a gas burner beneath a large bed of clear-frost crushed glass. While the flames dance atop the bed of glass, the lighting system illuminates the glass from beneath. A glass deflector shield helps protect the flame from wind. (Optional taller deflectors are available for fireplaces installed in windier locations.)

A tilt-up cover conceals all controls – including pushbutton ignition and flame control knob with Hi, Medium and Low – plus intuitive buttons to control the changing pattern and color of the LED lighting. The buttons let you select from seven LED colors – Deep Blue, Royal Violet, Cardinal Red, Sea Green, Forest Green, Tranquil Blue, and White – and vary the intensity. Two “program” settings cycle through the colors automatically – either quickly or gradually.

Empire Carol Rose Manual Outdoor Linear See-Thru Fireplace is available in 48" and 60" sizes.

Features:

• Overall Dimensions: 51.75" (W) x 22.31" (D) x 40.81" (H)
• Weight: 198 lbs
• Type: See-Through Linear Fireplace
• Material: Stainless Steel
• Ignition System: Manual Electronic Ignition with AA Battery
• Max. BTUs: 55,000
• Min. BTUs: 35,000
• Fuel: Natural Gas or Liquid Propane
• Location: Outdoor
• Includes:
  • Includes Pre-programmed Color LED Lighting beneath burner
  • Manual Electronic ignition with AA battery
  • 3-Stage Manually variable flame height
  • Weather Deflector Glass Panels
• Ventless Firebox For Outdoor Installation
• Requires 8 sq ft. Decorative Crushed Glass

*Please Note: This item requires Decorative Crushed Glass (8 square feet required for 48") (Glass Drops or Droplets may be added to the area surrounding the burner.)

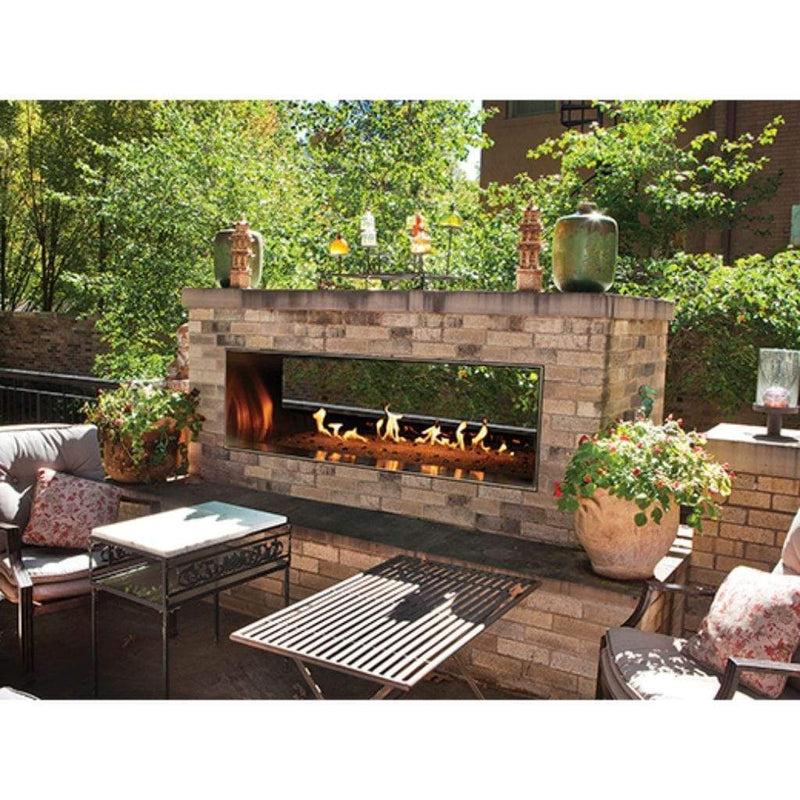

*Also Note: The bricks shown in the picture are not included with this product. This product is for the firebox itself, which must be built into a wall.

CA Residents: See Prop 65 WARNING.

Downloads

• Download User Manual
• Download Product Brochure
• Download Spec Sheet

Options & Accessories

Click to see Drain Tray

Material: Stainless Steel Type: Drain Tray Stainless steel tray allows water to readily drain Helps to prevent the growth of mildew and mold For use with Carol Rose 48 and 60 Inch Linear Fireplaces Protects burner and ignitor assembly from corrosion

Click to see Weather Door

Material: Stainless Steel Type: Weather Protector Door For use with Carol Rose Outdoor Fireplaces Protects fireplace when not in use

Click to see Wind Deflector Glass

Material: Stainless Steel Type: Wind Deflector Glass Fender Prevents Wind Related Flame Outages Clear Glass Does not Obstruct View of the Flames For use with Carol Rose 60 Inch Linear Fireplaces

Click to see Gas Supply Timer Options

	E-Stop Gas Timer, 1 to 150 min Type: Timer High-quality emergency-stop gas timer Provides extra safeguard to protect your home Automatically shuts off gas supply after 1 to 150 minutes for safety E-Stop Gas Timer, 1 to 60 min Type: Timer High-quality emergency-stop gas timer Provides extra safeguard to protect your home Automatically shuts off gas supply after 1 to 60 minutes for safety
	Material: Stainless Steel Type: Timer Compartment Fits: GT060 and GT150 E-Stop Gas Timers High-quality, weather-resistant cover

Fuel Conversion Kit Natural Gas to Propane Propane to Natural Gas For use with Manual Control For Carol Rose Outdoor Linear Gas Fireplace
