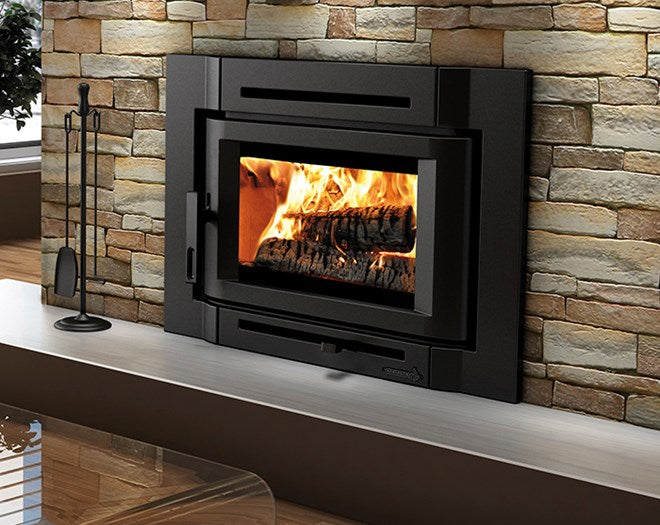

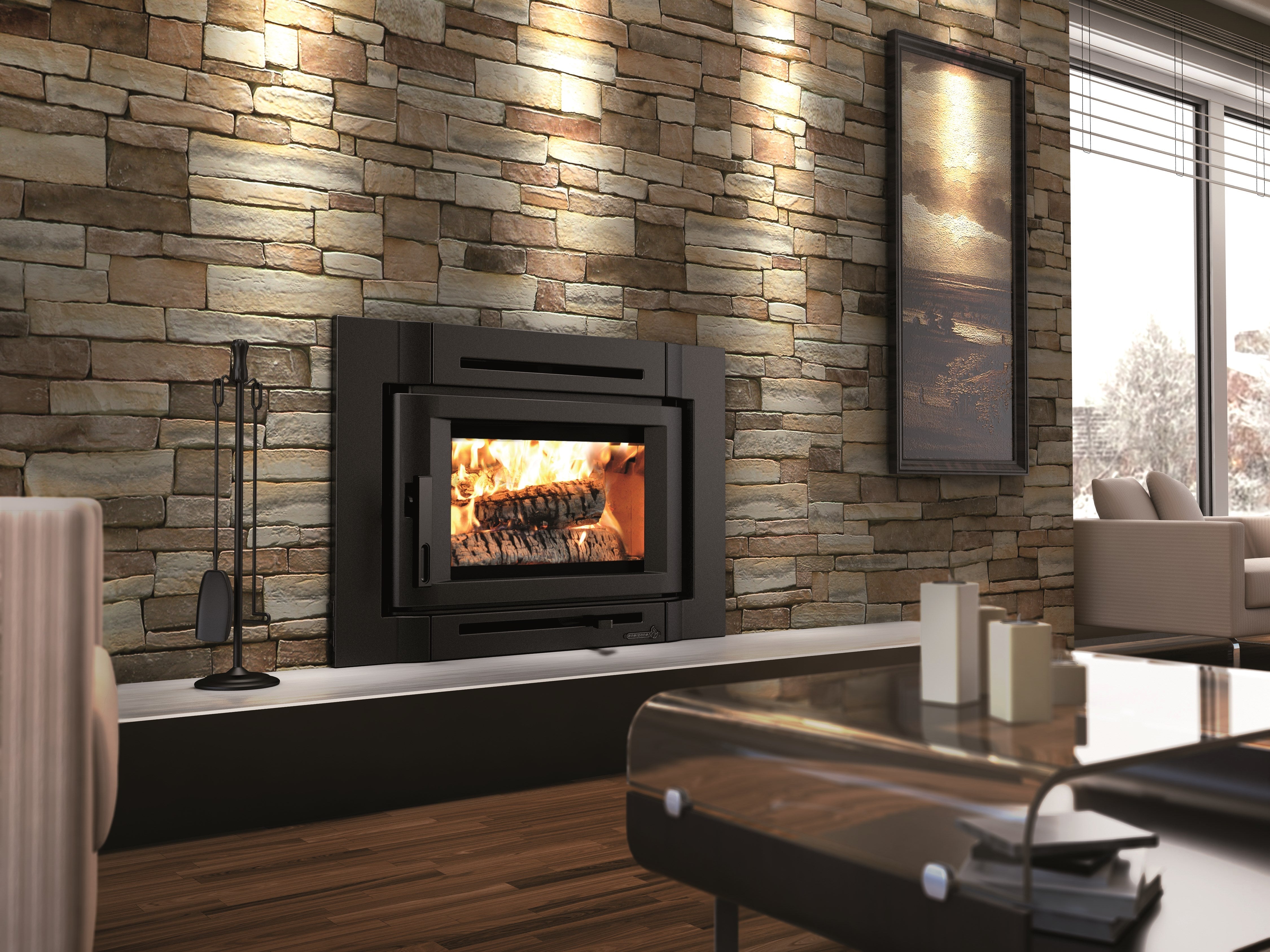

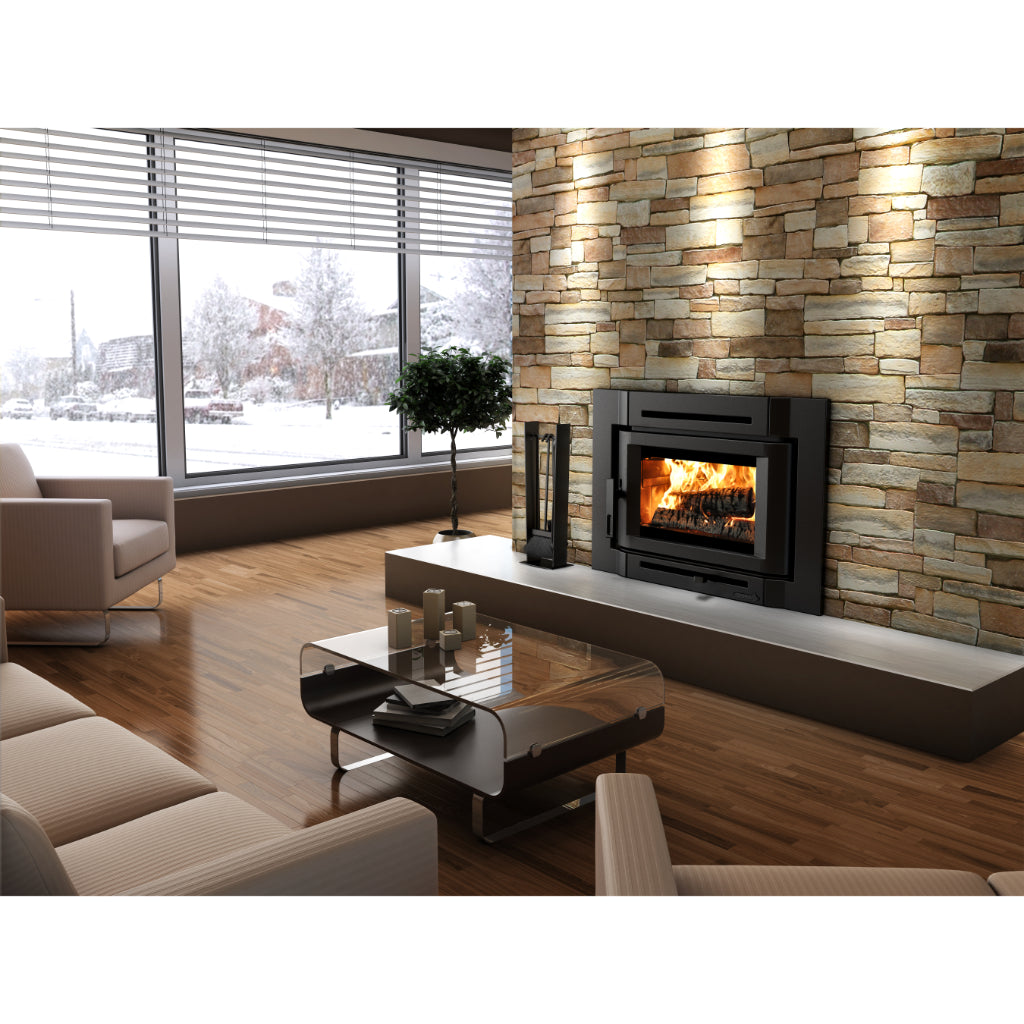

The Destination 2.3-I is really a blend of technological improvement and design advancement. Cast iron was the material of choice for the smooth contemporary surround and designed for a flush finish designed to be installed in a masonry fireplace. An optional backing plate is available for larger masonry openings. Maintenance of electrical components was made easy with the conception of a slick, drawer-like system to which the blower assembly attaches. The heat activated blower assembly (90 CFM) can be operated in automatic, manual or OFF mode.
APPROVED FOR THE ISLAND OF MONTREAL.
To install the optional projection kit AC01323, one of the optional faceplate backing plate kit AC01322 or AC01332 must be purchased separately to secure the projection kit to it.
Features
- Recommended heating area: 500 to 2,100 sq. ft.
- Firebox volume: 2.4 cu. ft.
- Maximum heat output (dry cordwood): 75,000 BTU/h
- Maximum log length: 20”
- Exterior dimensions (excluding faceplate): 28 3/8’’ W x 22 3/4’’ D x 23 3/8’’ H
- Minimum hearth dimensions (masonry opening): 28 7/8” W x 19 5/8” D x 23 3/4” H Combustion technology: Non-catalytic
- Included: 90 CFM blower with variable speed control
Specification
| Combustion technology | Non-catalytic |
| Maximum burn time | 8 h |
| High-efficiency certified appliance | Yes, EPA 2020 approved |
| Maximum log length | 20" |
| Log positioning | Loading over width |
| Chimney diameter | 6" |
| Flue outlet diameter | 6" |
| Type of chimney | CAN/ULC S629, UL 103 HT (2100 °F) |
| Minimum chimney height (feet) | 12' |
| Approved for a mobile home installation | No |
| Baffle type | C-Cast or equivalent |
| Shipping Weight | 478 lb (217 kg) |
| Door type | Single, glass with cast iron frame |
| Glass type | Ceramic glass |
| Glass surface – dimensions (Width X Height) | 18" x 11 7/8'' |
| Glass air-wash system | Yes |
| Premium quality blower included (CFM) | 90 |
| Overall dimension (Height) | 25" |
| Overall dimension (Width) | 35 7/8" |
| Overall dimension (Depth) | 22 3/4 |
| Door opening – dimension (Height) | 8 3/4" |
| Door opening – dimension (Width) | 17 1/2" |
| Firebox – dimension (Height) | 11 7/8" |
| Firebox – dimension (Width) | 21" |
| Firebox – dimension (Depth) | 16 3/4" |
| Firebox lined with refractory bricks for better heat distribution | Yes |
| Stainless-steel secondary-air system improving gas combustion | Yes |
| Adjustable threaded legs | Yes |
| Steel thickness – body | 3/16" |
| Steel thickness – top | 5/16" |
| USA standard (emissions) | EPA Method 28 |
| Fireplace opening – minimum (Height) | 23 3/4" |
| Fireplace opening – minimum (Width) | 28 7/8" |
| Fireplace opening – minimum (Depth) | 19 5/8" |
| Canadian Standard (emissions) | CSA B415.1-10 |
| USA standard (safety) | UL 1482, UL 737 |
| Canadian standard (safety) | ULC S628 |
| Tested and listed as per applicable standards | By an accredited laboratory (CAN/USA) |
| Warranty | Limited lifetime |
Appliance Performance
| Fuel type | Dry cordwood (16" recommended) |
| Recommended heating area-ft² |
500 - 2,100 |
| Overall firebox volume-ft³ | 2.4 |
| EPA loading volume-ft³ | 1.95 |
| Maximum heat output-dry cordwood | 75,000 BTU/h (22.0 kW) |
| Overall heat output rate < | 14,200 BTU/h (4.16 kW) to 44,500 BTU/h (13.04 kW) |
| Average overall efficiency (dry cordwood) |
72 % (High Heating Value) 77 % (Low Heating Value)) |
| Optimum overall efficiency | 79 % |
| Optimum heat transfer efficiency | 76 % |
| Average particulate emissions rate | 2.3 g/h |
| Average CO | 69 g/h |
Documents & Files
- Wood Products Brochure
- Destination 2.3-I wood insert install & owner's manual
- Destination 2.3-I dimensions
