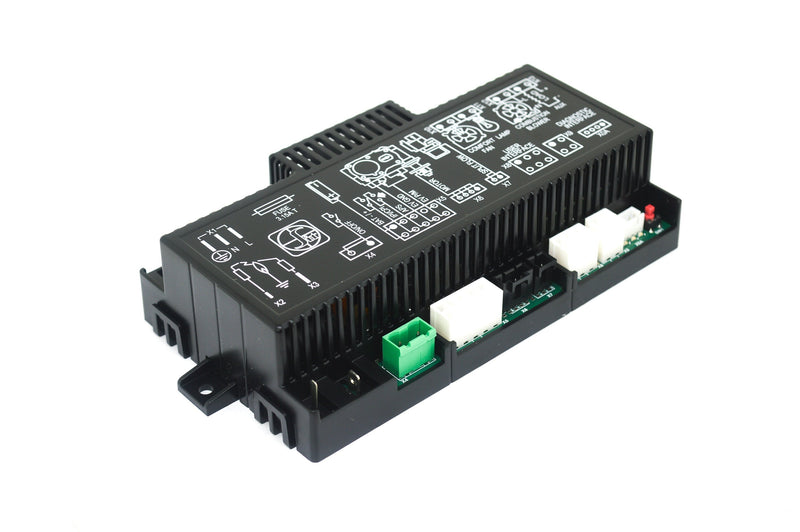

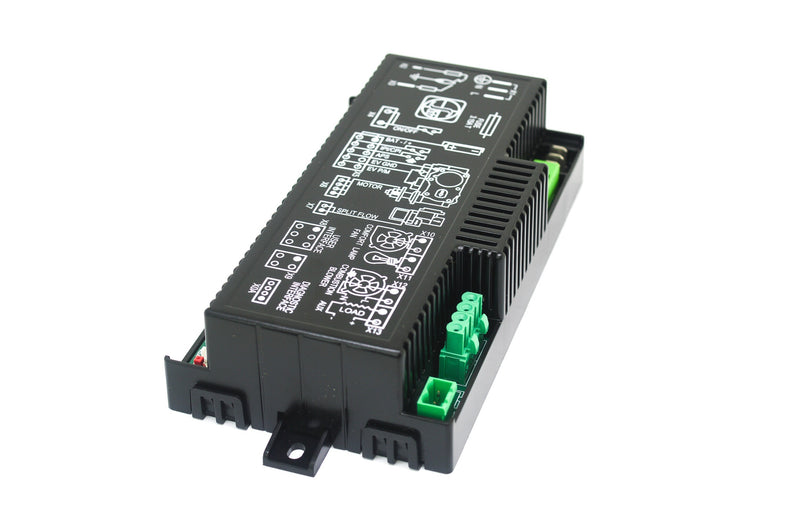

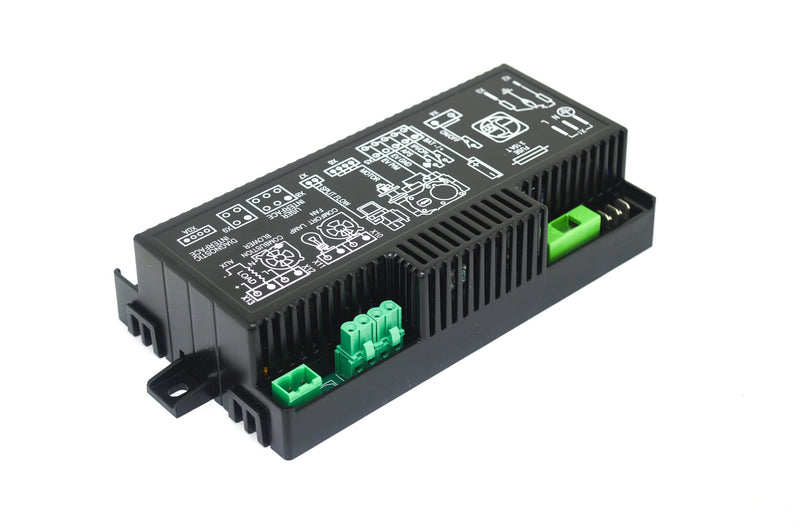

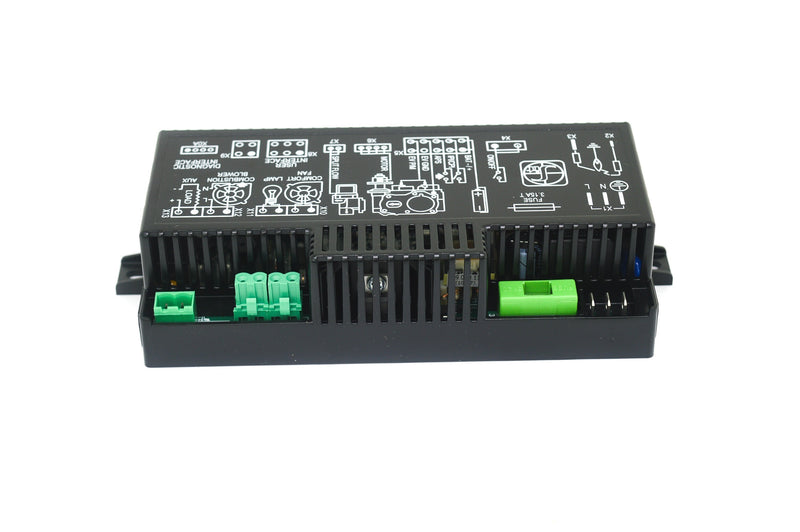

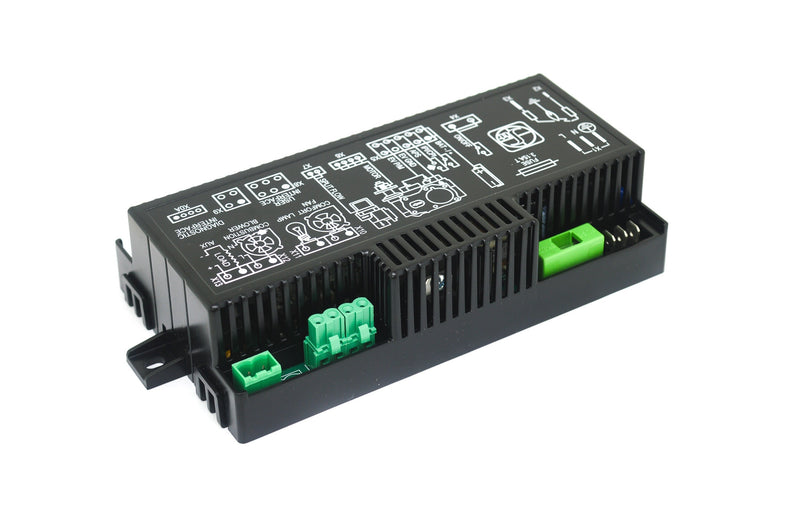

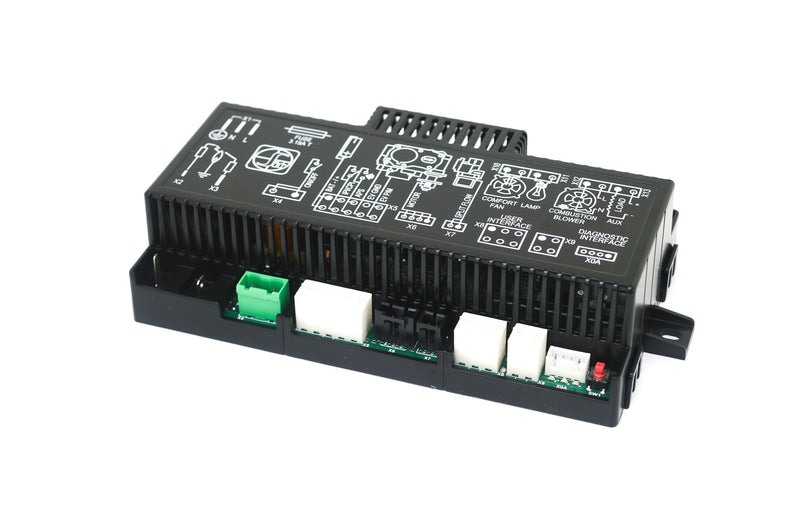

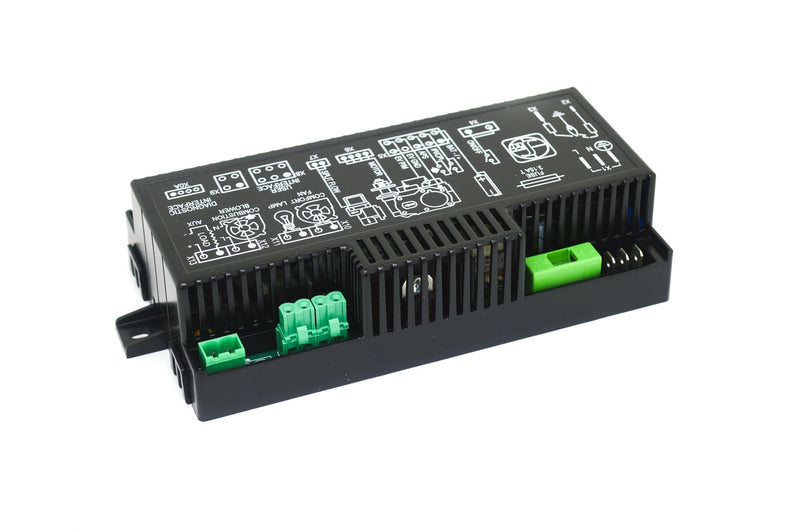

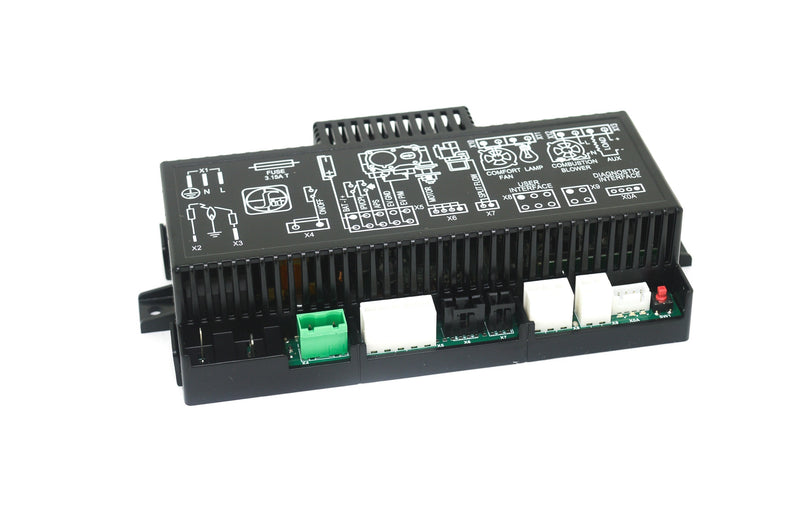

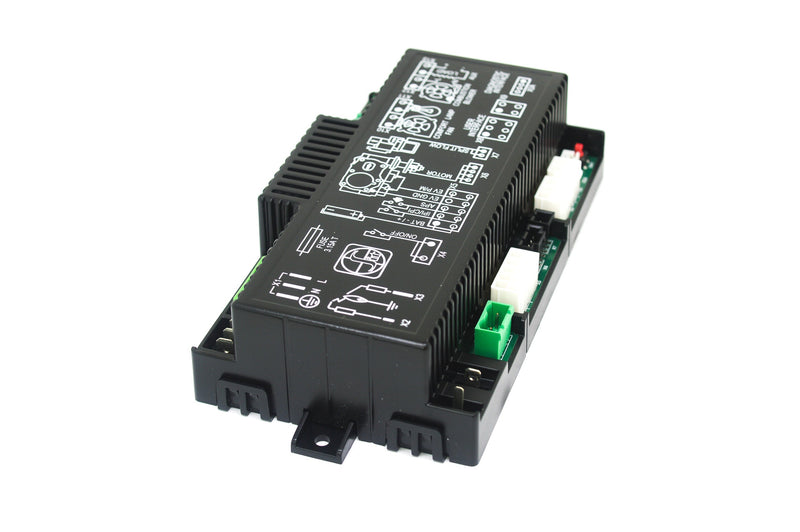

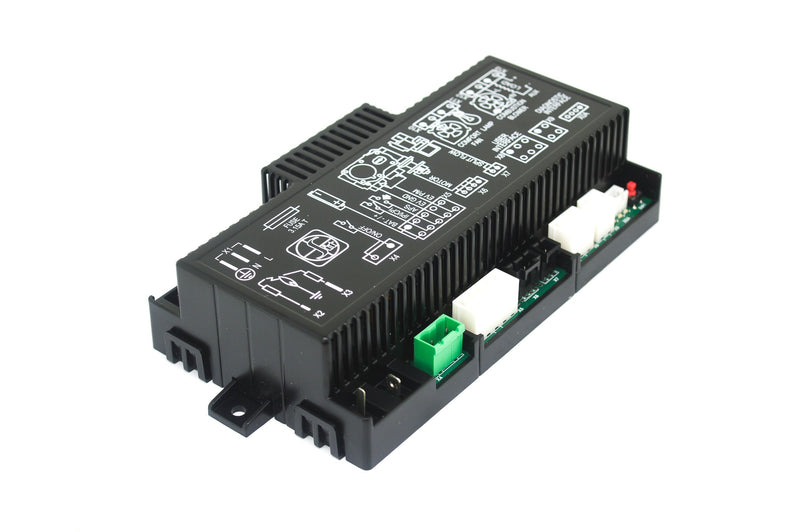

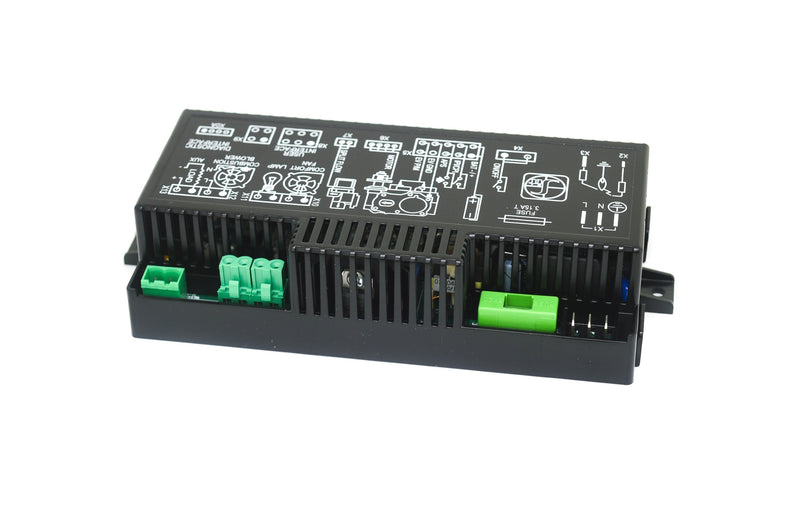

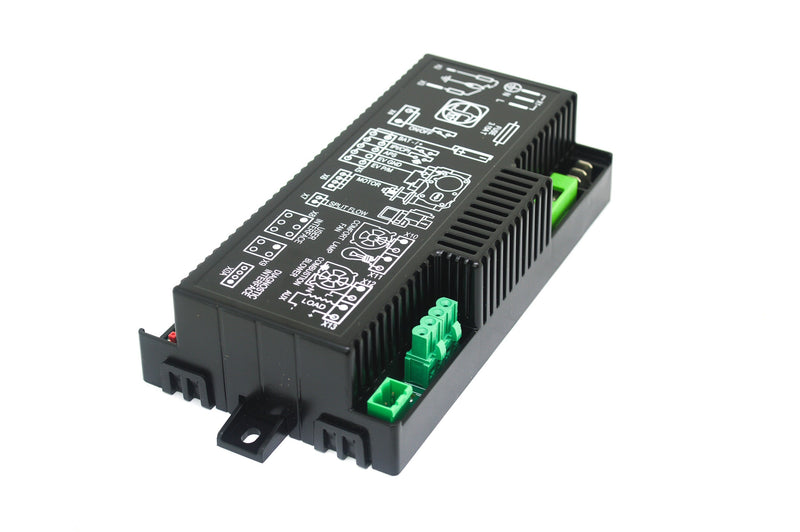

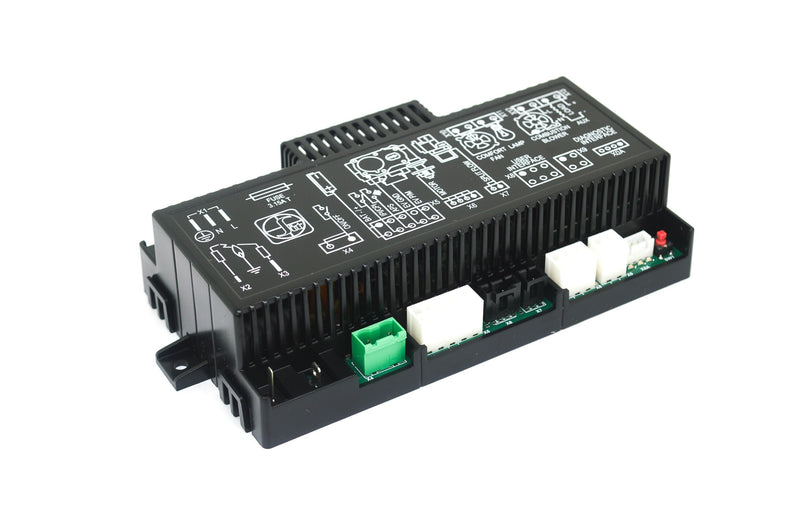

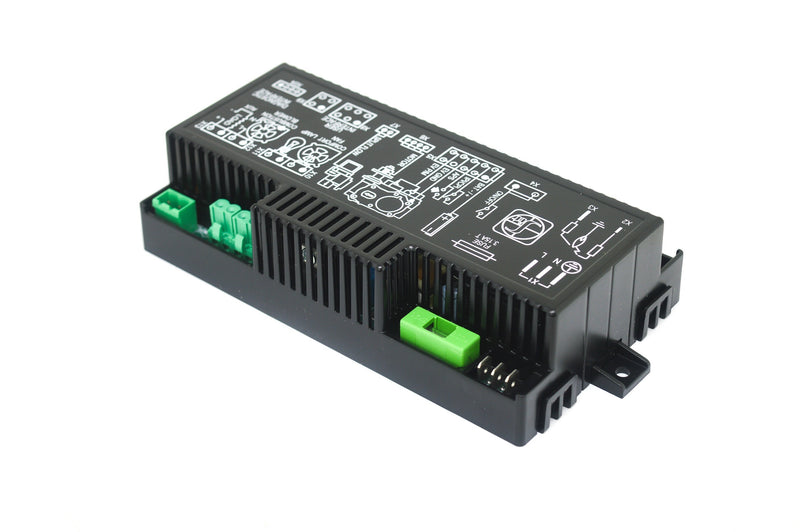

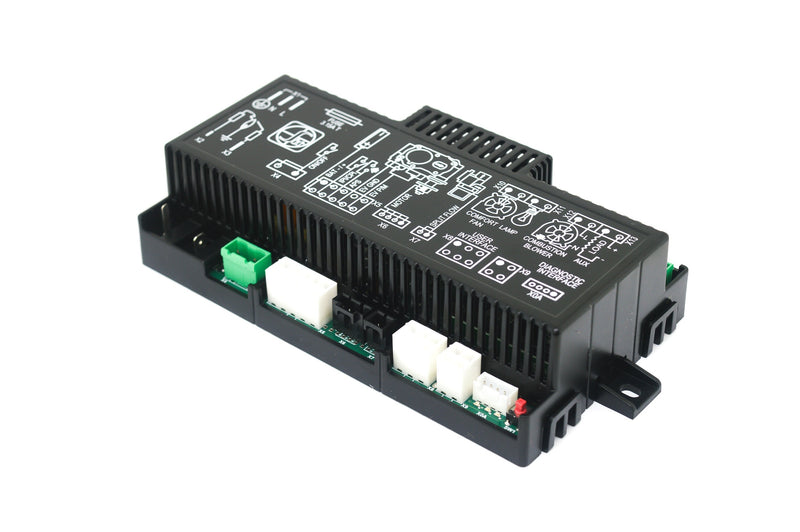

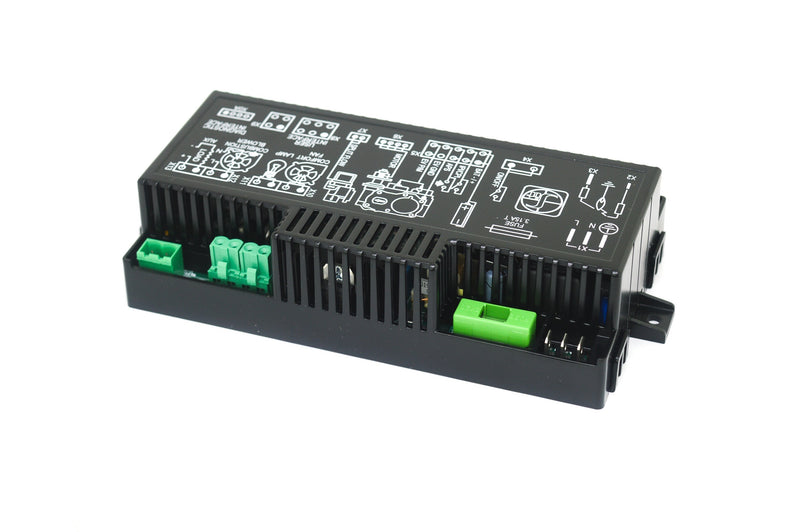

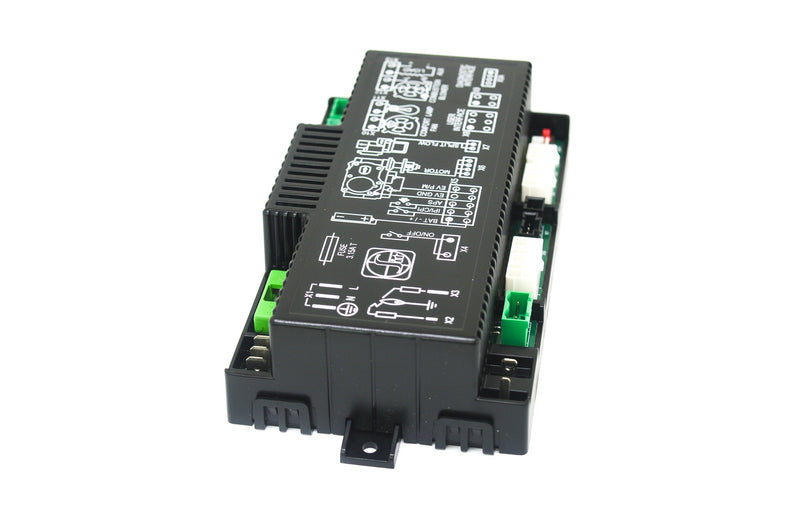

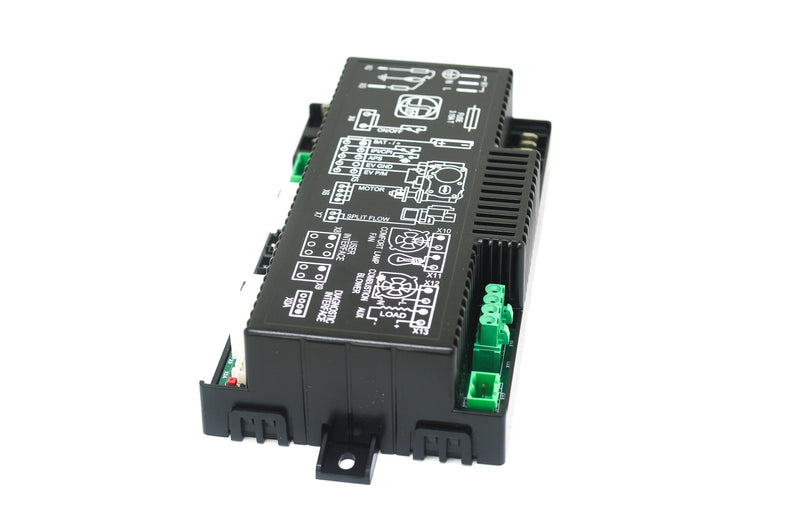

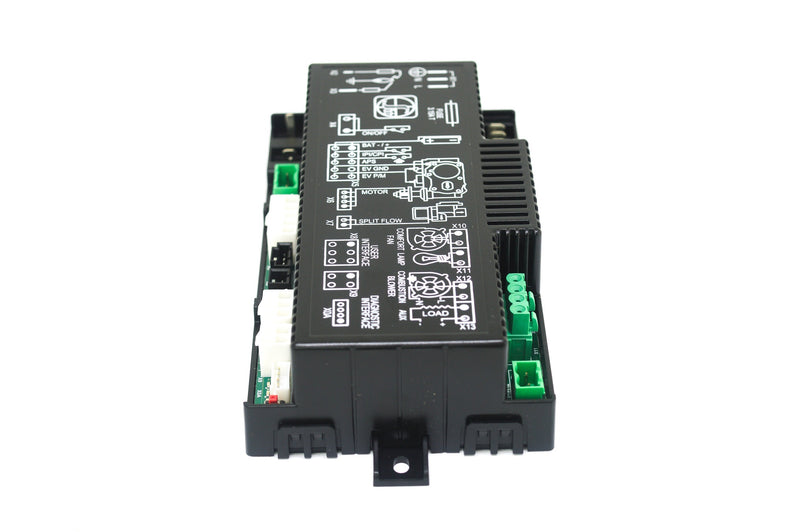

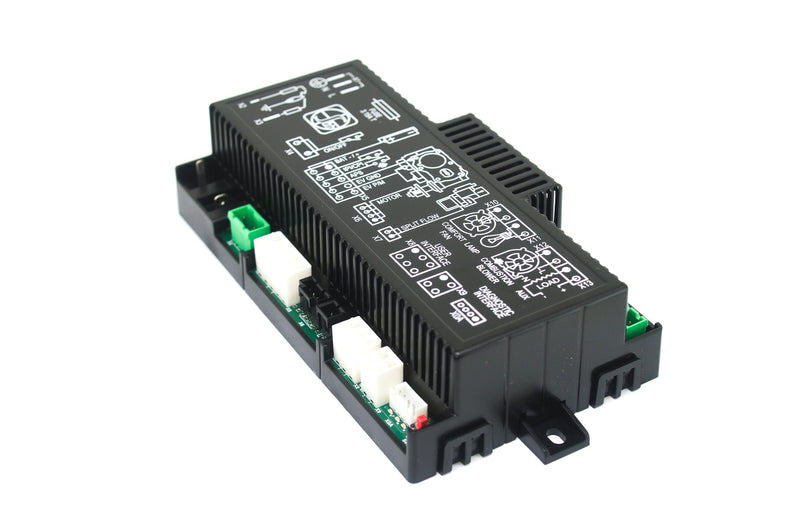

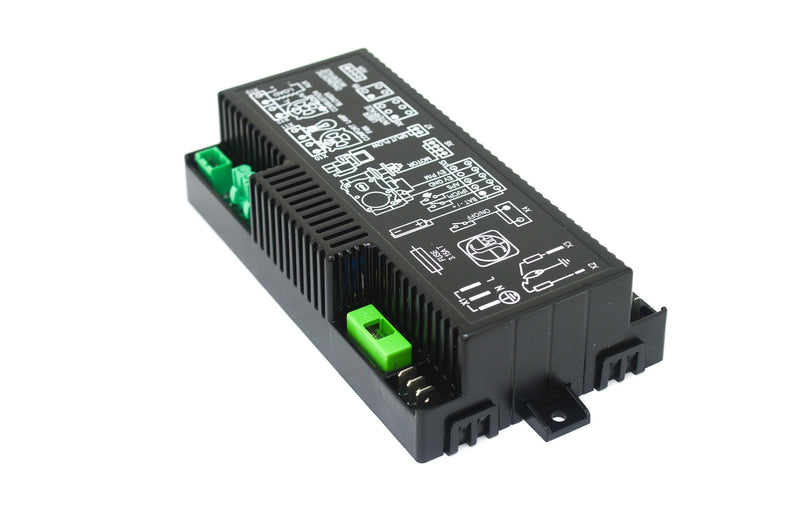

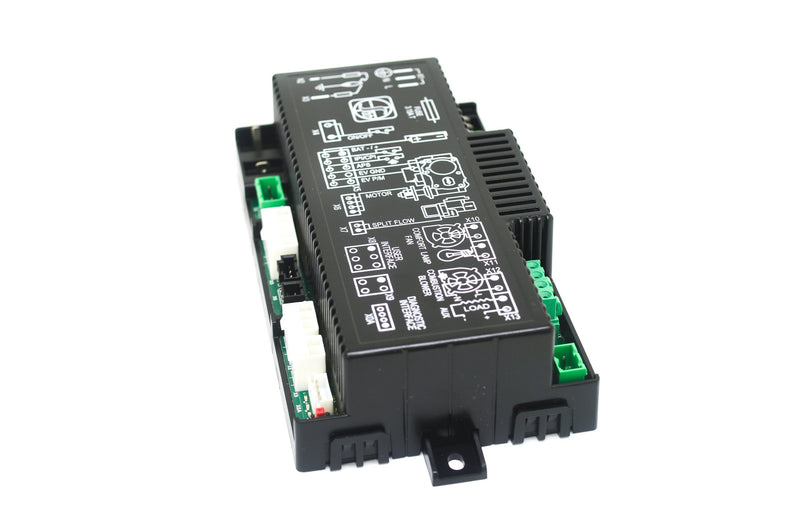

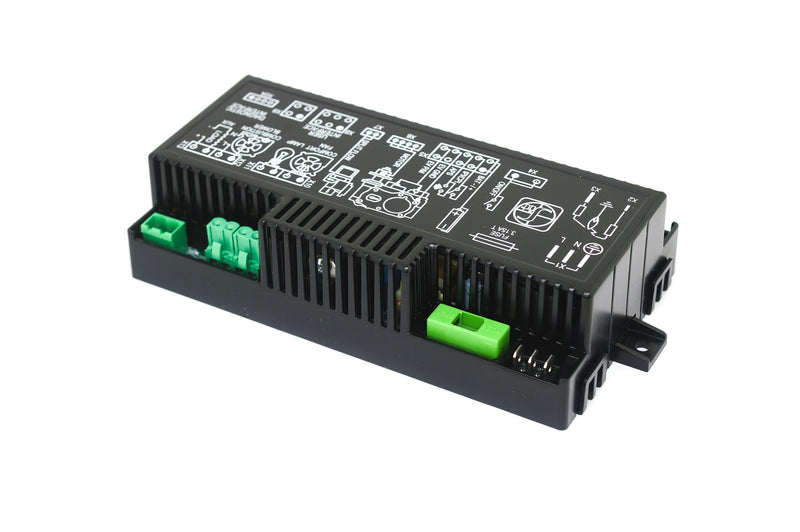

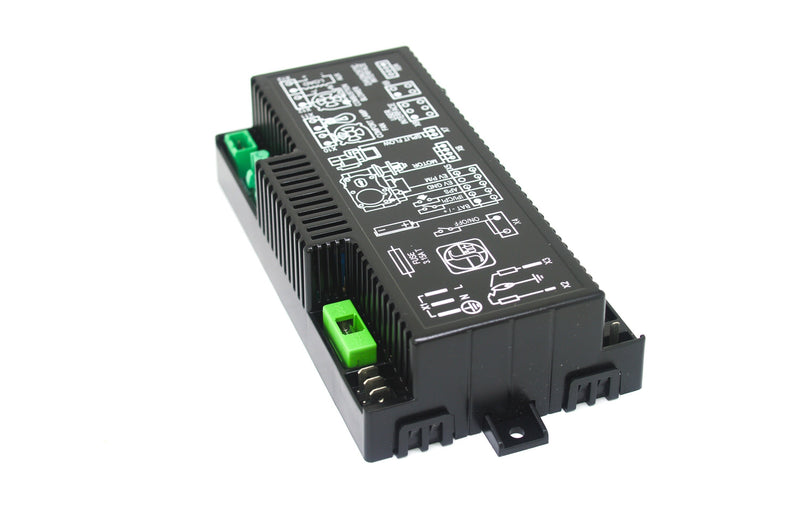

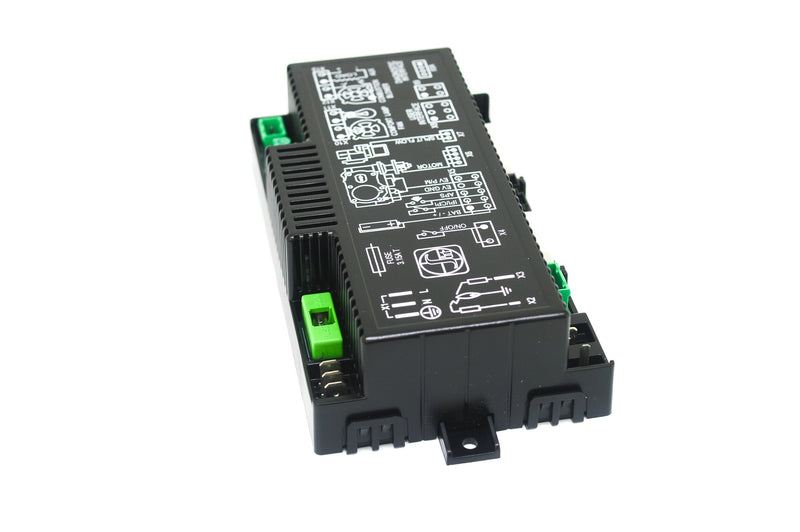

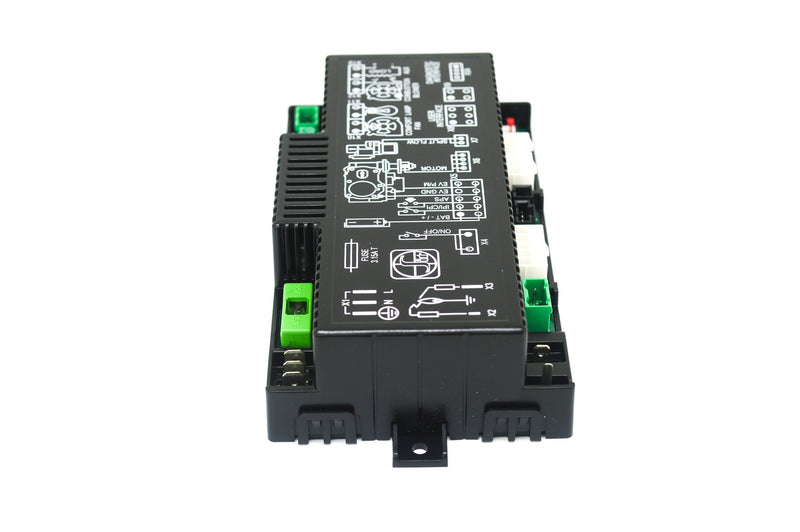

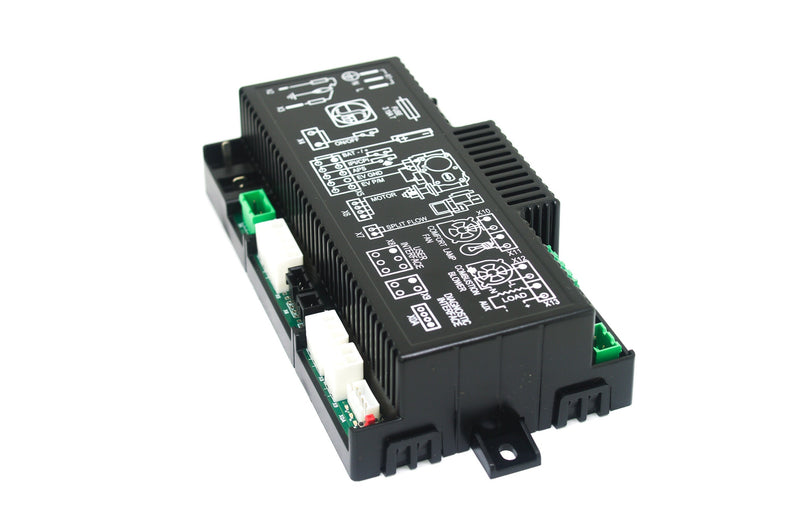

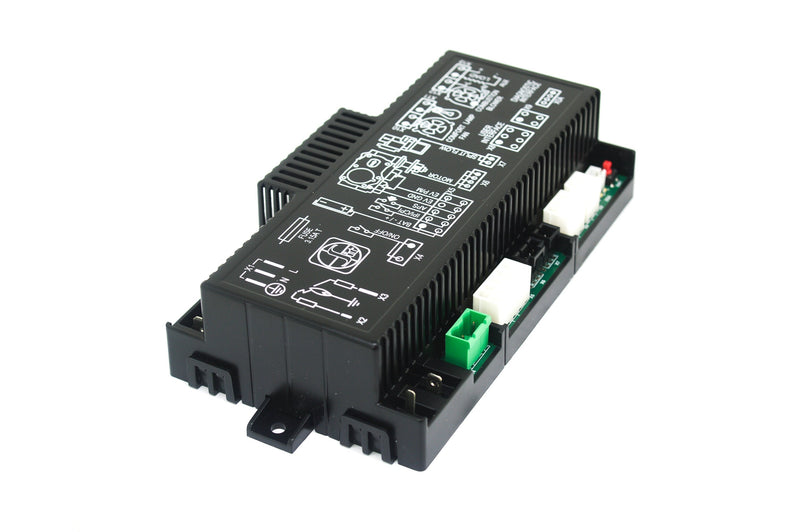

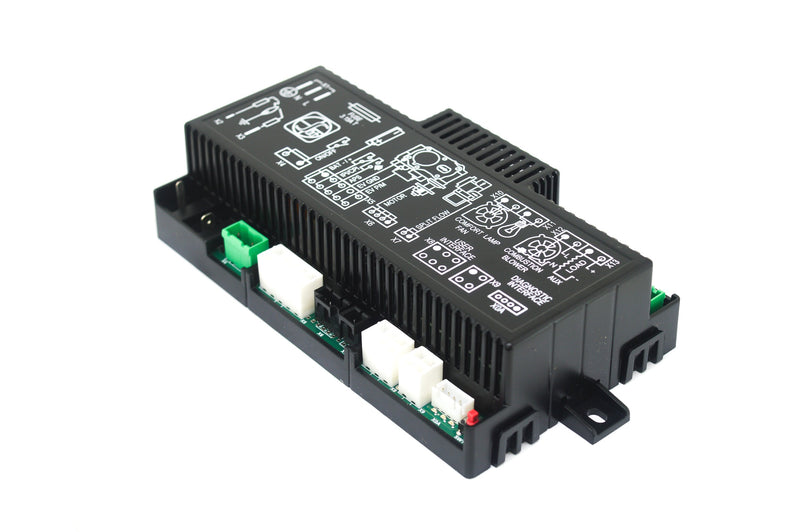

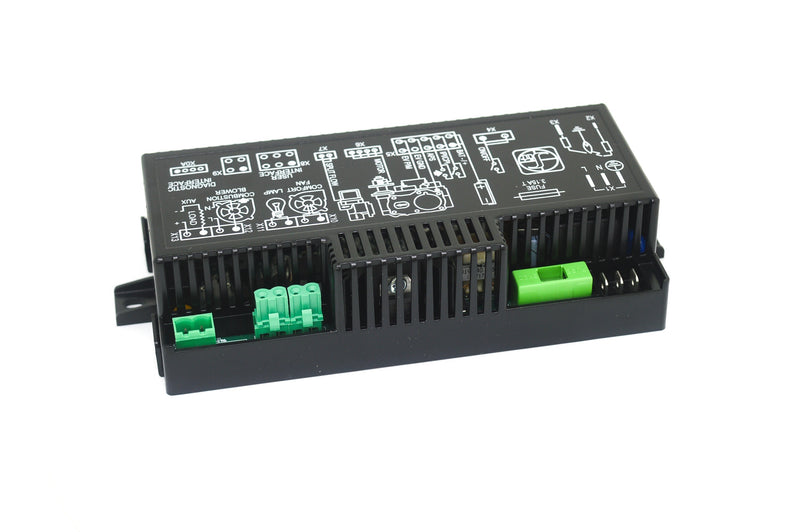

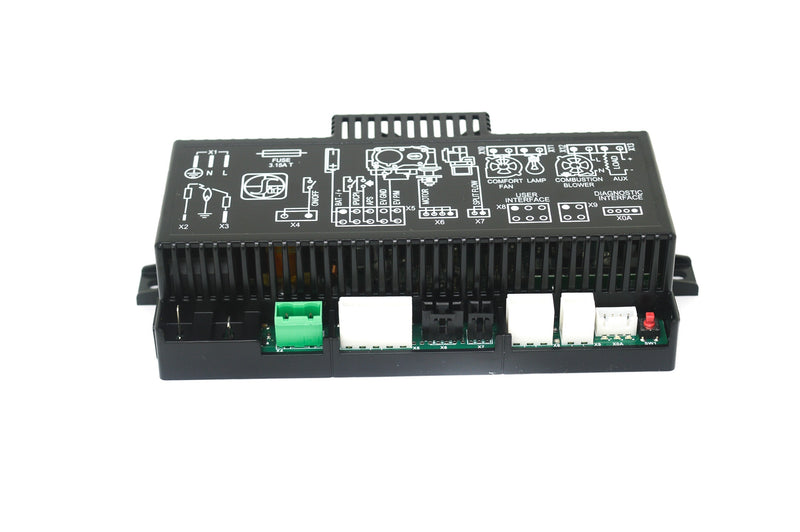

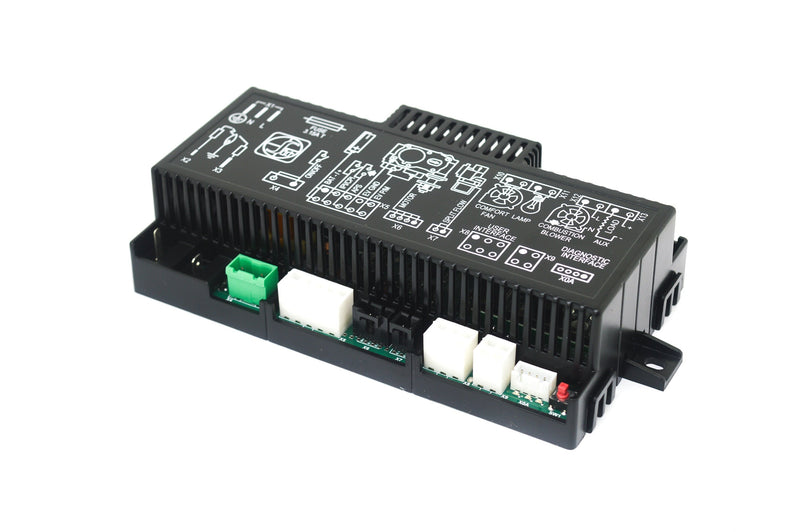

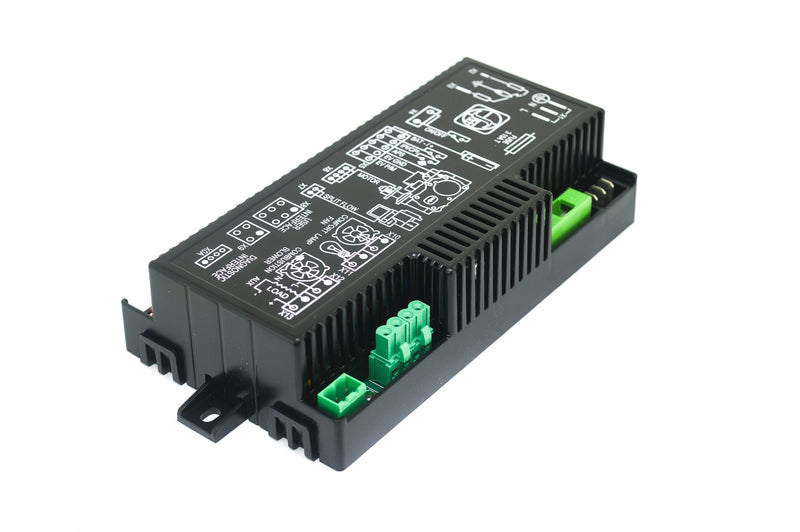

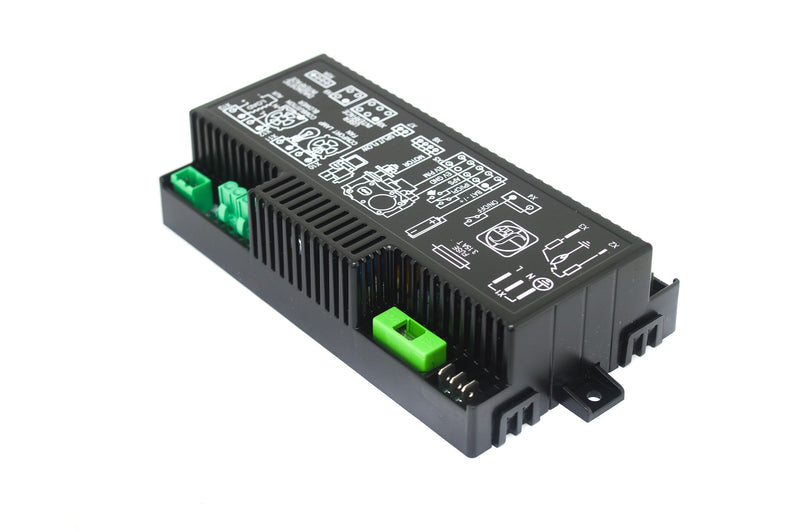

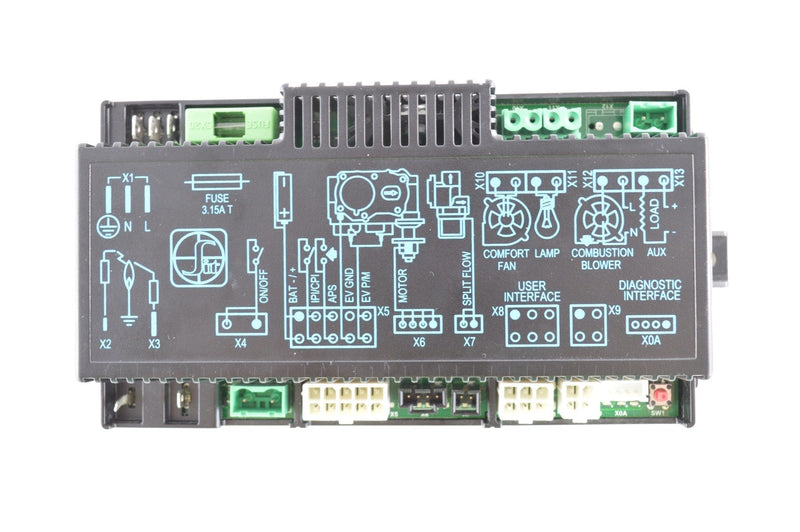

Sit Proflame 2 IFC control module
Do You Also Need the R12270 Jumper?

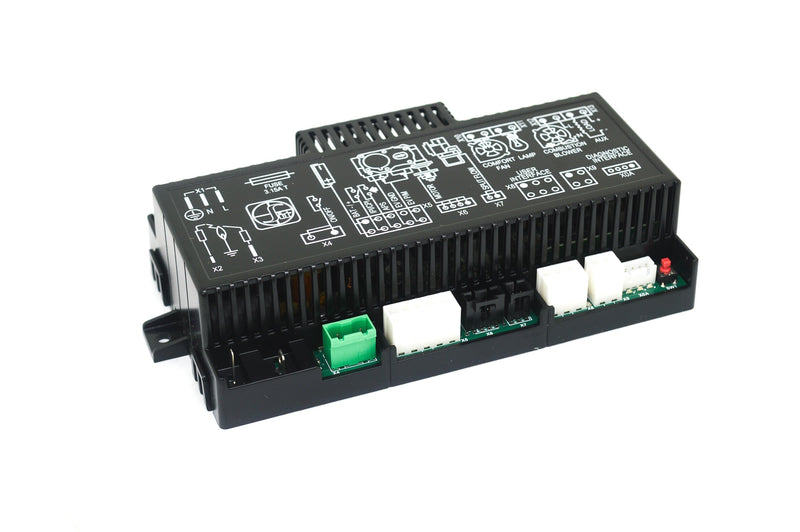

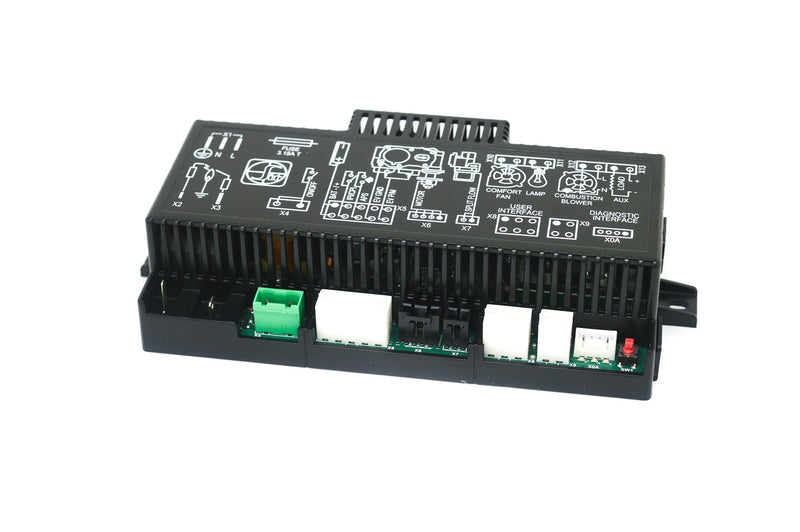

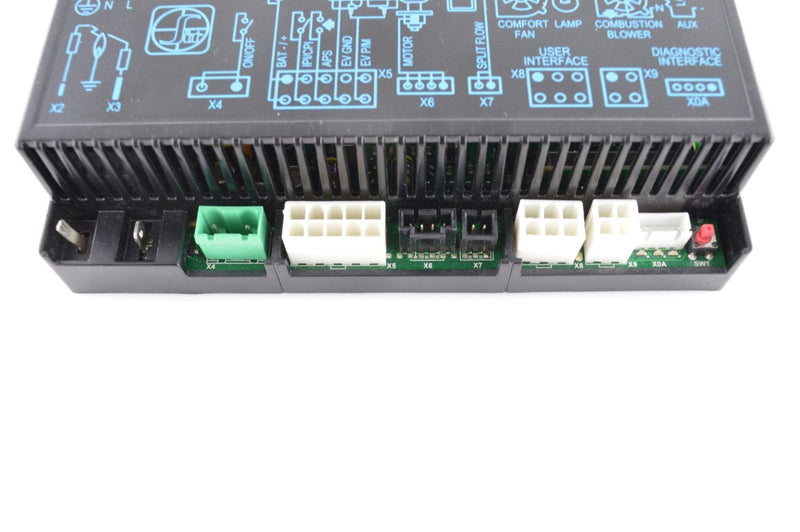

Usually not — but check before you order. Connector X4 on this module is the main burner ON/OFF circuit, and it has to be a closed circuit for the burner to fire. That is done one of two ways: a small jumper wire (the Empire R12270 jumper wire) seated in the green 2-pin block, or an external wall switch wired to X4.
Before you remove your old module, look at the green 2-pin block plugged into X4:
- A small wire looping between the two terminals — that is the jumper. Unplug the block and move it to the new module. Nothing extra to buy.
- Two wires running off to a wall switch — your appliance uses a switch instead. Do not add a jumper; it would leave the main burner permanently enabled and the switch inoperative.
- No block, or a jumper that is missing, corroded, brittle or heat-damaged — add the Empire R12270 jumper wire to your order.
Worth knowing: the X4 block and jumper are a documented failure point. Heat and dirty contacts can cause an intermittent connection that drops the main burner once the fireplace warms up — the same symptom that leads people to replace the control module in the first place. If yours looks at all suspect, replace it while the unit is open.
Cross Reference
Ambiance Fireplaces: 308-6060
American Hearth (Empire): R11523 / R12383
Archgard: 308-6011 / 308-6060
Astria (IHP): H8656 / H8842
Avalon (Travis Industries): 250-02662 / 250-03826
Blaze King: 600.584.326
Brigantia (Archgard): 308-6011 / 308-6060
Continental: W190-0113 / W190-0177- SER / W190-0124 / W190-0124-SER
EMPIRE COMFORT SYSTEMS: R12383
Enviro: 50-3202
Fireplace Xtrordinair (Travis Industries): 250-02662 / 250-03826
Hearthstone: 7211-101
IHP: H8656
Ironstrike (IHP): H8656
Jotul: 157634
Kingsman Fireplaces: 1005-P325si / 1005-P325si / 1005-P325si
Kozy heat: 700-652 / 700-758 / 700-562
Lennox: H8656 / H8842
Lopi (Travis Industries): 250-02662 / 250-03826
Marquis (Kingsman): 1005-P325si / 1005-P325si
Mendota: 05-02-00381
Montigo (Canadian Heating): RGC3018 / RGC3061 / RGC3095
Napoleon: W190-0124 / W190-0113 / W190-0177- SER / W190-0124-SER
Regency (FPI): 911-174
SIT Group: 0.584.306
Superior (IHP): H8656 / H8842
Travis Industries (Avalon - Fireplace Xtrordinair - Lopi): 05-02-00381 / 250-02662 / 250-02662 / 250-03826 / 250-03826
White Mountain Hearth (Empire): R11523 / R12383
Cross-Reference: OEM Part Numbers by Brand (SIT ProFlame 2 IFC Control Module)
The SIT ProFlame 2 IFC control module (SIT 0.584.306) is the same module that fireplace manufacturers sell under their own brand part numbers. Find your fireplace brand below to confirm the matching OEM part number, or open that brand's dedicated product page.
| Brand | OEM Part # | Product Page |
|---|---|---|
| Ambiance Fireplaces | 308-6060 | — |
| American Hearth (Empire) | R11523 / R12383 | View |
| Archgard | 308-6011 / 308-6060 | — |
| Astria (IHP) | H8656 / H8842 | View |
| Avalon (Travis Industries) | 250-02662 / 250-03826 | — |
| Blaze King | 600.584.326 | — |
| Brigantia (Archgard) | 308-6011 / 308-6060 | — |
| Continental | W190-0113 / W190-0177-SER / W190-0124 / W190-0124-SER | — |
| Empire Comfort Systems | R12383 | View |
| Enviro | 50-3202 | — |
| Fireplace Xtrordinair (Travis Industries) | 250-02662 / 250-03826 | — |
| Hearthstone | 7211-101 | — |
| IHP | H8656 | View |
| Ironstrike (IHP) | H8656 | View |
| Jotul | 157634 | — |
| Kingsman Fireplaces | 1005-P325si | — |
| Kozy Heat | 700-652 / 700-758 / 700-562 | — |
| Lennox | H8656 / H8842 | — |
| Lopi (Travis Industries) | 250-02662 / 250-03826 | — |
| Marquis (Kingsman) | 1005-P325si | — |
| Mendota | 05-02-00381 | — |
| Montigo (Canadian Heating) | RGC3018 / RGC3061 / RGC3095 | — |
| Napoleon | W190-0124 / W190-0113 / W190-0177-SER / W190-0124-SER | — |
| Regency (FPI) | 911-174 | — |
| SIT Group | 0.584.306 | View |
| Superior (IHP) | H8656 / H8842 | View |
| Travis Industries (Avalon, Lopi, FPX) | 05-02-00381 / 250-02662 / 250-03826 | — |
| White Mountain Hearth (Empire) | R11523 / R12383 | View |
| Shipping | This item ships to |
| Delivery | Estimated between and . Will usually ship within 1 business day. |
Description
Sit Proflame 2 IFC control module
Do You Also Need the R12270 Jumper?
Usually not — but check before you order. Connector X4 on this module is the main burner ON/OFF circuit, and it has to be a closed circuit for the burner to fire. That is done one of two ways: a small jumper wire (the Empire R12270 jumper wire) seated in the green 2-pin block, or an external wall switch wired to X4.
Before you remove your old module, look at the green 2-pin block plugged into X4:
- A small wire looping between the two terminals — that is the jumper. Unplug the block and move it to the new module. Nothing extra to buy.
- Two wires running off to a wall switch — your appliance uses a switch instead. Do not add a jumper; it would leave the main burner permanently enabled and the switch inoperative.
- No block, or a jumper that is missing, corroded, brittle or heat-damaged — add the Empire R12270 jumper wire to your order.
Worth knowing: the X4 block and jumper are a documented failure point. Heat and dirty contacts can cause an intermittent connection that drops the main burner once the fireplace warms up — the same symptom that leads people to replace the control module in the first place. If yours looks at all suspect, replace it while the unit is open.
Cross Reference
Ambiance Fireplaces: 308-6060
American Hearth (Empire): R11523 / R12383
Archgard: 308-6011 / 308-6060
Astria (IHP): H8656 / H8842
Avalon (Travis Industries): 250-02662 / 250-03826
Blaze King: 600.584.326
Brigantia (Archgard): 308-6011 / 308-6060
Continental: W190-0113 / W190-0177- SER / W190-0124 / W190-0124-SER
EMPIRE COMFORT SYSTEMS: R12383
Enviro: 50-3202
Fireplace Xtrordinair (Travis Industries): 250-02662 / 250-03826
Hearthstone: 7211-101
IHP: H8656
Ironstrike (IHP): H8656
Jotul: 157634
Kingsman Fireplaces: 1005-P325si / 1005-P325si / 1005-P325si
Kozy heat: 700-652 / 700-758 / 700-562
Lennox: H8656 / H8842
Lopi (Travis Industries): 250-02662 / 250-03826
Marquis (Kingsman): 1005-P325si / 1005-P325si
Mendota: 05-02-00381
Montigo (Canadian Heating): RGC3018 / RGC3061 / RGC3095
Napoleon: W190-0124 / W190-0113 / W190-0177- SER / W190-0124-SER
Regency (FPI): 911-174
SIT Group: 0.584.306
Superior (IHP): H8656 / H8842
Travis Industries (Avalon - Fireplace Xtrordinair - Lopi): 05-02-00381 / 250-02662 / 250-02662 / 250-03826 / 250-03826
White Mountain Hearth (Empire): R11523 / R12383
