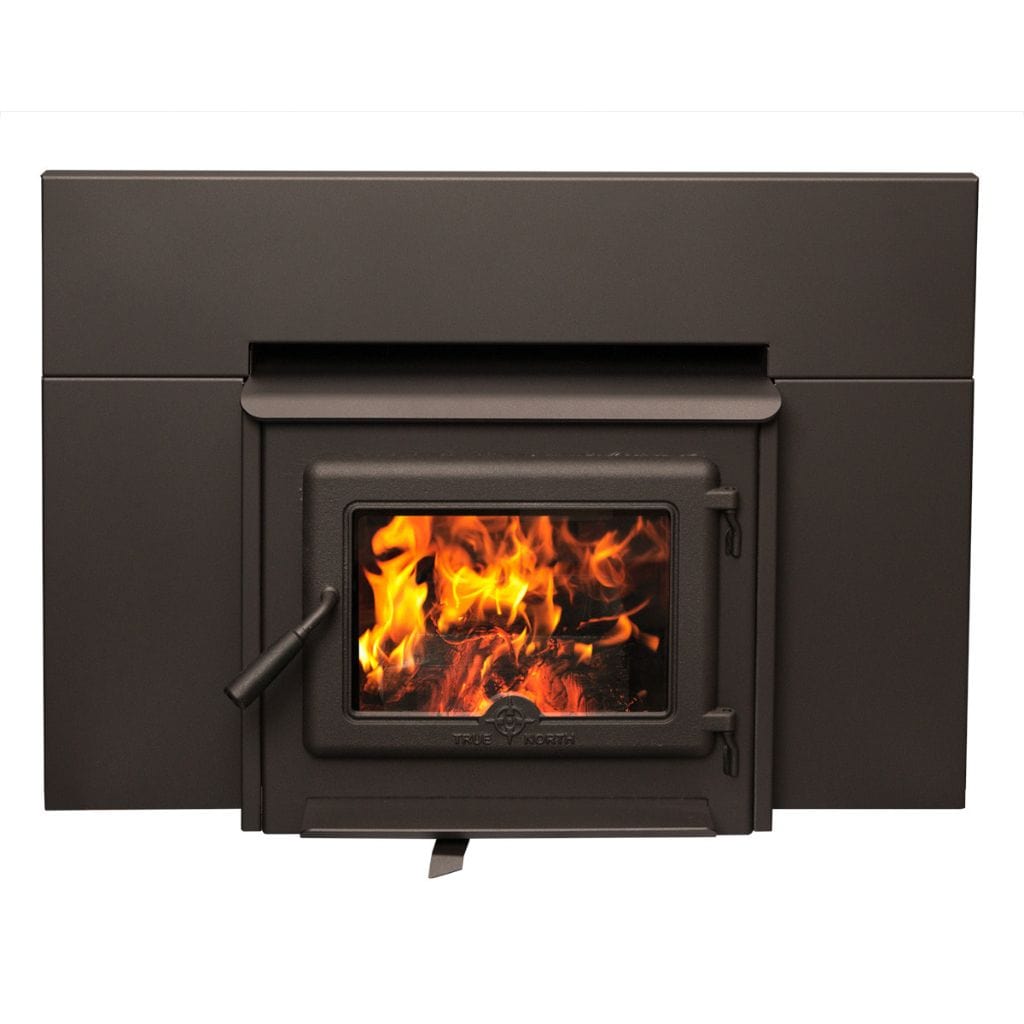

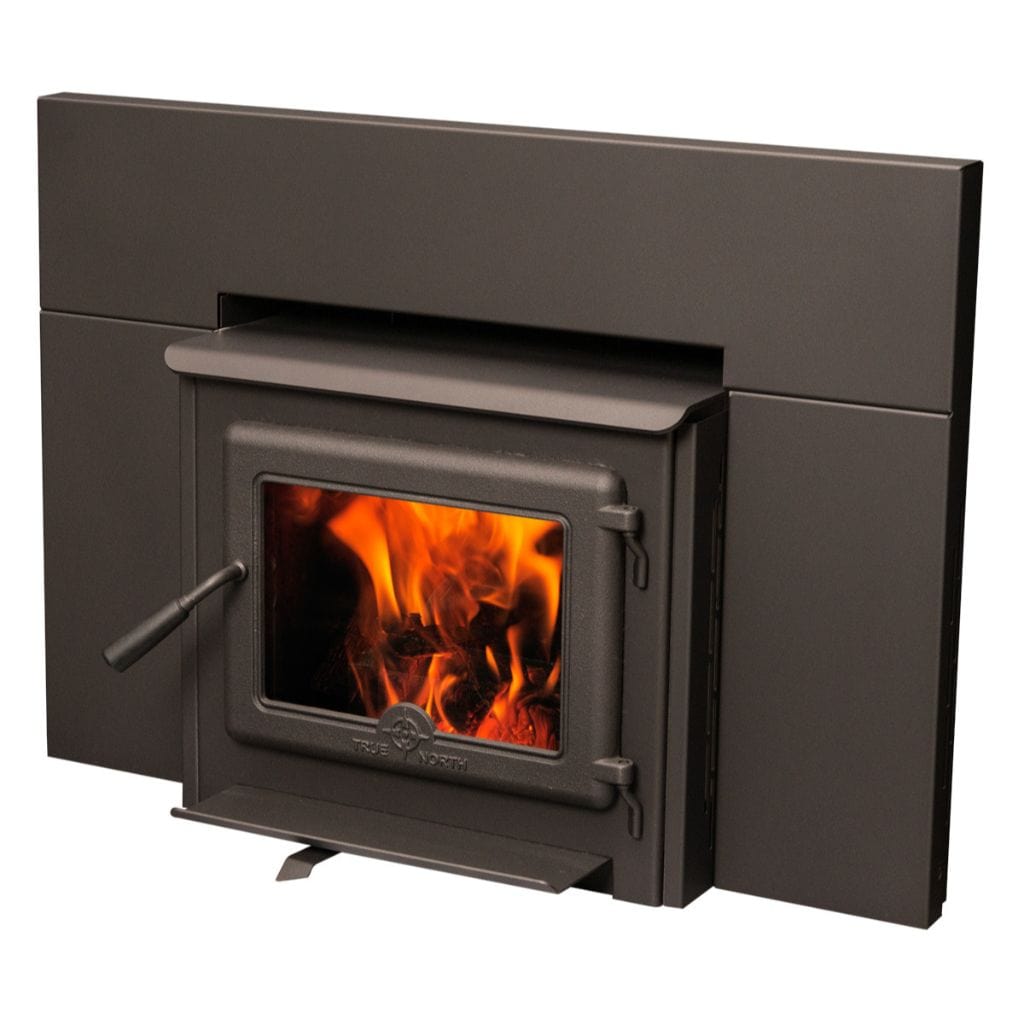

True North TN20 Wood Insert
Convert an existing fireplace into a source of efficient heat with the TN20 Wood Insert. This powerful 2.0 cubic firebox will heat small to medium spaces, burn clean and will offer years of trouble free warmth. The gasketed cast iron door seals the firebox to avoid unnecessary air loss, while clean air-wash technology ensures a full view of the fire while in use.
Technical Data
-
Heat Output Cord Wood (BTU) 55,000 BTU
-
Heat Output EPA (BTU) 13,900-29,200 BTU
-
Efficiency 73% (HHV)
-
Emissions 1.6 g/hr.
-
Firebox Size 2.0 cu.ft.
- Log Size (max.) 18 in.
Standard Features
- EPA 2020 Certified
- Reliable, durable catalytic-free technology
-
Air wash system for super clean ceramic glass
-
Inside and outside combustion air capable
-
Single-Lever Air Control
- Cast iron door
Design Options
-
Oversize surround backing plate
- 2 deep recess oversize surround extension

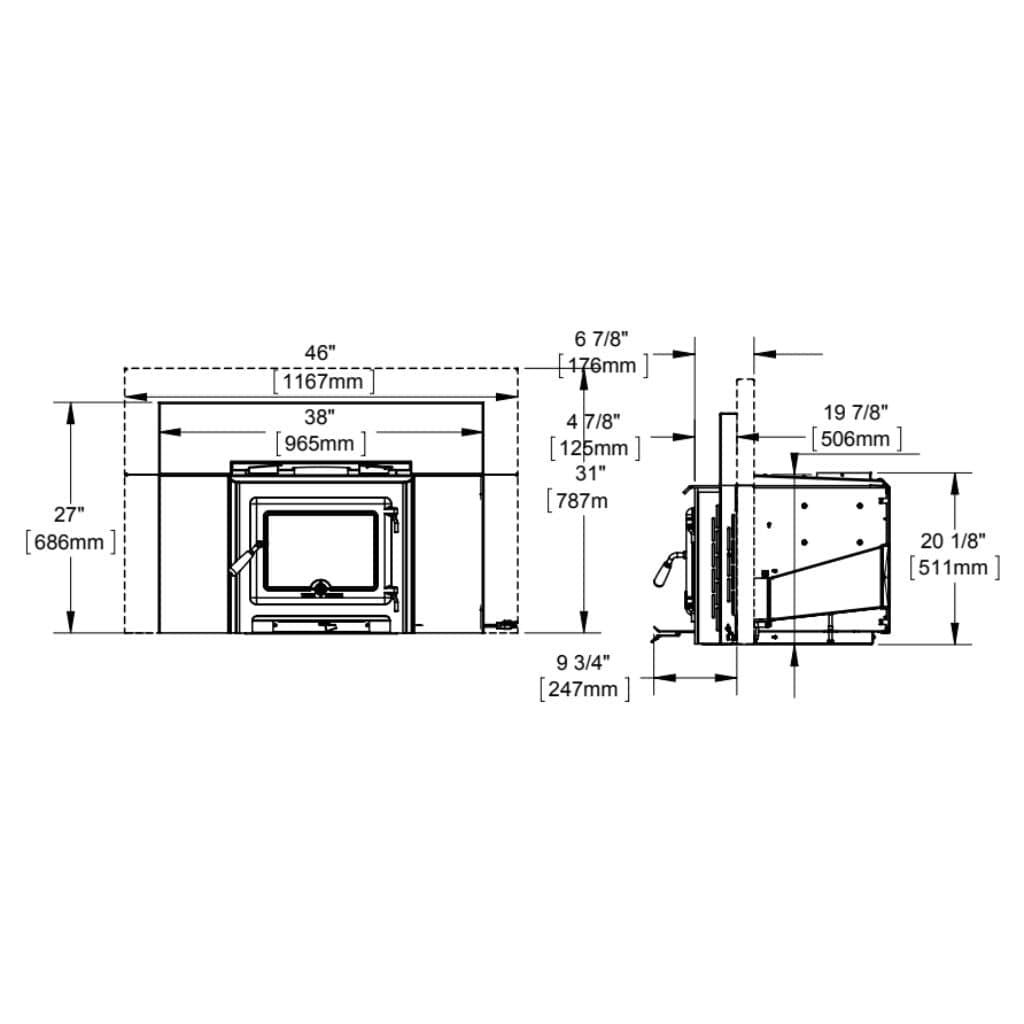

Specifications
| Width | 38" |
| Height | 27" |
| Depth | 19 7/8" |
| Fuel Type | Wood |
| Vent Type | Vented |
| Finish | Black |
| Installation Type | Insert |
| BTU Output | 55,000 |
OPTIONS & ACCESSORIES
|
|
Oversized Backing Plate
|
|
|
Surround Extension
|
Warranty
-
3 years parts (1 year labour)
Firebox, Castings, Glass (glass for thermal breakage only, not impact)
- 1 year parts and labour
Electrical components and switches -
1 year (parts only)
Gaskets, Paint (peeling), Bricks, Baffle tubes, Baffle manifold, Ceramic fibre board
Refer to warranty manual for full details.
Downloads
| Shipping | This item ships to |
| Delivery | Estimated between and . Will usually ship within 1 business day. |
