Valcourt Mundo II Wood Fireplace (including 4 Lengths of 6" X 36" Chimney)

SKU: FP12RK

Great reasons to buy from us:

  • Image of FREE Shipping on Orders over $199

    Free Shipping

    FREE Shipping on Orders over $199
  • Image of 110% Price Match Guarantee

    We will beat any price

    110% Price Match Guarantee
  • Image of In Stock Orders Ship in 24-48 hours

    Fast Shipping

    In Stock Orders Ship in 24-48 hours
  • Image of Up To 20% Off! Don't miss out on this limited time offer!

    Huge Discounts

    Up To 20% Off! Don't miss out on this limited time offer!

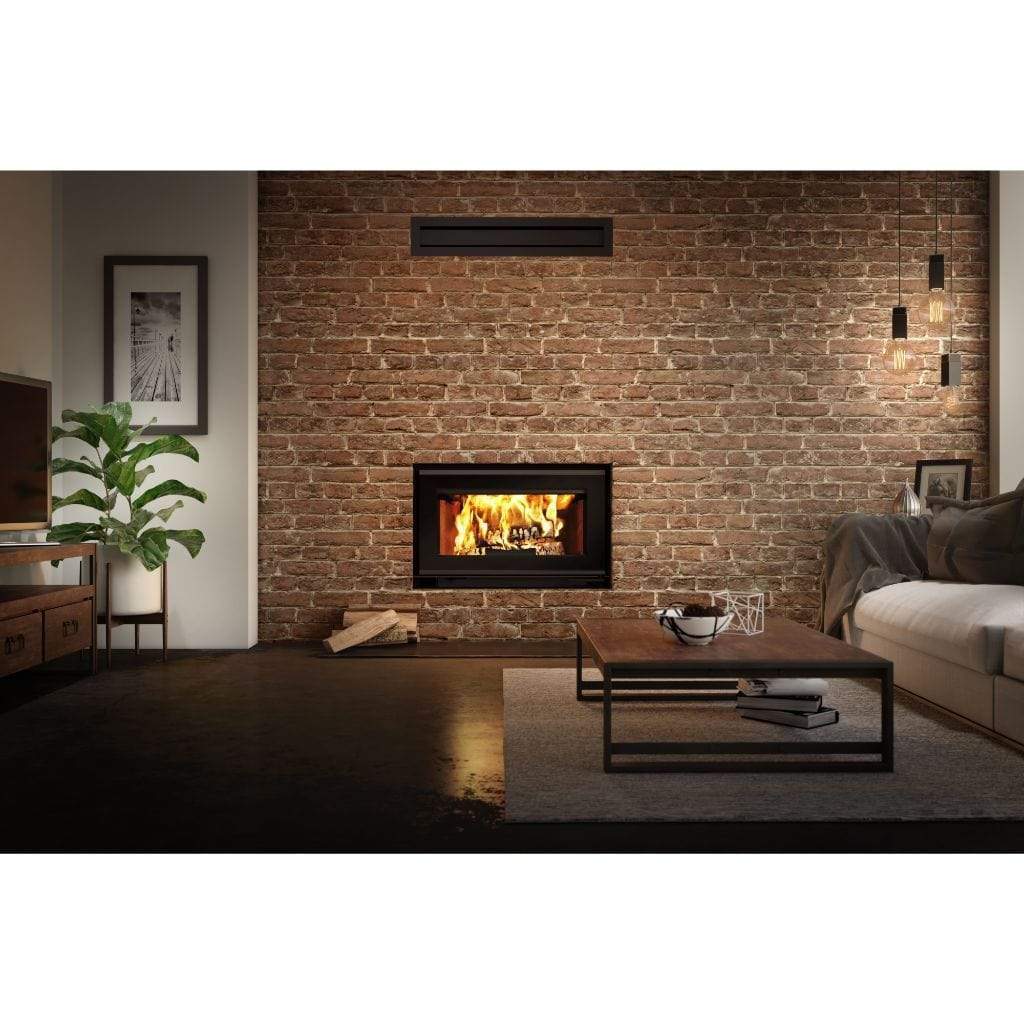

With its straight lines, simplistic shape, and neutral color, Mundo II completely redefines the true nature of wood heating. Its modern design perfectly combines functionality, comfort, and safety. Environmentally friendly, this non-catalytic fireplace is EPA certified with an incredibly low particle emissions rate of only 1.14 g/h despite its 80,000 BTU/h maximum heat output.

Its extra-large clean face glass offers a full view of the flames, entitling you to a truly exceptional show.

The hot air gravity distribution kit available with the Mundo II will allow you to harness all the power from this incredible fireplace while respecting the contemporary lines of your decor. The most serious user can also install a forced air distribution kit which will allow for better and more efficient heat transfers to rooms located further from the fireplace.

Mundo II Wood Fireplace

INSTALLATION AUTHORIZED ON THE ISLAND OF MONTREAL ​WARNING: The forced air distribution kit (AC01363) with heat activated system, can be installed only with the gravity kit - Modern style (AC01389K), sold separately. The installation of a fresh air intake is mandatory on the FP12R. The fresh air intake adaptor is included with the fireplace. The outside air inlet cap; the 2 adjustable straps and the 4” insulated flexible pipe (AC02091-10’L) must be bought separately.

Features

  • 40-5/8 x 50-1/4 x 27
  • Max Log Length: 20”
  • Firebox Volume: 2.5 cu. ft.
  • Recommended Heating Area 1800 - 2900 sq. ft.
  • Avg. Particulate Rate: 1.14 g/h
  • Chimney Diameter: 6”
  • Max Burn Time: 9 hours
  • Combustion Technology Non-catalytic
Heating area : 1,800 - 2,900 Ft2
Maximum heat output : 80,000 BTU/h (23.4 kW)
Efficiency:
Door: Single

Maximum recommended heating area by climate zone See our map

APPROVED FOR THE ISLAND OF MONTREAL

Government incentives may apply to this product.
U.S. Federal Government Extended Wood and Pellet Stove tax Credit (Through December 31, 2020)

Note: The installation of a hot air gravity distribution kit (traditional AC01375 or modern AC01389*, sold separately) is mandatory on the FP12R Mundo II. The price above refers to the configuration of the FP12R fireplace and the AC01375 traditional hot air gravity distribution kit, as shown above.

*The optional forced air distribution kit with a heat-activated system (AC01363), can be installed only with the hot air gravity distribution kit. Modern style (AC01389), both sold separately.

Appliance Performance
Fuel type : Dry cordwood
Recommended heating area (sq.ft.) : () 1,800 - 2,900
Overall firebox volume : 2.5
EPA loading volume (ft³) : 1.69
Maximum burn time : () 9 h
Maximum heat output (dry cordwood) : (2) 80,000 BTU/h (23.4 kW)
Overall heat output rate (min. to max.) : (2) (3) 14,200 BTU/h (4.16 kW) to 48,200 BTU/h (14.13 kW)
Average overall efficiency (EPA cribs / Douglas fir) : (3) N.A. (HHV) (4) N.A. (LHV) (5)
Average overall efficiency (dry cordwood) : (3) 68.0 % (HHV) (4) 73.0 % (LHV) (5)
Optimum efficiency : (6) (7) 74 %
Average particulate emissions rate : (8) 74 %
Average CO : (9) 53 g/h

(1) Values are as measured per test method, except for the recommended heating area, firebox volume, maximum burn time and maximum heat output.

(2) The maximum heat output (dry cordwood) is based on a loading density varying between 15 lb/ft³ and 20 lb/ft³. Other performances are based on a fuel load prescribed by the standard. The specified loading density varies between 7 lb/ft³ and 12 lb/ft³. The moisture content is between 19% and 25%.

(3) As measured per CSA B415.1-10 stack loss method.

(4) Higher Heating Value of the fuel.

(5) Lower Heating Value of the fuel.

(6) Performances based on a fuel load prescribed by the standard at 7 lb/ft³ and with a moisture content between 19% and 25%.

(7) Optimum overall efficiency at a specific burn rate (LHV).

(8) This appliance is officially tested and certified by an independent agency.

(9) Carbon monoxyde.

General Features
Combustion technology Non-catalytic
High-efficiency EPA certified appliance Yes, EPA 2020 approved
Maximum log length 20"
Log positioning Over width
Chimney diameter 6"
Flue outlet diameter 6"
Type of chimney CAN/ULC S629, UL 103 HT (2100 °F)
Minimum chimney height (feet) 15'
Baffle type C-Cast
Approved for a mobile home installation No
Door type Single, glass with steel frame
Glass type Ceramic glass
Glass surface – dimensions (Width X Height) 26 1/8" X 13 3/8"
Glass air-wash system Yes
Overall dimension (Height) 40 5/8"
Overall dimension (Width) 50 1/4"
Overall dimension (Depth) 27"
Door opening – dimension (Height) 10 3/8"
Door opening - dimension (Width) 25 3/8"
Firebox – dimension (Height) 12 1/8"
Firebox – dimension (Width) 20 3/8"
Firebox – dimension (Depth) 12 7/8"
Moulded refractory bricks Yes
Stainless-steel secondary-air system improving gas combustion Yes
USA standard (emissions) EPA
Canadian Standard (emissions) CSA B415.1-10
USA standard (safety) UL 127
Canadian standard (safety) ULC-S610
Tested and listed as per applicable standards By an accredited laboratory (CAN/USA)
Warranty Limited lifetime
Approved Chimney Types
Manufacturiers* Brand Type Diameter
American Metal HSS AC Triple Wall 6" (15 cm)
American Metal HS AC Triple Wall 6" (15 cm)
DuraVent DuraTech 1" Solid Pack 6" (15 cm)
DuraVent DuraTech Canada (DTC) 1" Solid Pack 6" (15 cm)
DuraVent DuraPlus HTC 2" Solid Pack 6" (15 cm)
DuraVent DuraTech Premium 2" Solid Pack 6" (15 cm)
DuraVent DuraPlus AC Triple Wall 6" (15 cm)
Metal Fab Temp Guard 1" Solid Pack 6" (15 cm)
Olympia Chimney Champion Chimney System 1" Solid Pack 6" (15 cm)
Olympia Chimney Rockford Chimney Systems 1" Solid Pack 6" (15 cm)
Olympia Chimney/SBI Venting Division Ventis 1" Solid Pack 6" (15 cm)
SBI Venting Division Nexvent 1" Solid Pack 6" (15 cm)
Security Chimney S-2100 + 2" Solid Pack 6" (15 cm)
Selkirk CF Sentinel (CF) 2" Solid Pack 6" (15 cm)
Selkirk Super Pro 2100 (ALT) 2" Solid Pack 6" (15 cm)
Selkirk Super Vent 2100 (JM) 2" Solid Pack 6" (15 cm)

* Specific components may be required depending on the chimney manufacturer.

Minimum clearances to combustibles*
(Data expressed in inches. 1 inch = 25.4 mm)
Canada United-States
Clearance – top (measured from the platform on which the appliance is installed)** 76" 76"
Clearance – combustible side mantle to unit 8" 8"
Clearance – combustible side wall to unit 13" 13"
Clearance – top shelf to unit 48" 48"

* The information given on the certification label affixed to the appliance always overrides the information published in any other media (owner's manual, catalogues, flyers, magazines and/or web sites).

** Some appliances have been tested with a low ceiling. Before setting up your unit, refer to the installation manual.

Options and Accessories

Click to see Options and Accessories

Hot Air Gravity Distribution Kit – Modern With Adjustable Pipes - AC01389K

Hot Air Gravity Distribution Kit - Traditional - AC01375

4''Ø Fresh Air Intake Register With Airtight Damper - AC01347

Chase Reduction Kit - AC01224

Forced Air Distribution Kit - AC01363

Fireplace Carrying Handle Kit - AC09200

4''Ø X 10' Insulated Flex Pipe for Fresh Air Intake Kit - AC02091

Fire Screen Door - AC01275

Metallic Black Finishing Trim - VA12FL02

Documents & Files

  • Fresh Air Intake Register Manual
  • Chase Reduction Kit Manual
  • Firescreen Door Manual
  • Fireplace Carrying Handle Kit Manual
  • Forced Air Distribution Kit Manual
