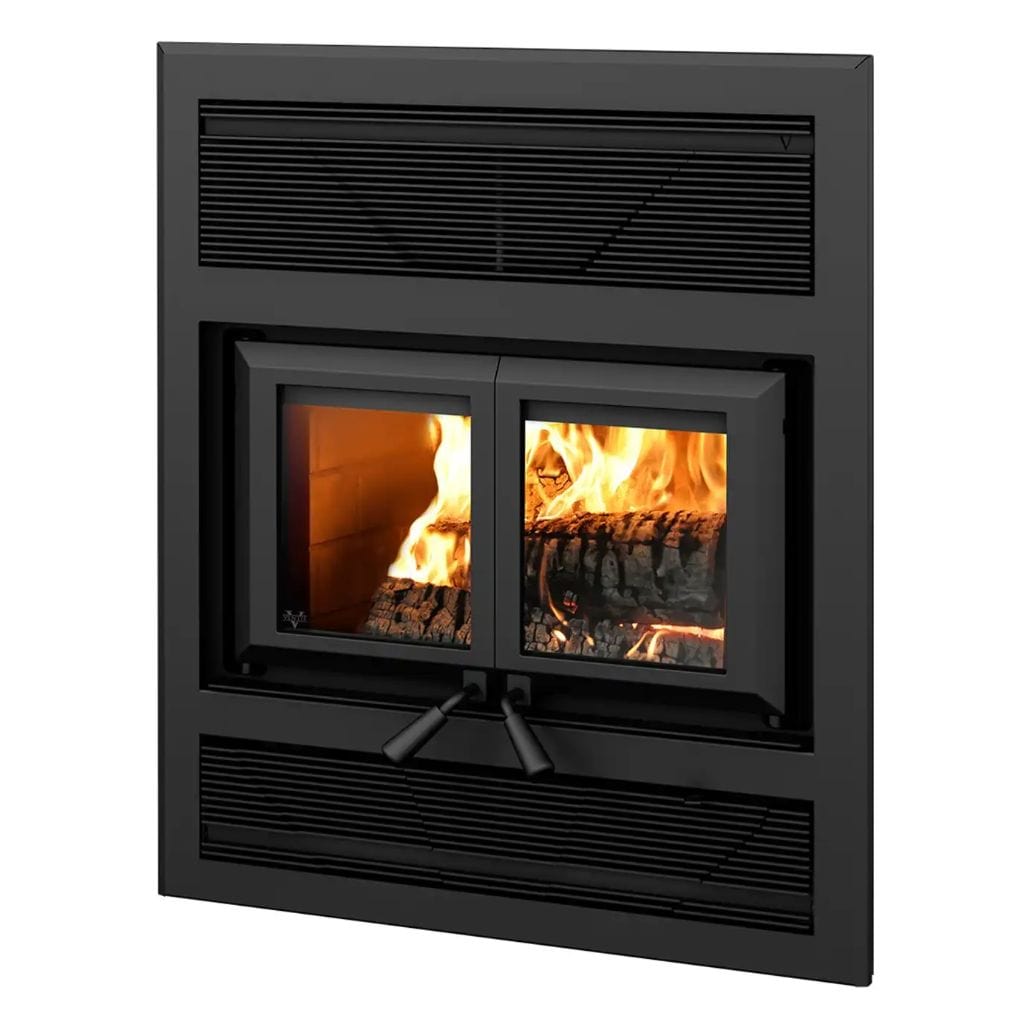

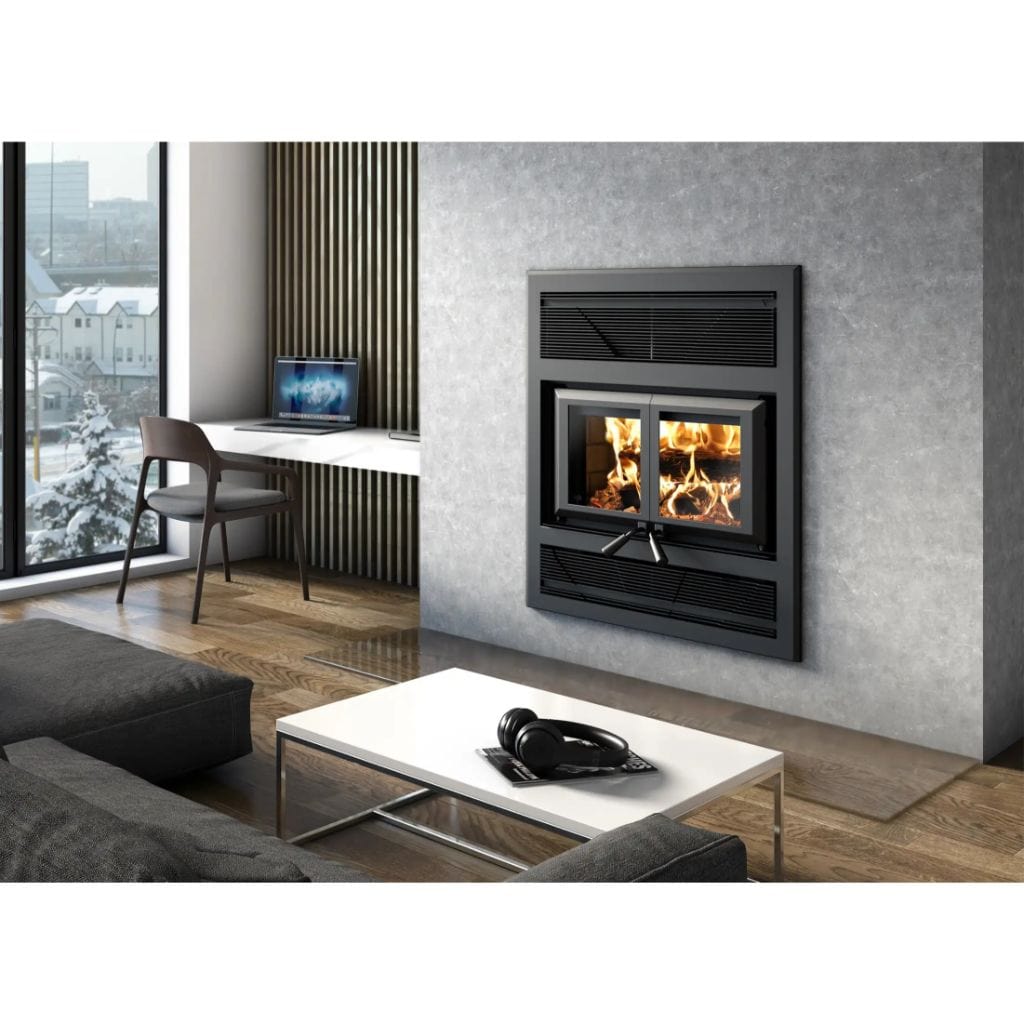

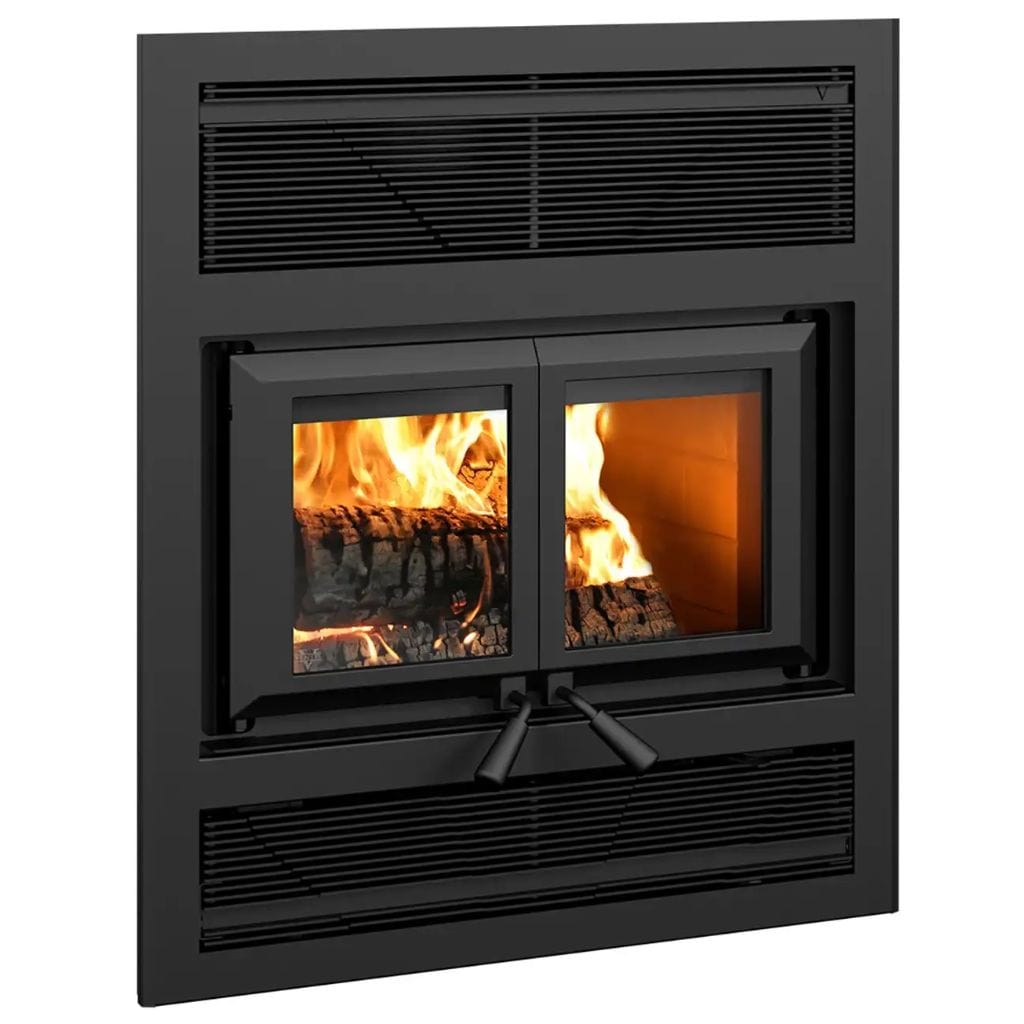

Ventis HE325 Zero Clearance Wood Burning Fireplace is the perfect combination of style and high efficiency, EPA certified and low emission rate is another advantage. It has a 3 cubic foot firebox capable of handling up to 18-Inch log and produces up to 85,000 BTUs. Non-catalytic combustion technology for a clean burn and heats up to 2,500 square feet with a maximum burn time 9 hours.
-
Designed mainly for heating
-
Large, high-efficiency fireplace among the most powerful on the market
-
Retractable double doors for an unrivaled experience
-
EPA 2020 certified
-
Non-catalytic combustion technology
-
Installation authorized on the Island of Montreal
-
Firestop made of high density insulation board
-
Ventis distinctive louvers
-
176 CFM blower included
-
Molded refractory stones
-
6" Ventis stainless steel anchor plate included
- Fresh air intake adapter included
Required Option:

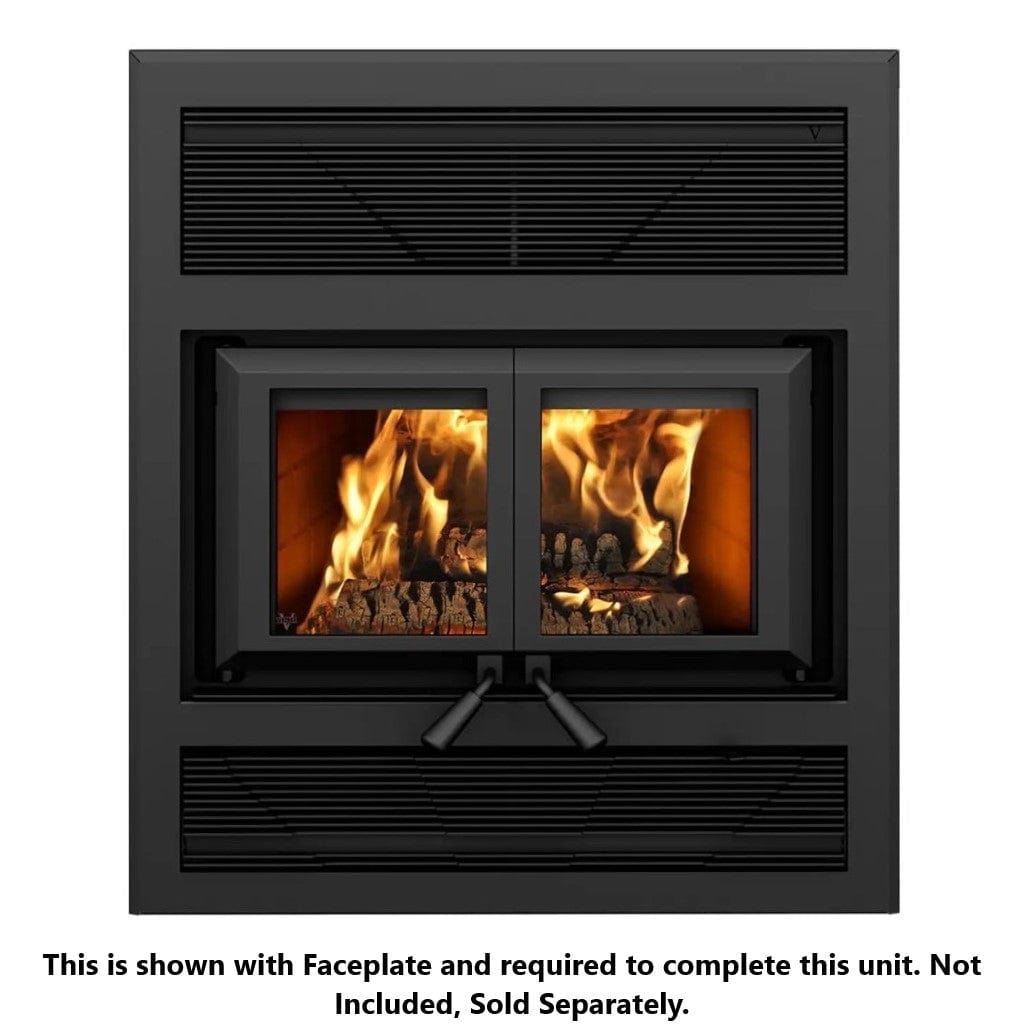

- (VBA1570) Faceplate required to complete this unit. Not Included, Sold Separately.
CA Residents: See Prop 65 WARNING.
Appliance Performance
| Fuel type | Dry cordwood (16" recommended) |
| Recommended heating area | 750 - 2,500 ft² |
| Overall firebox volume | 3.0 ft³ |
| EPA loading volume | 2.61 ft³ |
| Maximum burn time | 9 Hours |
| Maximum heat output-dry cordwood | 85,000 BTU/h |
| Minimum overall heat output rate | 18,057 BTU/h (5.29 kW) |
| Maximum overall heat output rate | 49,654 BTU/h (14.55 kW) |
| Average efficiency-dry cordwood (HHV) | 65.7 % |
| Average efficiency-dry cordwood (LHV) | 70.8 % |
| Optimum efficiency | 72 % |
| Optimum heat transfer efficiency | 68 % |
| Average particulate emission rate | 0.99 g/h |
| Average CO | 50.1 g/h |
- Performances based on a fuel load prescribed by the standard at 7 lb/ft³ and with a moisture content between 19% and 25%.
- Optimum overall efficiency at a specific burn rate (LHV).
- This appliance is officially tested and certified by an independent agency.
- The maximum heat output (dry cordwood) is based on a loading density varying between 15 lb/ft³ and 20 lb/ft³. Other performances are based on a fuel load prescribed by the standard. The specified loading density varies between 7 lb/ft³ and 12 lb/ft³. The moisture content is between 19% and 25%.
- As measured per CSA B415.1-10 stack loss method.
- Higher Heating Value of the fuel.
- Lower Heating Value of the fuel.
- The optimum heat transfer efficiency is for the low burn rate (using HHV) and represents the appliance’s ability to convert the energy contained in the solid fuels into energy transferred to the room in the form of heat and does not take into account the chemical losses during combustion.
- Recommended heating area and maximum burn time may vary subject to location in home, chimney draft,heat loss factors, climate, fuel type and other variables. The recommended heated area for a given appliance is defined by the manufacturer as its capacity to maintain a minimum acceptable temperature in the designated area in case of a power failure.
- Carbon monoxyde.
General Features
| Premium quality blower included (CFM) | 176 CFM included |
| Certified according to applicable standards | CAN/USA accredited laboratory |
| Combustion technology | Non-catalytic |
| Stainless-steel secondary-air system | Yes |
| Flue outlet diameter | 6" |
| Recommended chimney diameter | 6" |
| Type of chimney | CAN/ULC S629, UL 103 HT (2100 °F) |
| Minimum chimney height | 15" |
| Overall dimension (Width) | 41 3/4" |
| Overall dimension (Height) | 49 1/8" |
| Overall dimension (Depth) | 28 7/8" |
| Door type | Single, glass with cast iron frame |
| Door opening size (Width) | 20 3/4" |
| Door opening size (Height) | 10 1/4" |
| Glass type | Ceramic glass |
| Glass surface - W x H | 18 3/4" x 11" |
| Firebox size (Width) | 18 7/8" |
| Firebox size (Height) | 16 7/8" |
| Firebox size (Depth) | 17" |
| Maximum log length | 18" |
| Log positioning | Loading over width |
| Baffle type | Ceramic panel |
| High-efficiency certified appliance | Yes, EPA 2020 approved |
| Canadian Standard (emissions) | CSA B415.1-10 |
| USA Standard (emissions) | EPA |
| Canadian Standard (safety) | ULC S610 |
| USA Standard (safety) | UL 127 |
| Shipping weight | 530 lb (240 kg) |
OPTIONS & ACCESSORIES
|
|
Traditional Style Faceplate (VBA1570)
|
|
|
4-Inch Fresh Air Intake Adapter
|
|
|
Traditional Hot Air Gravity Kit
|
|
|
Firescreen Door
|
|
|
Fireplace Carrying Handle Kit
|
|
|
Forced Air Kit
|
|
|
6" x 25' Insulated Flex Pipe
|
Warranty
- Limited lifetime warranty.
Downloads
- Download Product Catalogue
- Download Appliance Dimensions
- Download Installation and Operation Manual
- Fresh Air Intake Adapter Installation Instructions
